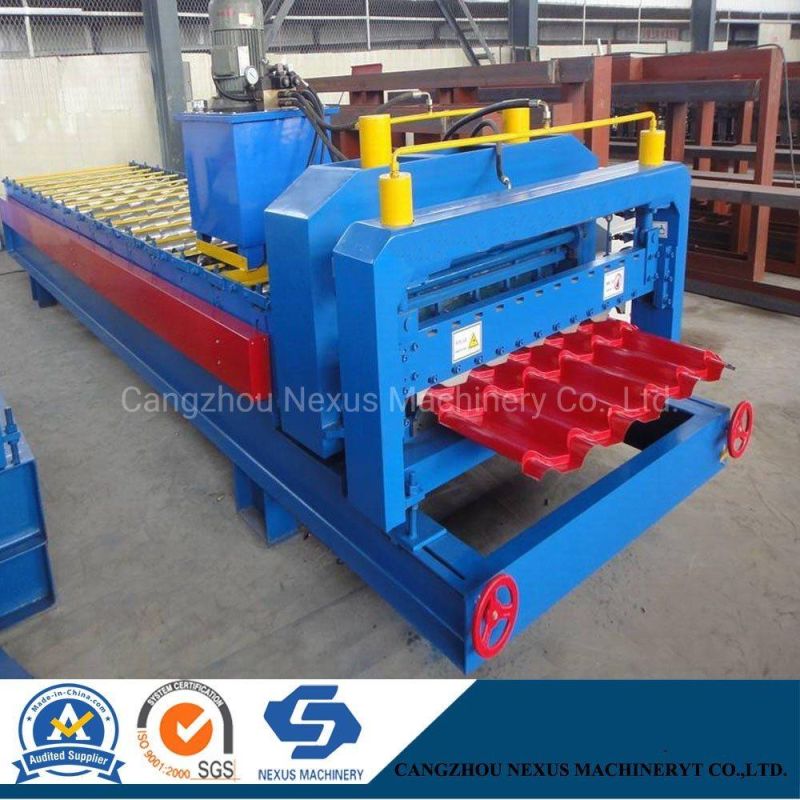

Glazed Tile Sheet Roll Forming Machine Metal Roofing Tile Making Machinery
Cangzhou Nexus Machinery Co., Ltd.- After-sales Service：Provide Overseas Service
- Warranty：1 Year
- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Model NO.：NM403
- Usage：Roof, Wall
- Transmission Method：Electric
- Product Name：Metal Roofing Tile Making Machinery
- Raw Material：PPGI Sheet
- Thickness Range：0.3-0.8mm
- Machine Power：5.5kw+3kw
- Roll Forming Station：16 Stations
- Machine Weight：About 5 Tons
- Drive Type：Chain Transmission
- Shearing Type：Hydraulic
- PLC Operation：Touching Screen
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：6500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description
Manual decoilerCapacity 5ton Feeding width MAX 1300mm Expanding range 460-520mm Main motor power 5.5kw Drive 1'' single chain Type: Wall board Main shaft dia ¢70mm material 45# forge steel and quenched Roller material 45# high grade forge steel ,chrome coated 0.05mm Roll station 16 groups Raw material 0.3-0.8mm Coil width 1000mm Working speed 3m--5m/min(Exclude cutting time) Length Tolerance ±1.5mm Weight of machine About 5 ton Size of machine About 7500×1800×1500mm L x W x H Color of machine Yellow and Blue Coder Omron, made in Japan Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) Computer operating panel touching screen Cutting Hydraulic cutting. Auto cutting when reach the set length Hydraulic power 3KW Blade material Cr12mov,quenched 58°-62° Working pressure 16mpa Cutting tolerance +/- 1.0mm
4. Equipment list :
5. Character of main structure:
More Hot-Sale Products for your Choice:
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
FAQ:
1. How long the machine could be made?- Normally speaking, stacker machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | Glazed Tile Sheet Roll Forming Machine Metal Roofing Tile Making Machinery (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |
5. Character of main structure:
- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
- It is very easy to install the equipment and suitable for producing in the factory.
- Low noise with high efficiency.
