Building Material Making Machinery

Home > Product > Window & Door Making Machine

Arch Aluminum Window Bending Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Warranty：1 Year
  • Condition：New

Base Info

  • Model NO.：LYH-CNC-200
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC
  • Voltage：380V
  • Input Voltage：380 50Hz
  • Input Power：3.0kw
  • Air Pressure：0.4~0.6MPa
  • Air Consumption：120L,Min
  • Min. Bending Radius：230mm
  • Roller Diameter：60mm
  • Roller Rotation Speed：1-8r,Min
  • Max. Width：200mm
  • Hydraulic Pressure：20t(200MPa)
  • Overall Dimension：1900×1100×1300mm
  • Transport Package：Plastic Cover or Plywood Cases
  • Trademark：YUEFENG
  • Origin：Jinan, Shandong, China
  • HS Code：3925200000
  • Production Capacity：100 Sets Per Month
  • Package size per unit product：68.00cm * 68.00cm * 68.00cm
  • Gross weight per unit product：500.000kg

Description

Basic Info.

Model NO. LYH-CNC-200 Certification ISO, CE Automatic Grade Automatic CNC or Not CNC Voltage 380V Input Voltage 380 50Hz Input Power 3.0kw Air Pressure 0.4~0.6MPa Air Consumption 120L/Min Min. Bending Radius 230mm Roller Diameter 60mm Roller Rotation Speed 1-8r/Min Max. Width 200mm Hydraulic Pressure 20t(200MPa) Overall Dimension 1900×1100×1300mm Transport Package Plastic Cover or Plywood Cases Trademark YUEFENG Origin Jinan, Shandong, China HS Code 3925200000 Production Capacity 100 Sets Per Month

Packaging & Delivery

Package size per unit product 68.00cm * 68.00cm * 68.00cm Gross weight per unit product 500.000kg

Product Description

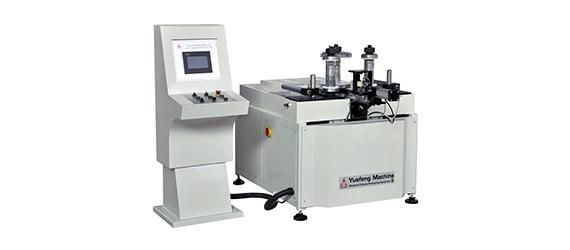

CNC rolling machine for ARC window and door makingArch Aluminum Window Bending Machine1,The machine applies to bending several kinds of metal profiles to appears arc shape, such as iron, copper and aluminium.
2,Adopts special arc-processing software, can detect the data of rebound, and then eliminate the rebound.
3,It can make shapes of ellipse, circle and "C", "U" shapes etc.
4,Adopts computer control system, the location precision is less than 0.01mm.

Technical Parameter:

Input voltage380 50Hz
Input power3.0Kw
Air pressure0.4~0.6MPa
Air consumption120L/min
Min. bending radius230mm
Roller diameter60mm
Roller rotation speed1-8r/min
Max. width200mm
Hydraulic pressure20T(200MPa)
Overall dimension1900×1100×1300mm
  Arch Aluminum Window Bending Machine
Arch Aluminum Window Bending Machine
Arch Aluminum Window Bending MachineArch Aluminum Window Bending Machine

RFQ:

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
