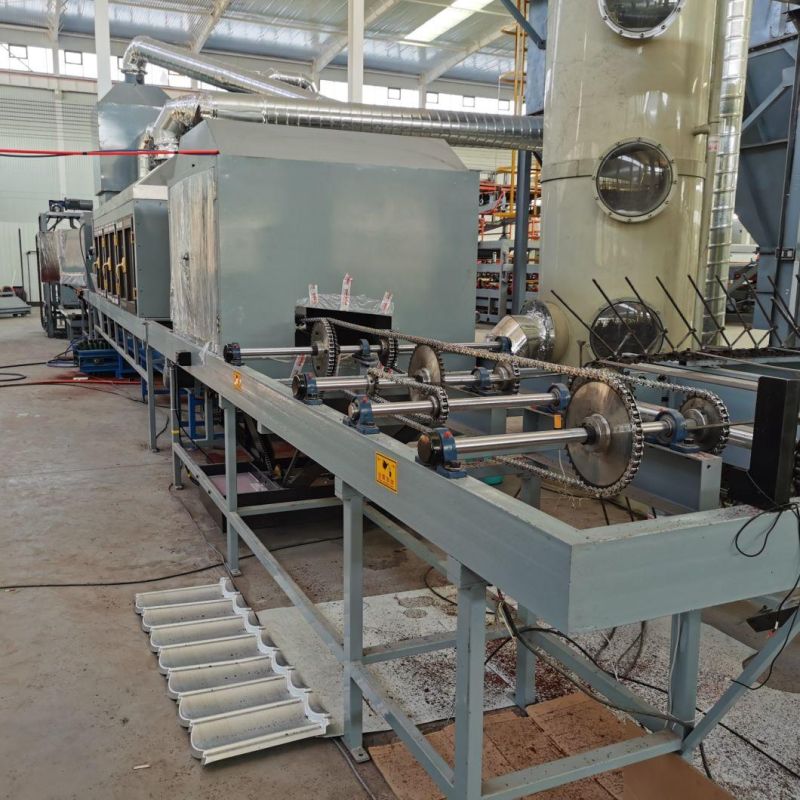

Colored Stone Coated Roof Tile Production Line
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- After-sales Service:Door to Door
- Warranty:One Year
- Tile Type:Colored Steel
- Certification:CE, ISO
- Condition:New
- Customized:Customized
Base Info
- Model NO.:XN-SC-01
- Usage:Roof
- Transmission Method:Machinery
- Transport Package:Simple Plastic Film Protection
- Specification:65*1.0*1.5m
- Trademark:Xinnuo
- Origin:Hebei China
- HS Code:84243000
- Production Capacity:30 Sets Per Month
Description


C.Technical Parameters
Product introduce
1.Automatic Bottom glue spraying equipment
Outside dimension:4000*1350*850(L*W*H)
Structure:channel steel,welded
Transmisson:2.2kw variable-frequency adjustable-speed motor 0-32R/mim
Conveying device:Reciprocating chain conveys
Automatic glue spraying assembly: with motor:0.06kw
Adsorption of dust removal equipment:1 set
Air compressor:1 set 0.9m
Automatic pressure glue canister:1 set Range of adjustable pressure:0.1-0.6Mpa
Automatic glue spraying gun:4 sets
Fill glue gun: 5 sets
Glue gun stand:1 set
2.Automatic Sandblasting Room
Outside dimension:3000*1850*700(L*W*H)
Structure:channel steel,angle steel,welded
Transmisson:with glue spraying equipment compound chain transmit
Conveying device:compound chain transmit
Automatic sand hopper:1 set dimension 550*600*500m
Automatic rising machine:1 set. Rising height:1.9m Power:300kg/h
Sand-blasting gun:4 sets
3.First Drying Room
Outside Dimension:25000*800*1200mm(L*W*H)
Structure:carbon steel welded
Frame type heat preservation wall:-fill up with heat preservation material which is bended with 1mm carbon steel
Automatic temperature controller:2 sets,Range of adjustable temperature:0-160°
Infrared fluorescent tube:50 pcs
Conveying device-:Reciprocating chain conveys
Cooling device:1 set
4.Automatic Surface Glue Spraying Equipment
Outside Dimension: 3000*850*700mm(L*W*H)
Structure: carbon steel welded
Automatic glue spraying assembly: 1 set Range of pressure:0.1-0.6 MPa
Adsorption of dust removal equipment: 1 set
Manual spraying gun: 5 sets
5.Second Drying Room Equipment Component
Outside Dimension: 3000*850*700mm(L*W*H)
Structure: carbon steel welded
Frame type heat preservation wall:30m. fill up with heat preservation material which is bended with 1mm carbon steel
Conveying device-:Reciprocating chain conveys
Infrared fluorescent tube:50 pcs
Automatic temperature controller:2 sets,Range of adjustable temperature:0-160°
Conveying device: Reciprocating connection conveys 30 m
Cooling device:1 set
Automatic printing code and marking:1 set of automatic printer
Total equipment matches total control station:1 set(control system)
Productivity:3-6m/min calculate as 1.2m per piece, eight hours, produce 1500pcs everyday
Whole machine power:113kw
