• Model NO.：ZK
• Type：Ore Grinder
• Rotationl Speed：According to Your Special Requirements
• Materials：Ores
• Motor Power：According to Your Special Requirements
• Installation：Under Our Engineer′s Guide
• Weight of Ball：1.5t
• Certificate：ISO9001: ISO14000
• Model：1200*2400
• Transport Package：According to Your Special Requirements
• Specification：ISO9001, ISO14000, CE
• Trademark：ZK
• Origin：Zhengzhou, China
• Production Capacity：Reference to The Form

Basic Info.

Model NO. ZK Type Ore Grinder Rotationl Speed According to Your Special Requirements Materials Ores Motor Power According to Your Special Requirements Installation Under Our Engineer′s Guide Weight of Ball 1.5t Certificate ISO9001: ISO14000 Model 1200*2400 Transport Package According to Your Special Requirements Specification ISO9001, ISO14000, CE Trademark ZK Origin Zhengzhou, China Production Capacity Reference to The Form

Product Description

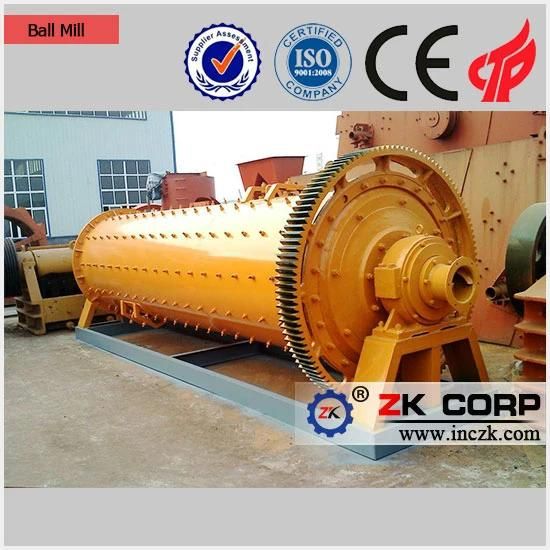

Horizontal Ball Mill Used in Mining IndustryBall Mill Application:
1.Energy-Saving Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns.
2.To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced.
3.Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills.
4.Ball mill is an efficient tool for grinding many materials into fine powder.
5.The ball mill is used to grind many kinds of mine and other materials, or to select the mine.
6.Ball mill is widely used in building material, chemical industry, etc.
7.There are two ways of grinding: the dry process and the wet process.
8.It can be divided into tabular type and flowing type according to different forms of discharging material.

 Ball Mill Working Principle:
1.The Energy-Saving Ball Mill is a horizontal rotating device transmitted by the outer gear.
2.The materials are transferred to the grinding chamber from ball mill through the quill shaft uniformly.
3.There are ladder liner and ripple liner and different specifications of steel balls in the chamber.
4.The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
5.The ground materials are discharged through the discharging board thus the grinding process is finished.


Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com/ & http://hnzkjq.en.made-in-china.com/
24-hour Free Sales Consulting Phone: 0086-371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com
Rotary Kiln: http://hnzkjq.en.made-in-china.com
Preheater: http://hnzkjq.en.made-in-china.com
Cement Mill: http://hnzkjq.en.made-in-china.com
Rotary Dryer: http://hnzkjq.en.made-in-china.com
Raw Mill: http://hnzkjq.en.made-in-china.com
Ball Mill: http://hnzkjq.en.made-in-china.com

type	Rotational Speed(r/min)	balls weight(t)	feeding size(mm)	discharging size(mm)	(output)t/h	motor power(kw)	weight(t)
Φ 900× 1800	38	1.5	≤ 20	0.075-0.89	0.65-2	18.5	3.6
Φ 900× 2100	38	2.7	≤ 20	0.075-0.83	0.7-3.5	22	3.9
Φ 900× 3000	38	2.7	≤ 20	0.075-0.89	1.1-3.5	22	4.5
Φ 1200× 2400	32	3.8	≤ 25	0.075-0.6	1.5-4.8	45	11.5
Φ 1200× 4500	32	7	≤ 25	0.074-0.4	1.6-5.8	55	13.8
Φ 1500× 3000	27	8	≤ 25	0.074-0.4	2-5	90	17
Φ 1500× 4500	27	14	≤ 25	0.074-0.4	3-7	110	21
Φ 1500× 5700	27	15	≤ 25	0.074-0.4	3.5-8	132	24.7
Φ 1830× 3000	24	18	≤ 25	0.074-0.4	4-10	180	28
Φ 1830× 7000	24	25	≤ 25	0.074-0.4	7.5-17	245	36
Φ 2200× 5500	21	30	≤ 25	0.074-0.4	10-22	370	48.5
Φ 2200× 6500	21	31	≤ 25	0.074-0.4	14-26	380	52.8
Φ 2200× 7500	21	33	≤ 25	0.074-0.4	16-29	380	56
Φ 2400× 4500	21	30	≤ 25	0.074-0.4	8.5-60	320	65
Φ 2700× 3600	20.6	39	≤ 25	0.074-0.4	12-70	400	91.3
Φ 2700× 4000	20.7	40	≤ 25	0.074-0.4	12-80	400	94
Φ 2700× 4500	20.7	48	≤ 25	0.074-0.4	12-90	430	102
Φ 3200× 4500	18	65	≤ 25	0.074-0.4	12-100	800	137
