• Model NO.：CLJB2-350*3500
• Rotary Speed：3200r,Min
• Air Consumption：30L,Min
• Cutting Length：290-3500mm
• Cutting Width：200mm
• Cutting Height：100mm
• Cutting Angle：45-135 Degree
• Machine Dimension：4000*1120*1450mm
• Weight：600kg
• Transport Package：Wooden
• Specification：Saw blade diameter 450mm
• Trademark：Truepro
• Origin：China
• HS Code：846150
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLJB2-350*3500 Rotary Speed 3200r/Min Air Consumption 30L/Min Cutting Length 290-3500mm Cutting Width 200mm Cutting Height 100mm Cutting Angle 45-135 Degree Machine Dimension 4000*1120*1450mm Weight 600kg Transport Package Wooden Specification Saw blade diameter 450mm Trademark Truepro Origin China HS Code 846150 Production Capacity 500sets/Year

Product Description

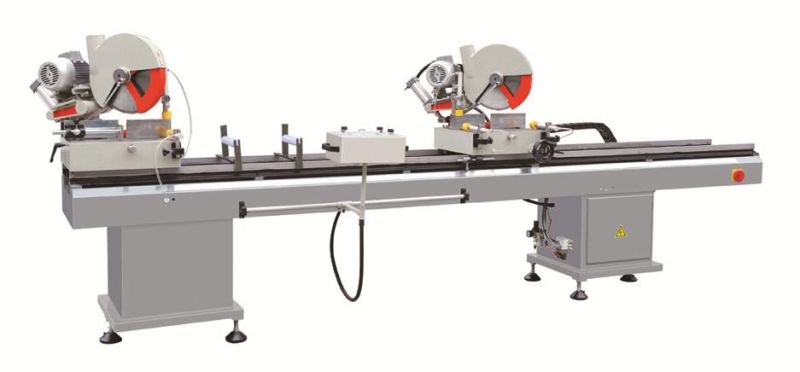

               Arbitrary cutting double mitre saw for PVC profile

Machine feature:
1.Two heads work independently or together.
2.Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
3.Used for cutting aluminum and PVC profiles at 45°~90° any angle.
4.The right machine head can be adjusted horizontally by the motor.
Parameter:

Model	CLJZB2-350*3500
Input power	2*1.1Kw
Power supply	380V/50Hz
Air pressure	0.4~0.6MPa
Air consumption	30L/min
Saw Blade Specification	φ350*30
Cutting angle	-45~90~45 degree any angle
Cutting width*height	200*100mm
Cutting length	290~3500mm
Overall dimension	4000*1120*1450mm
Weight	About 600KG

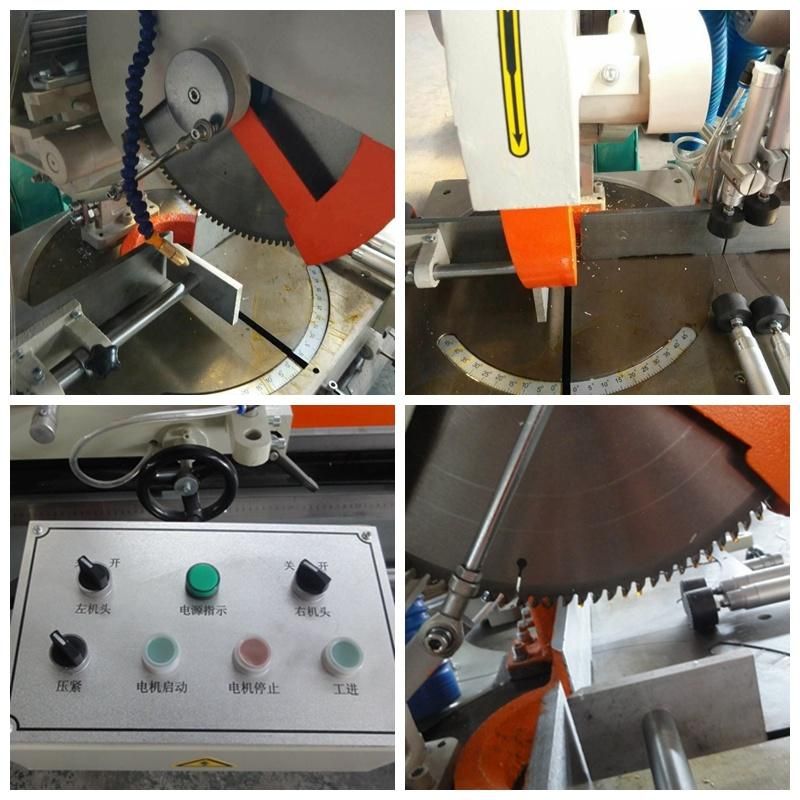

Machine details:







1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

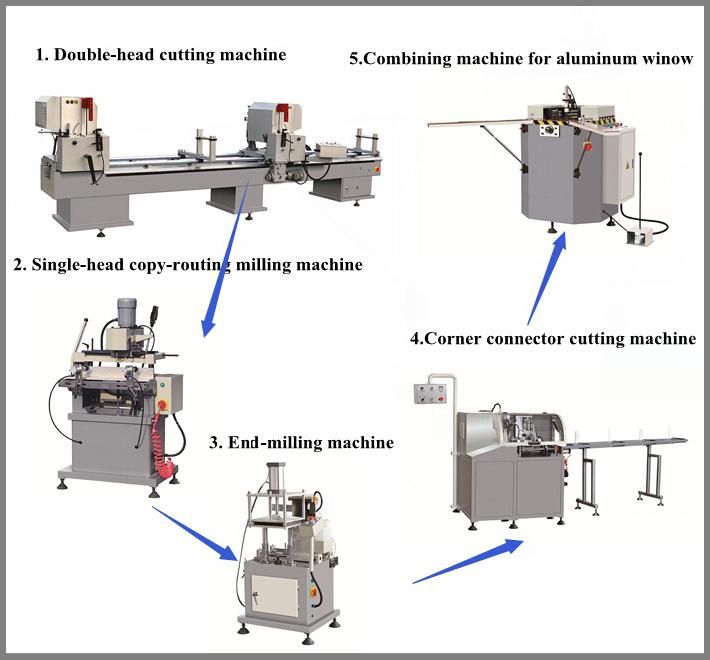

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
