Qt4-18 Automatic Hydraulic Concrete Hollow Block Machine Fly Ash Brick Making Machine
Shandong Xinming International Trade Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Model：Qt4-18 Brick Making Machine
- Host Machine Power：19.2kw
Base Info
- Model NO.：QT4-18
- Mold Period：18-20seconds
- Rated Pressure：21MPa
- Consumption：265.6kw,8h
- The Size of Pallet：850*550*20mnm
- Weight of Block Machine：3t
- Mixer Model：Jq500 Concrete Mixer
- Labor：7-8 Workers
- Vibration Force：35.5kn
- Block Type：Hollow Soild Paving Block
- Factory Area：1000-1500m2
- Standard Hollow Block：400*200*200mm
- Pallet Number：1000 PCS
- Color：Optional
- Transport Package：Qt4-18 Brick Making Machine Is Nude in Container
- Specification：3700*2100*2300mm
- Trademark：Xinming
- Origin：China
- HS Code：8474802000
- Production Capacity：500PCS Block Machines Per Month
Description

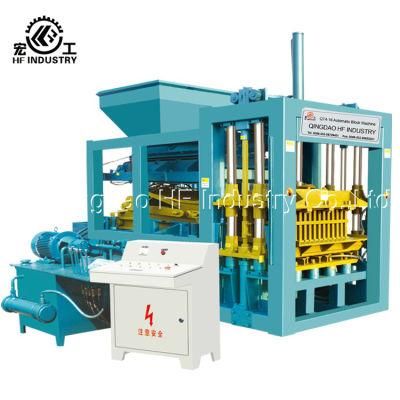

QT4-18
Brick machine
Host machine (Power: 19.2kw)
a. Pallet feeding system
b. Material feeding system
8" hollow block mold
1. Production capacity: 6400Pcs/8h
2. Fully automatic, hydraulic system
3. 18s produce one pallet blocks
4. Rated pressure: 21mpa
5. Load in 40HQ container
6. Multi function: Hollow, solid block, paver, houdi
2.Production Capacity

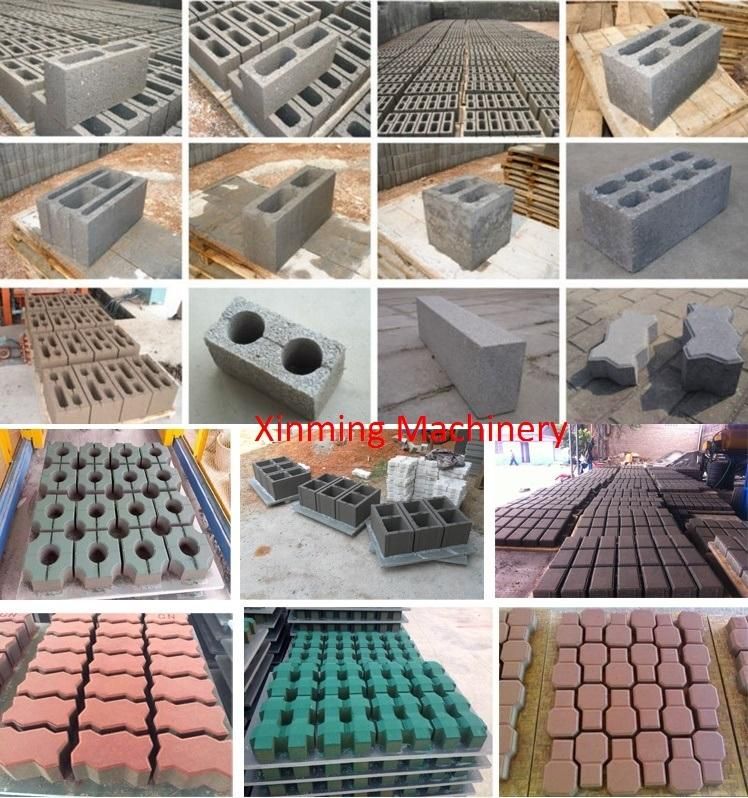

QT4-18 Automatic Concrete Block Making Machine is multipurpose, especially, the mold is changable. It can produce different size and shape of blocks by changing moulds. Such as concrete hollow block, soild block, colorful paver brick, curbstone etc.
Hollow/Solid block
400-150-200mm
8000 pcs/8h
Hollow/Solid block
400-100-200mm
11200 pcs/8h
Houdi block
450-120-200mm
9600 pcs/8h
S shape paver
225-112.5-60mm
19200 pcs/8h
I shape paver
200-160-60mm
12800 pcs/8h
Holland paver
200-100-60mm
19200 pcs/8h
3. Workers Number: 5-6 Workers
Two workers to load material into Mixer
One Workers to operate block machine
One Workers to load pallet into pallet box of block machine
One or Two workers to carry fresh blocks to curing size
4. Factory Area : 1000-1500M2
Shelter Area; 60M2 (10*6m)
5. Pallet Number for QT4-18 automatic block making line: 1000 pallet
Xinming Machinery Factory supply bamboo pallet, fiber (GMT) pallet and PVC pallet. We recommend you the Fiber Pallet.
6. Material Consumption
Here we take 400*200*200mm hollow block as expample and 10% cement in raw material
7. Maintance: QT4-18 automatic hollow solid block making machine is easy in maintance. please clean the mixer and mold after everyday work and fasten screws and add lubrication oil to moving parts before every day work.
8: Install Service: We will ship machine in whole one. you only connect elecctricity line with block machine, the machine can work. the manual and installtion video is avaible.
9. Guarantee Time: One year. we will supply free accessories with machine for one year use. and Technical service and spare parts are avaible in all time.

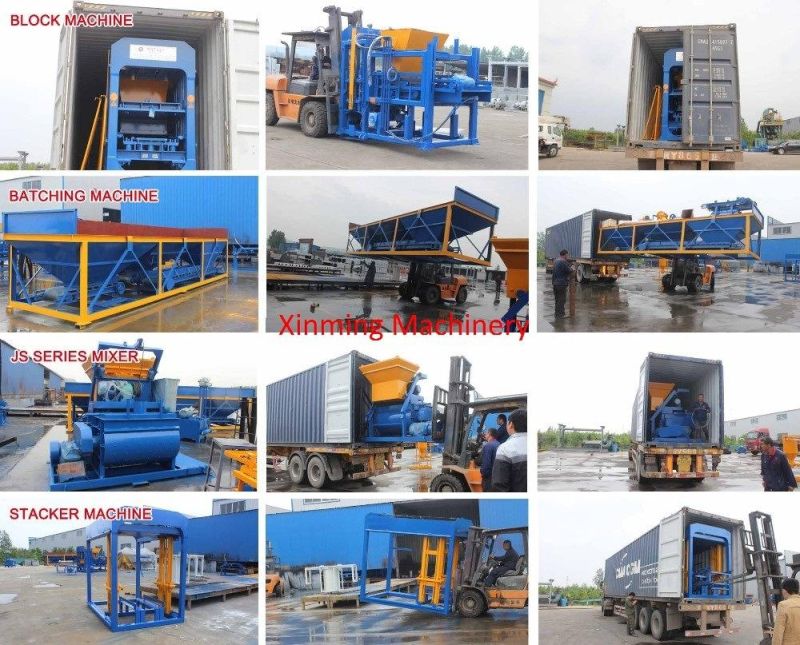

Packaging & Shipping
QT4-18 is one of our best-selling machines. This type of concrete block making machine is a fully automatic hydraulic vibration machine with high output, low power and affordable price.

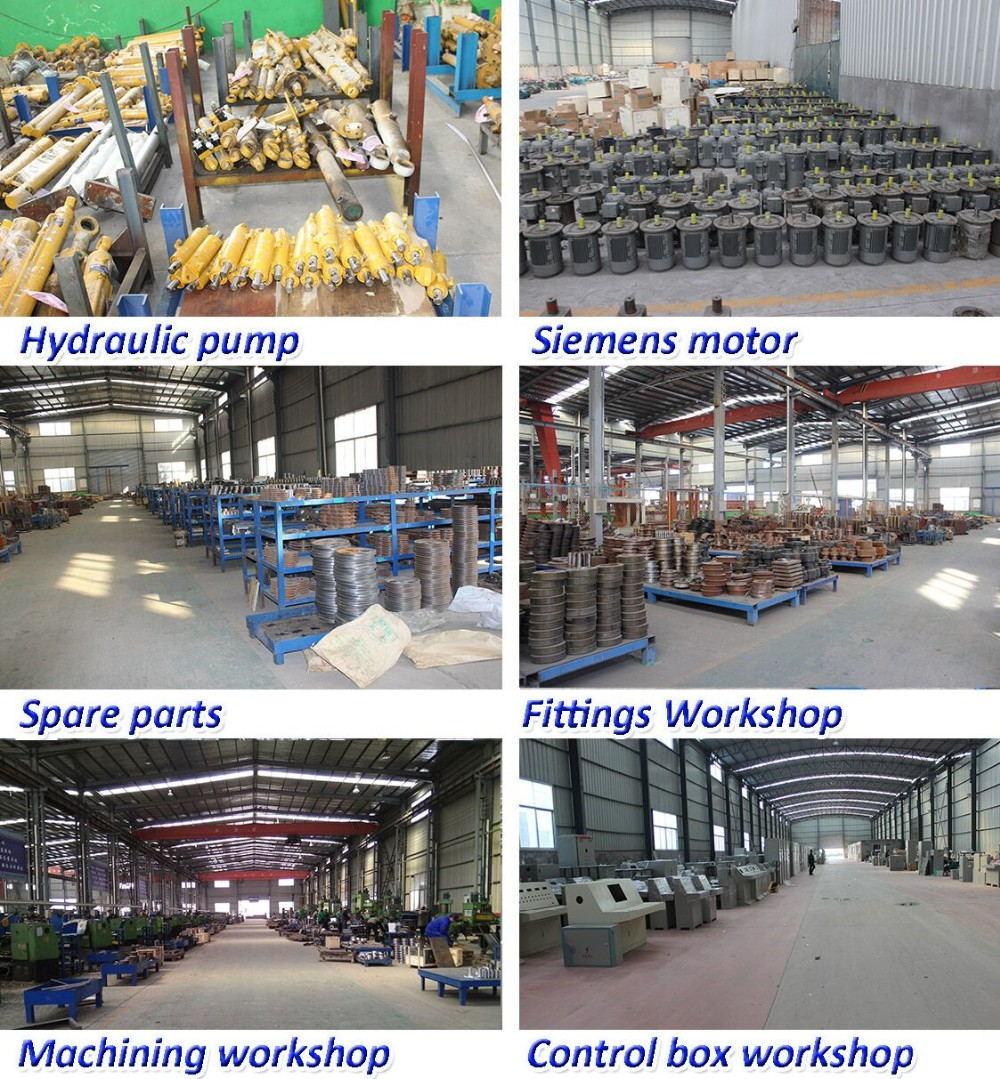

Xinming Machinery Co., Ltd is one of the biggest professional manufacturers of block machine with 18 years histories. Our Factory is located in Linyi City, Shandong Province, China.
On the basis of Rich experience and advanced Germany technologies,Xinming Machinery are majored in models of concrete block machine and clay interlocking brick machine to meet requirement of all customers. Such as automatic block machine, semi-automatic block machine, manual block machine, paver machine, curbstone machine and clay interlocking lego brick making machine. Xinming Machinery is widely used and praised in more than 70 countries such as Ghana, Kenya, Peru, Mexico, Vietnam, Sudan and so on.
