• Model NO.：sa
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8474390000
• Production Capacity：10000PC,Year

Model

BM01

BM02

Type

Stationary for pave / solid / hollow

Stationary for pave / solid / hollow

Power source

0.8hp motor(380v/220v) or 6hp diesel engine

0.8hp motor (380v/220v)

Cycle

1-2 minutes

1-2 minutes

Pallet size

550×350×15mm

490×520×20mm

Nos.of block per stroke

450×230×230 hollow 1 pcs

450×230×230 hollow 2 pcs

450×150×230 hollow 1 pcs

450×150×230 hollow 2 pcs

450×100×230 hollow 2 pcs

450×100×230 hollow 3 pcs

200×100×60 pave 2 pcs

200×100×60 pave 4 pcs

Block capacity per day (8 hours)

200-800 pcs

500-1000 pcs

Overall size (L×W×H)

730×790×1500mm

1320×760×1800mm

Weight (kg)

195

220

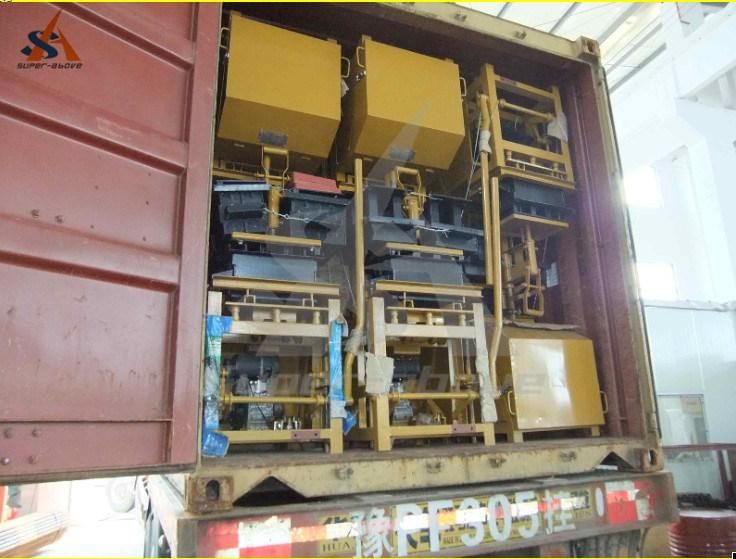

Container loading plan

36 Units

26 Units

Characters:
1. Low investment and easy to set up a block-manufacturing workshop,
2. This kind of machine is very portable, it can make the blocks on the construction site.
3. Simple training can operate the machine and less maintenance.
4. Electric or diesel powered both available for selection.

There are numerous factors to be taken into account when making quality blocks and bricks, it is therefore always
important to do trial runs and mixes and have a reputable laboratory test the strength of your bricks and blocks on
a daily, weekly and monthly basis. Lab reports should be filed and kept as a record.

we will not be held responsible for not achieving acceptable quality levels in block and brick production we will
responsible for quality control.
