Slitting, and Recoiling Line
XIAMEN FUMING ROLL FORMING MACHINERY CO., LTD.- Warranty：12 Months
- Tile Type：Gi, PPGI, Aluminum, Stainless Steel, Colored Steel
- Certification：CE, SGS
- Condition：New
- Customized：Customized
- Usage：Roof
Base Info
- Transmission Method：Gear,Sprocket, Gear Box, Toroidal Worm Box
- Color：Customized
- Thickness：1.5mm to 2.0mm or Customized
- Feeding Width：Customized
- Transport Package：Container
- Specification：20GP
- Trademark：FUMING
- Origin：Xiamen
- HS Code：8455229090
- Production Capacity：10sets,Month
Description

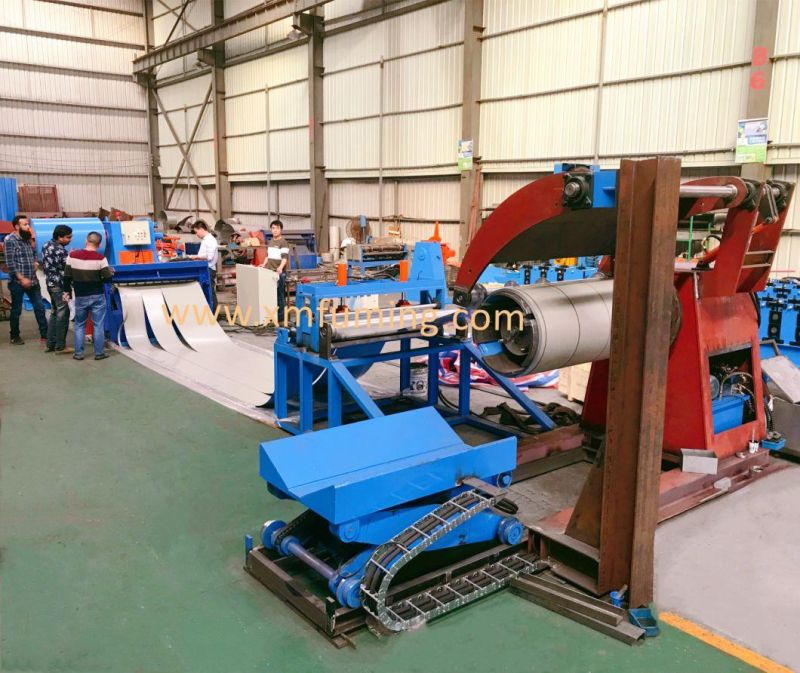

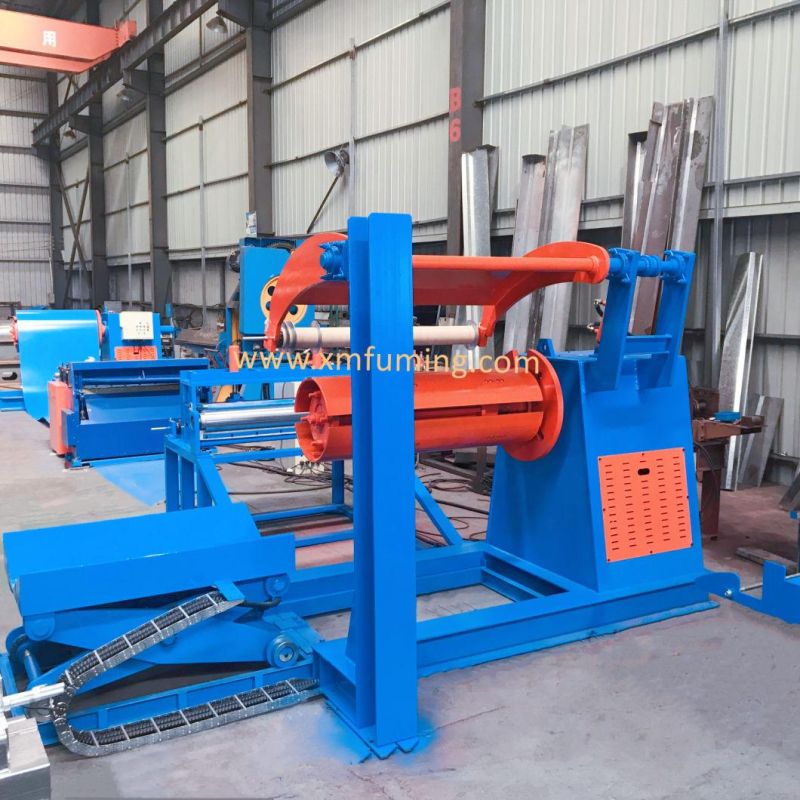

SLITTING, AND RECOILING LINE Material Specification Thickness 0.5mm to 1.0mm Size 1250mm Material GI, PPGI Yield strength 245-550MPa or customized Machine Components 5Ton*1300mm Hydraulic Decoiler Coil inner hole expanding Hydraulic system, 3KW pump motor Speed regulating Frequency inverter, 3KW motor Expanding type Taper wedge expanding system Load capacity Max.5Tons Coil inner-diameter 510±30mm Coil width Max.1300mm Stop/start rotation Automatic stopping device with limited switch to assist Option Please refer to Decoiler on home page Slitting Device Slitting tool material Cr12, heat treatment Quantity of slitting tool 4 sets or customized Motor 4.0KW 5Ton*1300mm Hydraulic Recoiler With Coil Car And Top Arm Coil inner hole expanding Hydraulic system, 3KW pump motor Driving motor with brake 5.5KW Expanding type Taper wedge expanding system Load capacity Max.5Tons Coil inner-diameter 510±30mm Coil outer-diameter 1600mm Coil width Max.1300mm Up/down stroke of coil car Max300mm Forward/Backward stroke of coil car Max. 1000mm With top arm, to avoid coil become loosen Stop/start rotation Automatic stopping device with limited switch to assist PLC Control System Function Control quantity, punching and cutting length automatically PLC Siemens Touch screen Siemens Inverter Schneider or Delta Encoder Omron Punching tolerance ≤±2mm Control Voltage 24V
