Building Material Making Machinery

Home > Product > Board Making Machine

Galvanized Aluminium Steel Ceiling Wall Panel Tile Making Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Product Type：Roll Forming Machine
  • Automatic Grade：Automatic
  • Power Source：Electric
  • Screw Design：Double-Screw
  • Certification：CE, ISO
  • Condition：New

Base Info

  • Model NO.：118
  • Customized：Customized
  • Feeding Material Width：300mm or Customized
  • Feeding Thickness：0.3-0.8mm
  • Main Motor Power：4kw
  • Cutting Method：Hydraulic Mould Cutting
  • Cutting Material：Cr12
  • Cutting Power：3kw
  • Roller Material：45# Steel
  • Roller Station：14 Stations
  • Machine Color：as Customer Need
  • Machine Size：About 7800*1000*1450mm
  • Transport Package：Main Machine with Simple Plastic Film.
  • Specification：size: about 7.8*1.0*1.45m
  • Trademark：KXD
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：300 Sets,Year

Description

         Main parameters of Galvanized Aluminium Steel Ceiling Wall Panel Tile Making Machine1Suitable to processColor steel plate, galvanized sheet,aluminum coils and etc.2 Width of the feeding material300 mm3Roller station14 rows4Thickness of feeding material0.3-0.8mm5Productivity 10-15m/min6Rollers' material45# steel, with hard chrome on surface7Diameter of shaft70mm8Weight About 3.0 T9Size 7.8*1.0*1.45m10Voltage380V 50Hz 3Phase11Main frame of machine300mm H steel12Main motor power4kw13Hydraulic cutting power4kw14Side panel thickness14-20mm



Our company information:
Galvanized Aluminium Steel Ceiling Wall Panel Tile Making Machine

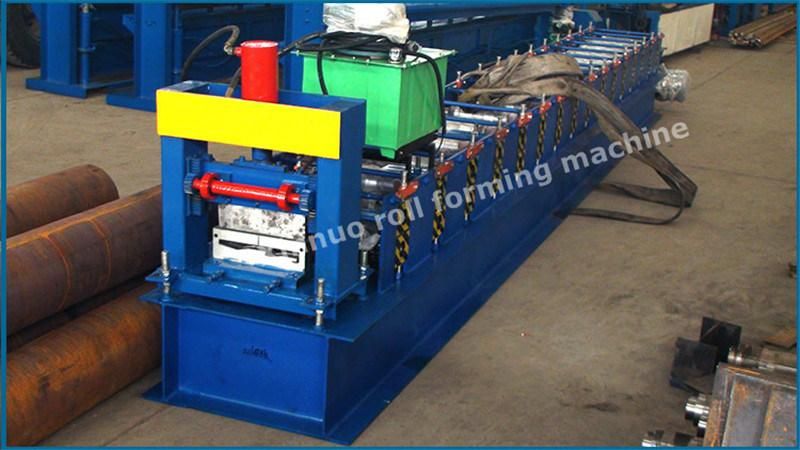

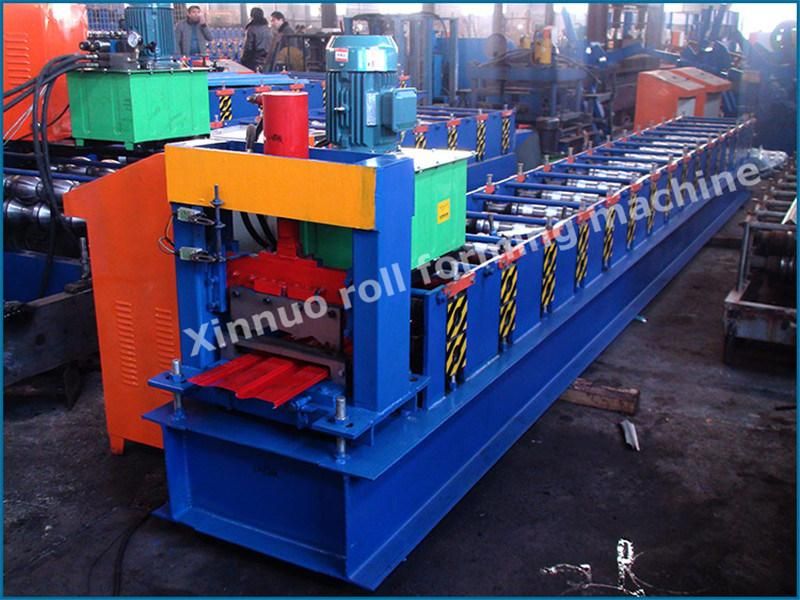

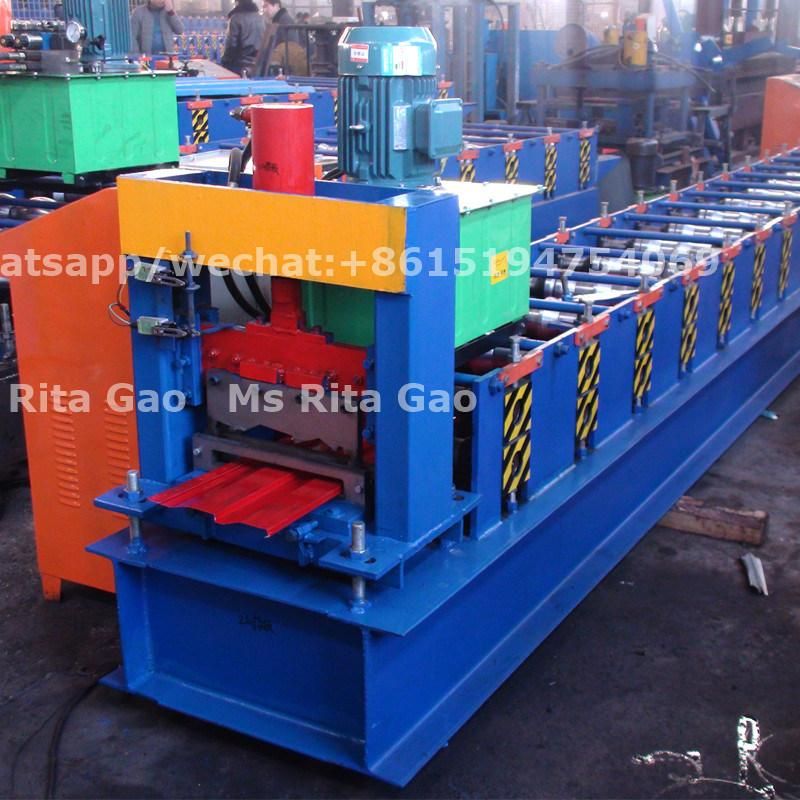

Pictures of Galvanized Steel Siding Panel Roll Forming Machine

Galvanized Aluminium Steel Ceiling Wall Panel Tile Making Machine

Galvanized Aluminium Steel Ceiling Wall Panel Tile Making Machine

Galvanized Aluminium Steel Ceiling Wall Panel Tile Making Machine

If there is anything I can do for you, please don't hesitate to contact me, my friend!

Contact: Ms Rita Gao
