Building Material Making Machinery

Customized Fuming Roll Forming Price Double Layer Steel Frame Machinery Rolling Door Machine ODM

XIAMEN FUMING ROLL FORMING MACHINERY CO., LTD.
  • Warranty:12 Months
  • Tile Type:Gi, PPGI, Colored Steel
  • Certification:CE, SGS
  • Condition:New
  • Customized:Customized
  • Usage:Roof, Ridge Cap, Ridge Capping

Base Info

  • Model NO.:Width Adjustable
  • Transmission Method:Gear,Sprocket, Gear Box or Toroidal Worm Box
  • Color:Customized
  • Thickness:0.38mm-0.45mm
  • Feeding Width:444mm-762mm
  • Transport Package:Container
  • Specification:40GP
  • Trademark:FUMING
  • Origin:Xiamen
  • HS Code:8455229090
  • Production Capacity:15 Sets,Month

Description

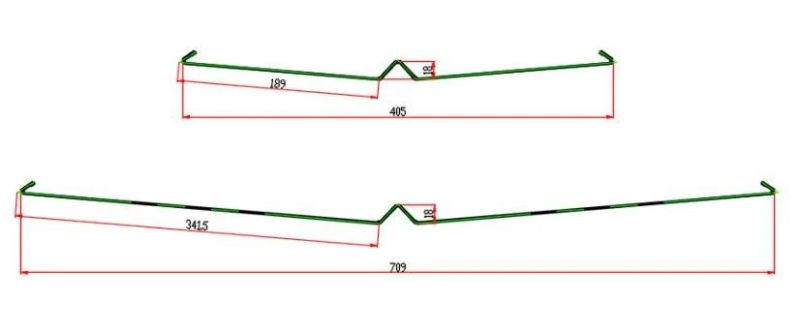

 ROLL FORMING MACHINE FOR WIDTH ADJUSTABLE RIDGE CAP PROFILEDrawing Material SpecificationThickness0.38mm to 0.45mmMaterialPPGI, GIFeeding width444mm to 762mmYield strength550MPa or customized Machine Components5Ton*1250mm Hydraulic DecoilerCoil inner hole expandingHydraulic system, 3KW pump motorSpeed regulatingFrequency inverter, 3KW motorExpanding typeTaper wedge expanding systemLoad capacityMax.5TonsCoil inner diameter510±30mmCoil outer diameterMax.1600mmCoil widthMax.1250mmStop/start rotationAutomatic stopping device with limited switch to assistOptionPlease refer to Decoiler on home page Power Feed-in DeviceMotor 1.5KW Hydraulic Flying Cut, Servo Motor DrivingWith linear rail to guide and ball screw to adjustServo motor5KWHydraulic station7.5KW Roll Forming Machine Driving systemGear boxForming station14 stationsRoller materialCr12, heat treatmentOption for roller materialCr12MovShafts DiameterΦ75mmMain motor15KW, frequency speed controlSize changingScrew adjusting manuallyLine speed of rollformerApprox. 38m/min or customized PLC Control SystemFunctionControl quantity and and cutting length automaticallyPLCSiemensTouch screenSiemensInverterSchneider or DeltaEncoderOmronCut-to-length tolerance≤±2mm or customizedControl Voltage24V Product Rack3 meters×2Customized Fuming Roll Forming Price Double Layer Steel Frame Machinery Rolling Door Machine ODMCustomized Fuming Roll Forming Price Double Layer Steel Frame Machinery Rolling Door Machine ODMCustomized Fuming Roll Forming Price Double Layer Steel Frame Machinery Rolling Door Machine ODM
