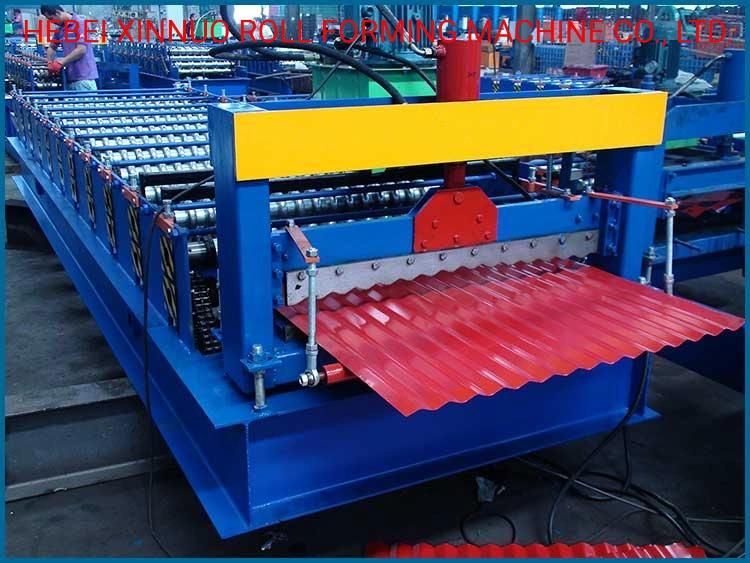

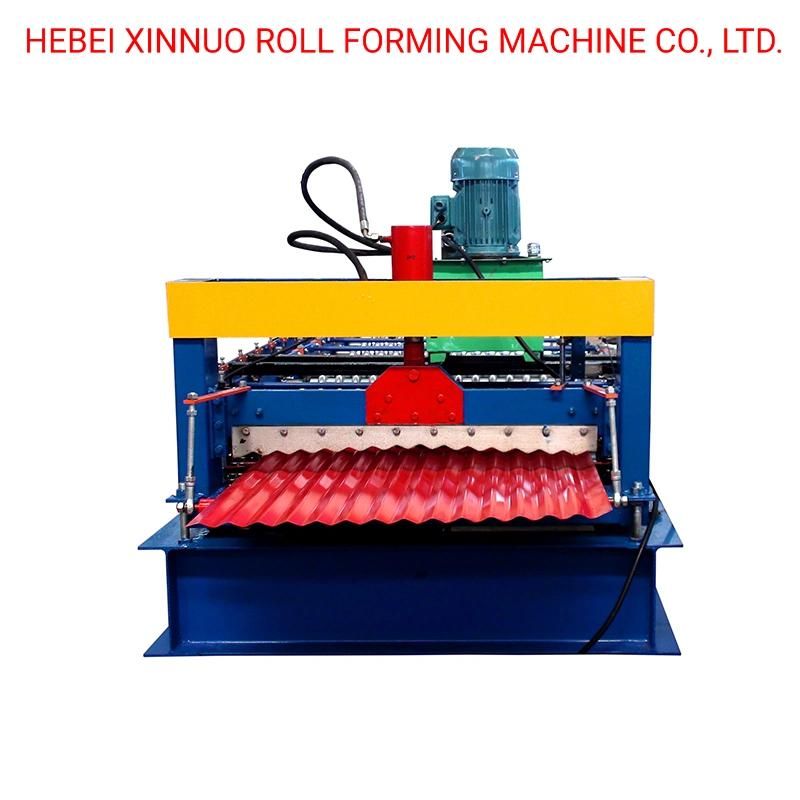

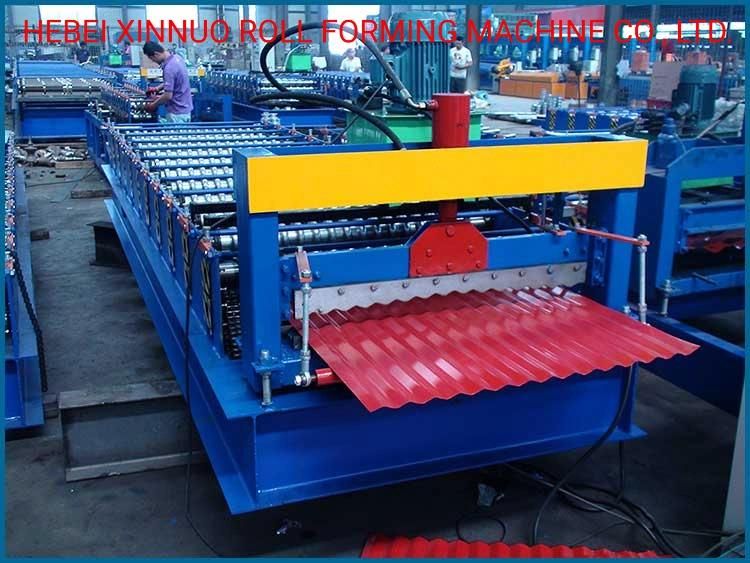

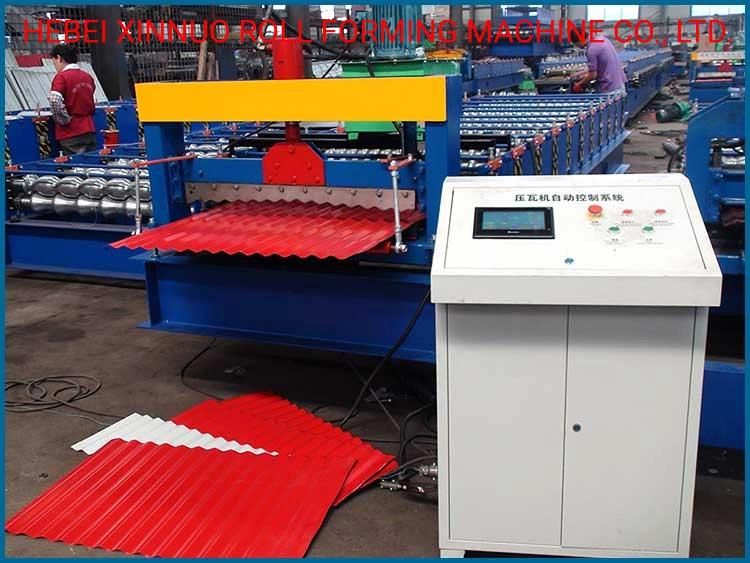

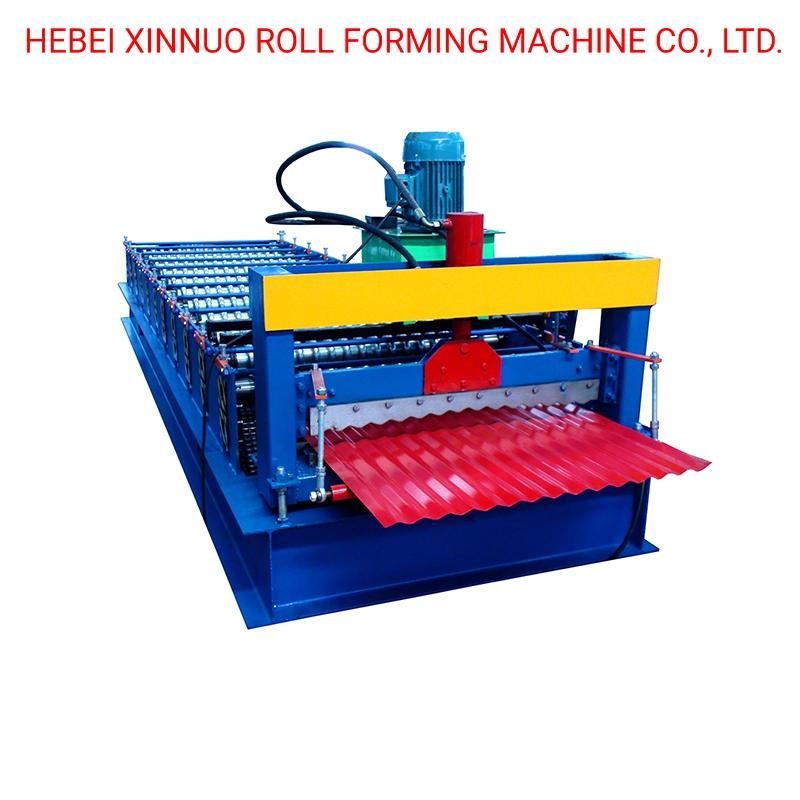

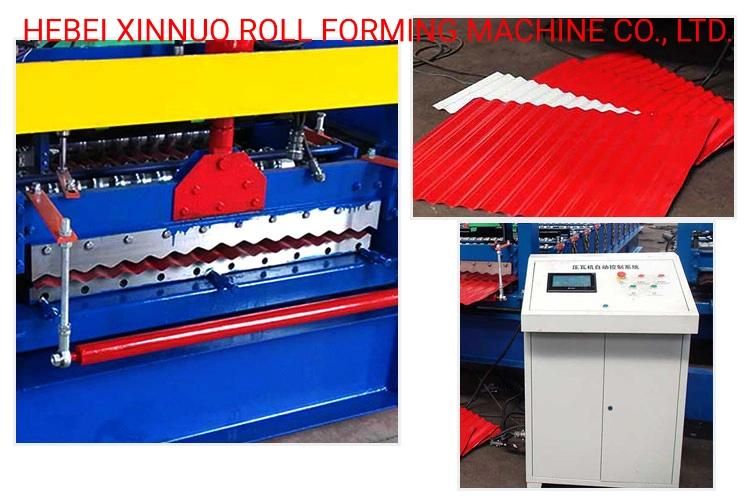

850 Corrugated Cutting Laminating Machine Amritsar

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Product Type：Steel Roof Sheet Machine
  • Automatic Grade：Automatic
  • Power Source：Electric
  • Screw Design：Double-Screw
  • Certification：CE, ISO
  • Condition：New

Base Info

  • Model NO.：850 corrugated machine
  • Customized：Customized
  • Feeding Material Width：1000mm or Customized
  • Feeding Thickness：0.3-0.8mm
  • Main Motor Power：4kw
  • Cutting Method：Hydraulic Mould Cutting
  • Cutting Material：Cr12
  • Cutting Power：3kw
  • Roller Material：45# Steel
  • Roller Station：12-16 Stations
  • Machine Color：as Customer Need
  • Machine Size：About 8500*1300*1400mm
  • Transport Package：Main Machine with Simple Plastic Film.
  • Specification：size: about 7.0*1.45*1.45m
  • Trademark：KXD
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：300 Sets,Year

Description

         Main parameters of 850 roll forming machine1Suitable to processColor steel plate, galvanized sheet,aluminum coils and etc.2 Width of the feeding material1000mm3Roller station12-16 rows4Thickness of feeding material0.3-0.8mm5Productivity 10-15m/min6Rollers' material45# steel, with hard chrome on surface7Diameter of shaft70mm8Weight About 3.5 T9Size 7.0*1.45*1.45m10Voltage380V 50Hz 3Phase11Main frame of machine300mm H steel12Main motor power4kw13Hydraulic cutting power3kw14Side panel thickness14-20mm850 Corrugated Cutting Laminating Machine Amritsar850 Corrugated Cutting Laminating Machine Amritsar850 Corrugated Cutting Laminating Machine Amritsar850 Corrugated Cutting Laminating Machine Amritsar850 Corrugated Cutting Laminating Machine Amritsar850 Corrugated Cutting Laminating Machine Amritsar

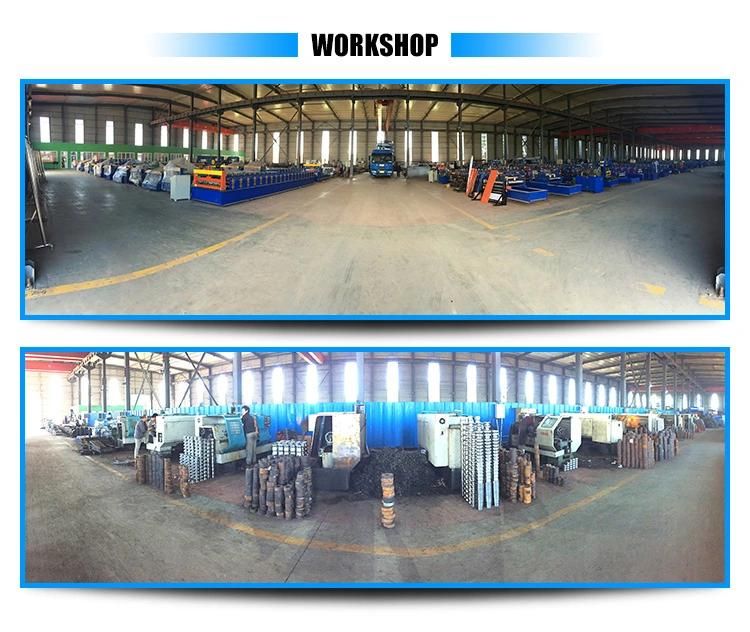

Our company information:
