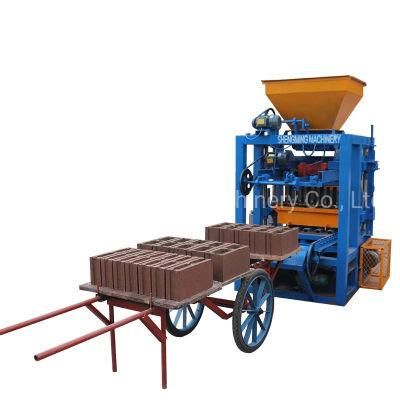

High Capacity Concrete Hollow Cement Solid Brick Making Machine

Linyi ShengMing Machinery Co., Ltd.
  • After-sales Service：Supply Instruction, Installation Video
  • Warranty：One Year
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Vibration Molding

Base Info

  • Model NO.：QTJ4-25A
  • Shaping Type：Vibration
  • Shipping Time：25-30s
  • Pressure：16MPa
  • Weight：2800kgs
  • Pallet Size：850*5500mm,880*550mm
  • Dimension：370X1800X2500
  • Capacity：4000psc,Day
  • Power：17.65kw
  • Model：Qtj4-25A
  • Labor：3-5 People
  • Water Consumption：3-5t,Day
  • Workshop Area：60m2
  • Power Voltage：380,220V,AC
  • Pallet Quantity：800-1000pieces
  • Motor：Siemens
  • Transport Package：Naked in Container
  • Specification：3700× 1800× 2500
  • Trademark：shengming
  • Origin：Linyi
  • HS Code：8474802000
  • Production Capacity：6000pieces,Day

Description

Total rated power29.25KWWorkshop area60M2Daily capacity4600-5000piecesPower voltage380V/220V ACPallet quantity800-1000piecesLabor quantity3-5 peopleWater consumption3-5T/dayForming period25-30S
High Capacity Concrete Hollow Cement Solid Brick Making Machine

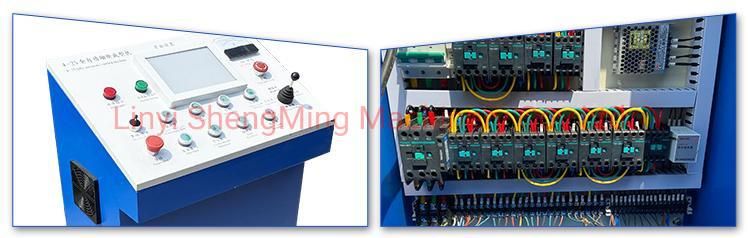

1. The machine adopts PLC program control system to truly realize automatic feeding, automatic distribution,
automatic compaction and automatic brick discharging. The electric control system PLC is a well-known brand
in Taiwan.

High Capacity Concrete Hollow Cement Solid Brick Making Machine

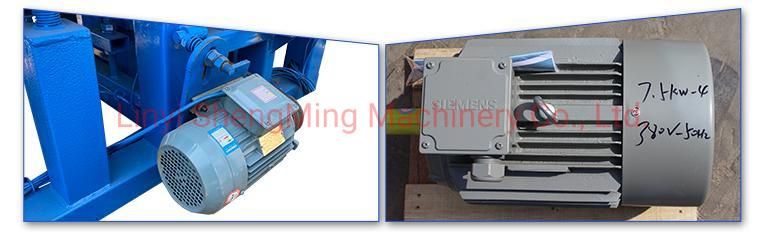

2. The vibration system is equipped with a specially designed vibration box and a high-speed vibration motor,
which greatly improves the forming speed and the compactness of the products.

High Capacity Concrete Hollow Cement Solid Brick Making Machine

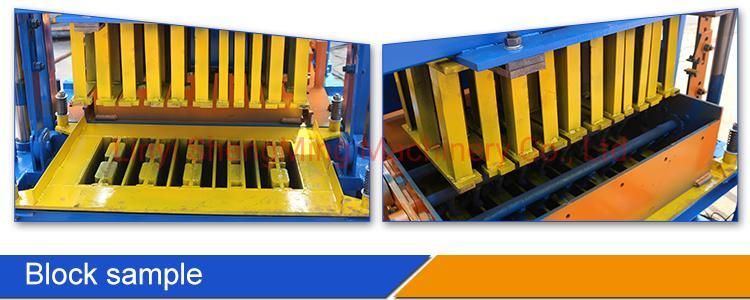

3. The replaceable mould greatly improves the practicability and realizes the multi-purpose of one machine.

High Capacity Concrete Hollow Cement Solid Brick Making Machine
High Capacity Concrete Hollow Cement Solid Brick Making MachineHigh Capacity Concrete Hollow Cement Solid Brick Making MachineHigh Capacity Concrete Hollow Cement Solid Brick Making Machine

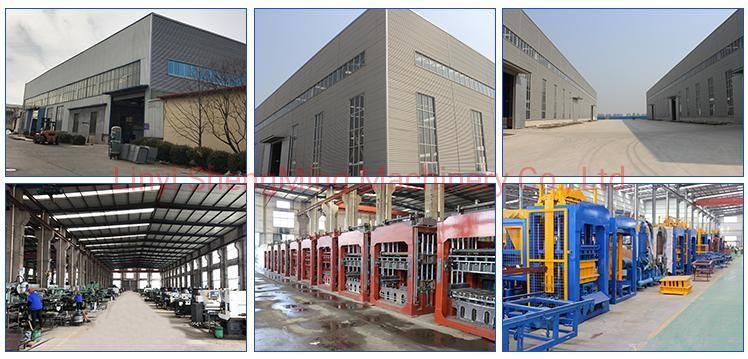

Established in the year 1990,we are a prominent organization engaged in manufacturing and supplying
Block machine,batching plant and concrete pole machine, extensively used in field of infrastructure and
real estate development.
High Capacity Concrete Hollow Cement Solid Brick Making Machine

High Capacity Concrete Hollow Cement Solid Brick Making Machine
High Capacity Concrete Hollow Cement Solid Brick Making Machine
FAQ:
Q: what is the material for this machine ?
A: you can use lateriate or other clay material or concrete material, plus a little cement

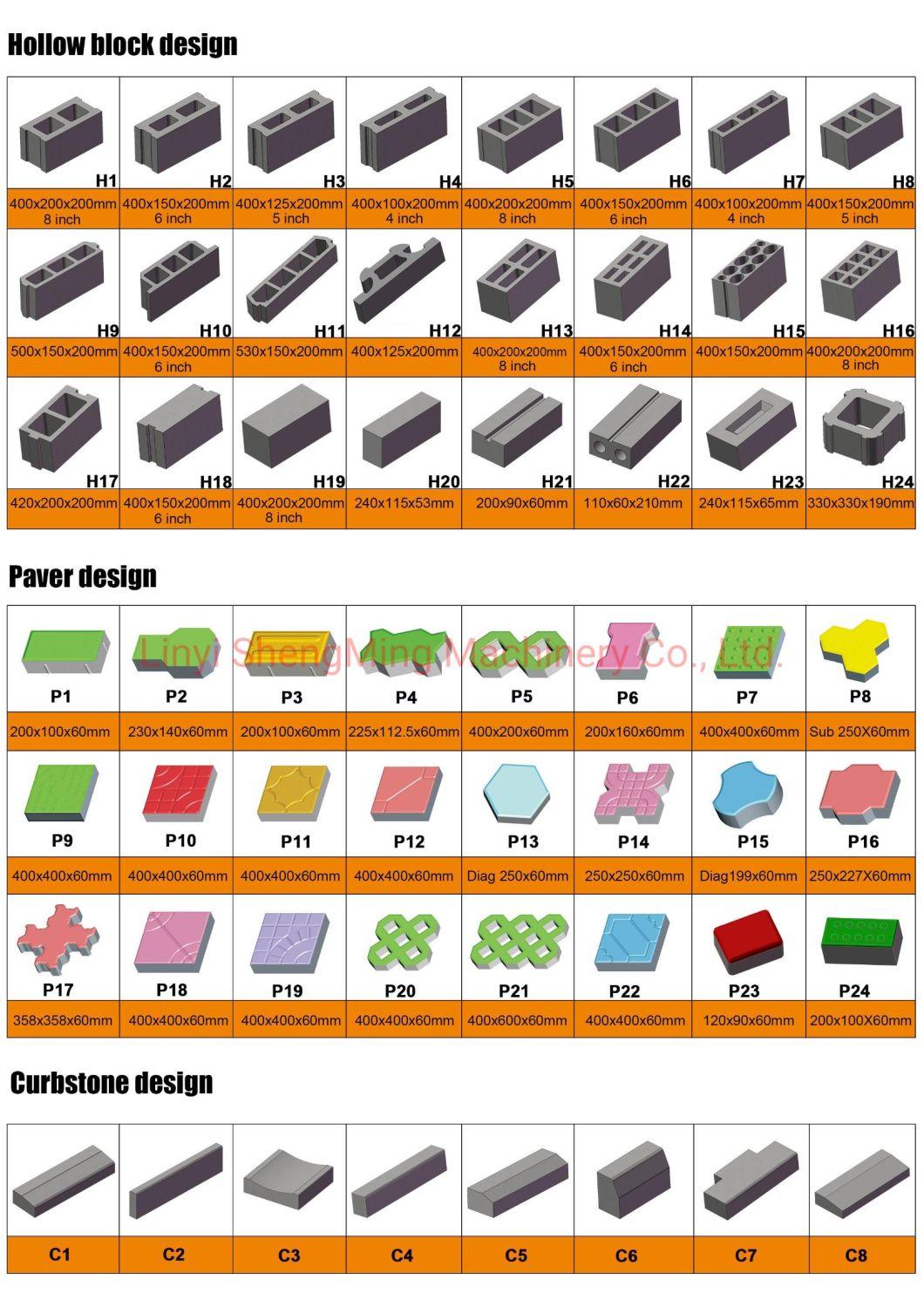

Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.

Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally

Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years

Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.

Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.
