• Model NO.：SJMC02B
• Working Pressure：0.5~0.8MPa
• Saw Blade Speed：3000r,Min
• Cutting Width：Max 150mm (Single)
• Processing Profile Length Range：Max 6000 (Set According to User Needs)
• Transport Package：Plastic Cover
• Trademark：YUEFENG
• Origin：Jinan, Shandong, China
• HS Code：8477800000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJMC02B Working Pressure 0.5~0.8MPa Saw Blade Speed 3000r/Min Cutting Width Max 150mm (Single) Processing Profile Length Range Max 6000 (Set According to User Needs) Transport Package Plastic Cover Trademark YUEFENG Origin Jinan, Shandong, China HS Code 8477800000 Production Capacity 20 Sets/Month

Product Description

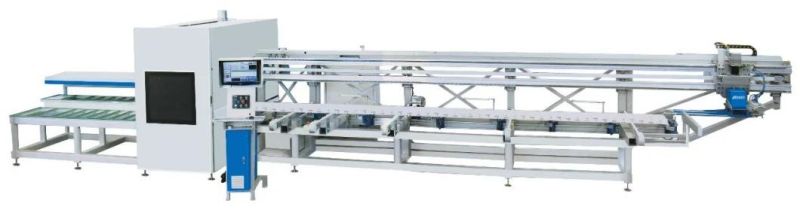

Full Automatic cutting machine for upvc window and door making The sawing unit of the complex window system solution is used to automatically realize the cut-to-length of the plastic profile at 45°, the V-shaped mouth and the middle stile, which is suitable for mass production of high-end doors and windows.
Features:

Automatically download and optimize the blanking data and process parameters, without manual input and adjustment
Automatically complete the clamping, feeding and cutting of profiles, with a high degree of automation
Equipped with a circulating feeding system, which greatly improves production efficiency
The manipulator can simultaneously clamp and complete the sawing of four profiles at one time, with high production efficiency
Imported spindle motor, high processing quality
Linear motion pair guide rail, high precision of processed product size
Two-axis CNC, high degree of automation
Imported drive system, closed-loop control, high processing accuracy
All use imported high-quality electrical and pneumatic system components, stable and reliable
It can communicate with the host computer, automatically select processing tasks, and realize computer-aided design/manufacturing (CAD/CAM) flexibly
Barcode printer can be configured to print material identification in real time, realize process information identification, and facilitate material management (software support)
Equipped with automatic discharging system, simple and convenient operation
With automatic material head collection system, the working environment is clean and tidy
The height design of the console and the fuselage accords with the ergonomic principle, reducing the labor intensity
1 7-inch large control screen, equipped with a graphical interface, simple and intuitive operation
This machine is especially suitable for batch and high-quality production of complex window shapes

Input voltage: 380V 50Hz
Input power: 10.8W
Working pressure: 0.5~0.8MPa
Air consumption: 330L/min
Saw blade speed: 3000r/min
Saw blade specification: φ500×4.3×φ30mm
Cutting width: max 150mm (single)
Processing profile length range: max 6000 (set according to user needs)
Cutting height Frame fan profile: Frame fan profile ≤120mm Middle stile profile: 54~120mm V port depth: ≤60mm
The minimum cutting length of the stile profile: frame fan profile 400mm, the stile profile 450mm
Dimensions: 11900×4400×2400mm
Weight 3600kg

RFQ:

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
