Automatic CNC Aluminum Steel Pipe and Tube Bending Machines

Shandong Truetec Machinery Co., Ltd.
  • Condition:New
  • Certification:CE
  • Automatic Grade:Automatic
  • CNC or Not:CNC
  • Voltage:380V
  • Product Name:3 Axis CNC Aluminum Profile Bending Machine

Base Info

  • Input Power:4kw
  • Y Axial Hydraulic Trust:20t
  • Three Shaft Speed:1-15r,Min
  • Axial Spacing:320-600mm
  • Min. Bending Radius:150mm
  • Spindle Diameter:50mm
  • Machine Dimension:1200*1100*1400mm
  • Weight:900kg
  • Machine Type:Aluminium Door-Window Processing Machine
  • Function:Bending Aluminum Thermal Break Profiles
  • Operation Box Dimensions:500*300*1200mm
  • Maximum Torque of X Axis:2500n.M
  • Machinable Max Size:120*150mm
  • Color:Gray,Customization
  • Transport Package:Wooden
  • Specification:20T
  • Trademark:Truepro
  • Origin:China
  • HS Code:846221
  • Production Capacity:500 Sets,Year

Description

Basic Info.

Input Power 4kw Y Axial Hydraulic Trust 20t Three Shaft Speed 1-15r/Min Axial Spacing 320-600mm Min. Bending Radius 150mm Spindle Diameter 50mm Machine Dimension 1200*1100*1400mm Weight 900kg Machine Type Aluminium Door-Window Processing Machine Function Bending Aluminum Thermal Break Profiles Operation Box Dimensions 500*300*1200mm Maximum Torque of X Axis 2500n.M Machinable Max Size 120*150mm Color Gray/Customization Transport Package Wooden Specification 20T Trademark Truepro Origin China HS Code 846221 Production Capacity 500 Sets/Year

Product Description

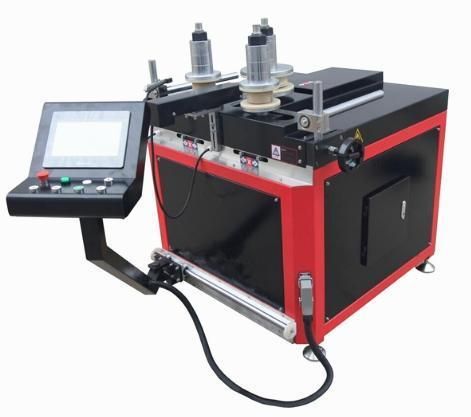

Automatic cnc aluminum steel pipe and tube bending machines

Automatic CNC Aluminum Steel Pipe and Tube Bending Machines

Ma
chine feature:

1. The machine is mainly used for bending for metal material such as iron, copper and aluminum and special shaped material.
It's ideal equipment of curved process for furniture manufactures, wrought iron engineering manufacturers, aluminum alloy doors
and windows manufaturers, aluminum alloy doors and windows manufacturers, decorative steel structure enterprise.
2. The machine adopts CNC controller, which make the machine features easy handling and high precision.
3. Using CNC software, makes the bending operation very simple.
4. Can bend many shapes such as C shape, U shape, the whole circle oval, combination of multiple radius-shaped, etc.
5. Two servo motor or hydraulic & Servo motor for your choice.hole circle and spring.
5. Capable of detecting material rebound data, eliminate rebound.
Parameter:
ModelLGW-CNC-13T
Input power4KW
Voltage380V 50Hz
Min. diameter of bending150mm
Max. Size of profile120*150mm
Axial spacing320-600mm
Y axis Hydraulic thrust13T (max:20T)
Spindle diameter50mm
Positioning precision0.02mm / <0.01mm
Max. torque of X axis2500N.W
Three shaft speed1-15r/min
Overall dimension1200*1100*1400mm
Operation box dimension500*300*1200mm
Weight900kg

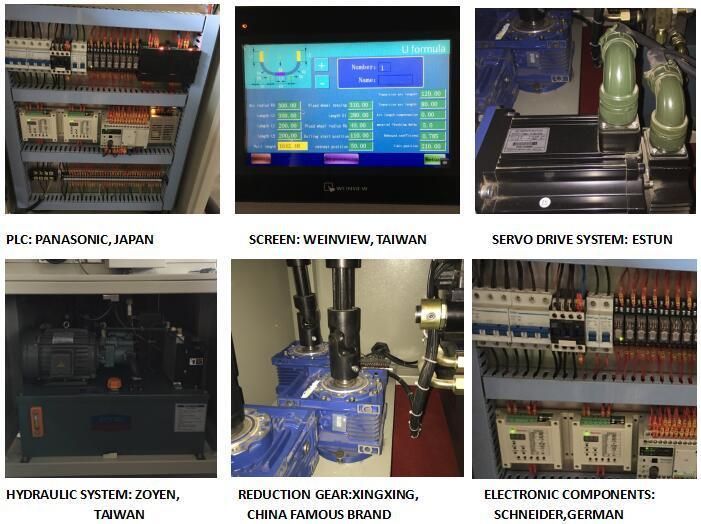

Machine details:
Automatic CNC Aluminum Steel Pipe and Tube Bending Machines
Automatic CNC Aluminum Steel Pipe and Tube Bending Machines

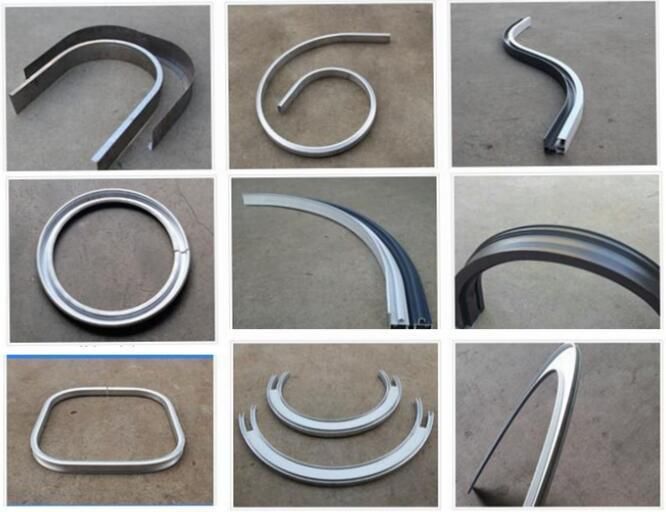

Bending effect:
Automatic CNC Aluminum Steel Pipe and Tube Bending Machines
Automatic CNC Aluminum Steel Pipe and Tube Bending MachinesAutomatic CNC Aluminum Steel Pipe and Tube Bending Machines
Automatic CNC Aluminum Steel Pipe and Tube Bending Machines

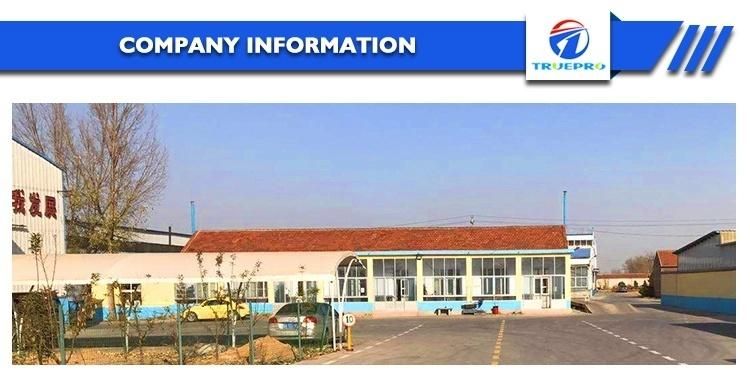

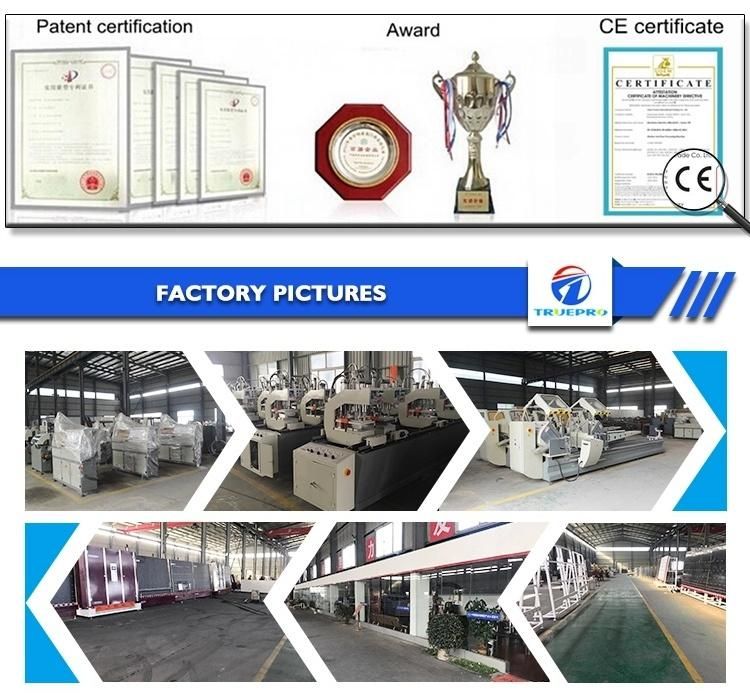

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.
Automatic CNC Aluminum Steel Pipe and Tube Bending Machines

Automatic CNC Aluminum Steel Pipe and Tube Bending Machines

1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

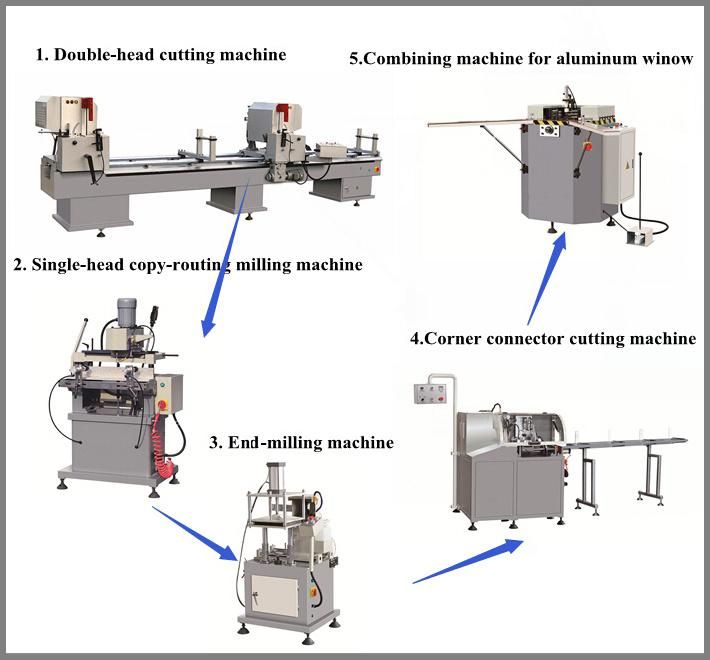

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
