• Input Power：19kw
• Air Pressure：0.5-0.8MPa
• Max. Processing Glass Size：2000X2500mm
• Min. Processing Glass Size：280*450mm
• Working Direction：Right to Left or Left to Right
• Pane Glass Thickness：3-18mm
• Machine Dimension：8000X2100X3200mm
• Weight：3000kg
• Application：Glass Washing and Drying
• Warranty：1 Year
• Usage：Insulting Glass Production
• Washing Speed：0-8m,Min
• Package：Wooden Cases
• Transport Package：Standard
• Specification：JY-2000
• Trademark：Truepro
• Origin：China
• HS Code：846490
• Production Capacity：200 Sets,Year

Basic Info.

Input Power 19kw Air Pressure 0.5-0.8MPa Max. Processing Glass Size 2000X2500mm Min. Processing Glass Size 280*450mm Working Direction Right to Left or Left to Right Pane Glass Thickness 3-18mm Machine Dimension 8000X2100X3200mm Weight 3000kg Application Glass Washing and Drying Warranty 1 Year Usage Insulting Glass Production Washing Speed 0-8m/Min Package Wooden Cases Transport Package Standard Specification JY-2000 Trademark Truepro Origin China HS Code 846490 Production Capacity 200 Sets/Year

Product Description

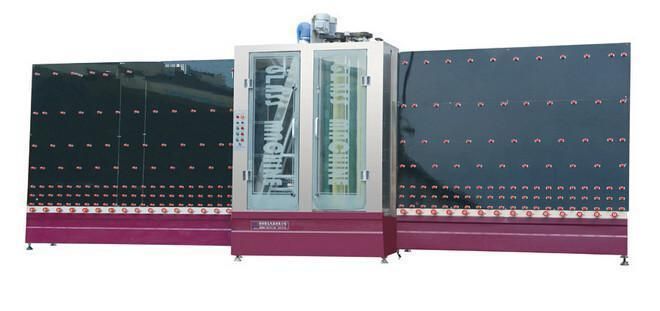

        Glass Washing Vertical 1800 with Brushes Glass Washer
Machine feature:
1. Washing section and water system adopt complete stainless steel or rot proof materials.
2. It has 2 pairs of glass washing soft brushes for coated glass and LOW-E glass.
3. Drying section adopts rubber roller to scrape of the water,and use the hot wind to dry the glass.
4. The transmit system of washing machine adopts unlimited speed adjustment to realize high efficiency of application.
Parameter:

Model	JY-2000
Input Voltage	380V 50Hz
Total Power	19.0KW
Cutting Glass Size	2000×2500mm
Min Glass Size	280×450mm
Glass Thickness	3~18mm
Washing Speed	0~12m/min
Total Weight	3000kg
Size of Line	8000x2100x3200mm

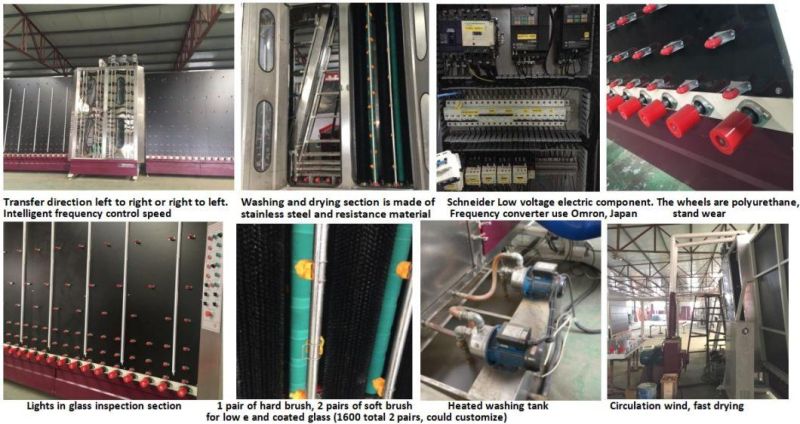

Machine details:




Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

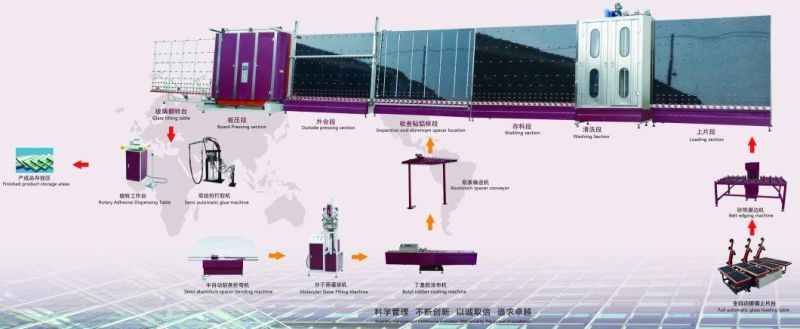

4. Insulating glass production line
