• Model NO.：rockwool sandwich panel machine
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Type：Tile Forming Machine
• Speed：4-5m,Min
• Place of Origin：Hebei, China (Mainland)
• Voltage：380V,50Hz
• Use：EPS, Rock Wool
• Weight：15tons
• Model Number：Xinnuo960
• Color：Any Color You Like
• Transport Package：Container
• Specification：34000mm* 2500mm*2600mm
• Trademark：Xinnuo
• Origin：Hebei
• Production Capacity：15tons

Overview Product Description
Manual decoiler1).Material coil inner diameter: 450mm-550mm
2).Outer diameter:1500mm
3).Max coil width:1250mm
4).Carrying capacity: 5T

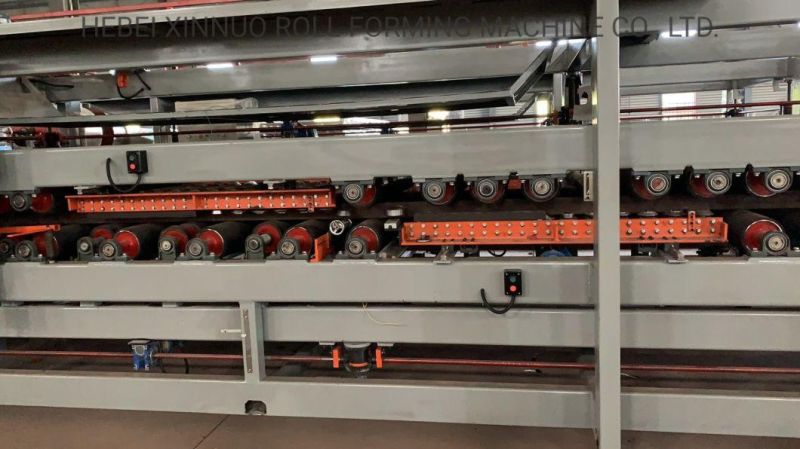

Forming device1)Shaft material:high grade No.45 steel after treatment
2)Out diameter is 70 mm
3)Roller material:  45# steel polished and coated with chrome HRC55-60°
4)Forming speed:0-5m/min
5)Main motor power:32 kw
6)The thickness of the raw material :0.3-0.8mm
7)The thickness of the sanwich panel:38-298mm
8)Coil width:1000/1200/1250mm
9)Effective width:950/1150mm
10)Sandwich material:EPS/rock wool/PU/glass wool
11).Voltage:380v,50Hz,3 phase

Hydraulic cutter1). material of saw: alloy 2). cutting system: tracking cutting adopt advanced
 hydraulic drive, after forming and compositing automatic cut, no distort,
no wasting , high safe factor.

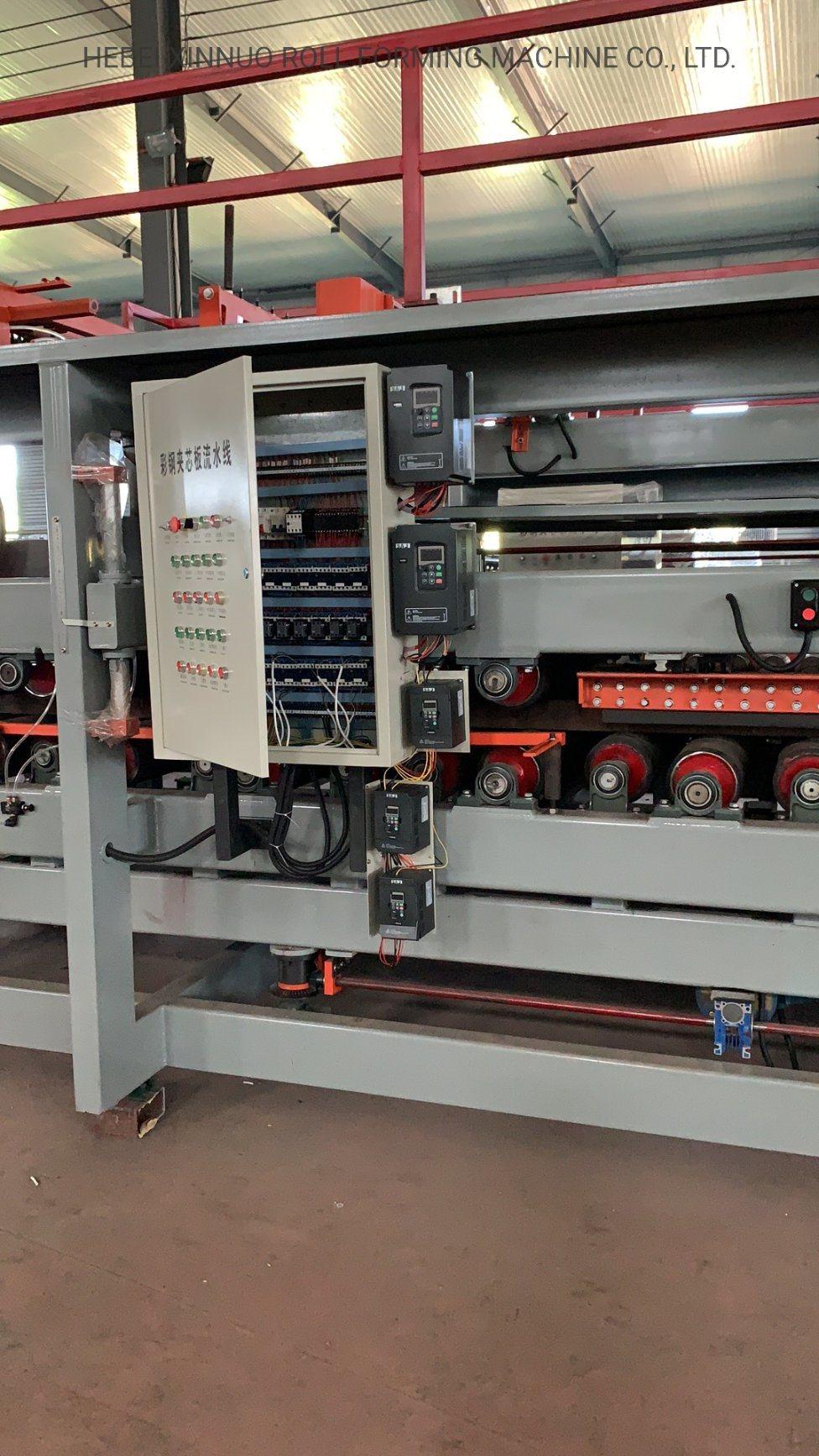

Control systemType: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Screen: Delta touch screen
Automatic length and quantity measurement
Control station is used to control product length and quantity, automatically cutting to
length and stop when required quantity is achieved.
Length Error: ±2mm
Error is easy to adjusted.
 (about the  electrical apparatus element ,customers also can specify the brand)Outpur tableIt is simple and used to load finished product.
Length:6m
 Spare Parts
 1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2).Rubber mat 1 pcs;
3).Bolt spanner 1 pcs3. Packaging & ShippingDetailed Photos
