Qt5-15 Construction Equipment Brick-Making-Machine
Shandong Shiyue Intelligent Machinery Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
- Overall Power：26.5kw
- Main Vibration Form：Platform Vibration
Base Info
- Model NO.：qt5-15
- Vibration Frequency：2800-4500(R,Min)
- Pallet Size：1100*550mm
- Vibration Force：40kn
- Block Type：Hollow Block,Solid Block,Paver Block,Curbstone
- Raw Material：Concrete, Cement, Fly Ash, Dust, Gravel, Slag, Cru
- Rated Pressure：21MPa Hydraulic Pressure
- Warranty：12 Months
- Product Name：Qt5-15 Shandong Shiyue Concrete Bricks Making Mach
- Transport Package：According to Your Need
- Specification：7400*1950*2800mm
- Trademark：shiyue
- Origin：Shandong Province China
- HS Code：8474802000
- Production Capacity：7680PCS-34560PCS
Description
Basic Info.
Model NO. qt5-15 Vibration Frequency 2800-4500(R/Min) Pallet Size 1100*550mm Vibration Force 40kn Block Type Hollow Block/Solid Block/Paver Block/Curbstone Raw Material Concrete, Cement, Fly Ash, Dust, Gravel, Slag, Cru Rated Pressure 21MPa Hydraulic Pressure Warranty 12 Months Product Name Qt5-15 Shandong Shiyue Concrete Bricks Making Mach Transport Package According to Your Need Specification 7400*1950*2800mm Trademark shiyue Origin Shandong Province China HS Code 8474802000 Production Capacity 7680PCS-34560PCSProduct Description

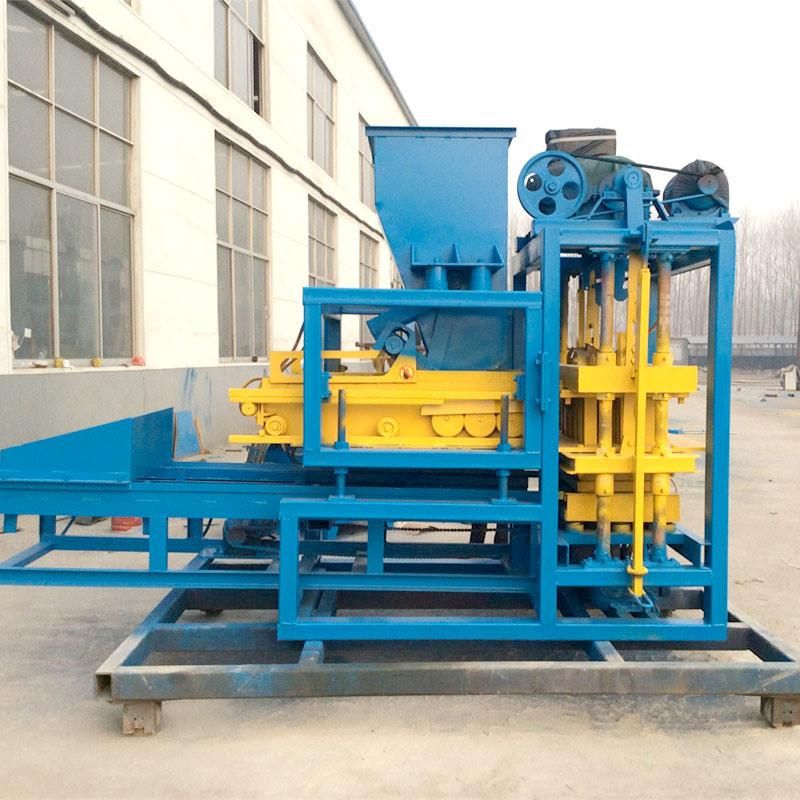

qt5-15 construction equipment Brick-Making-Machine
1. QT5-15 high quality concrete block making machine each procedure action locks with each other
to guarantee the machine operate safely, easily and dependability.
2.Through mold-releasing oil cylinder, the mold box was locked into the vibration table with high rigidity to reach
the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density,
3. It can produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.

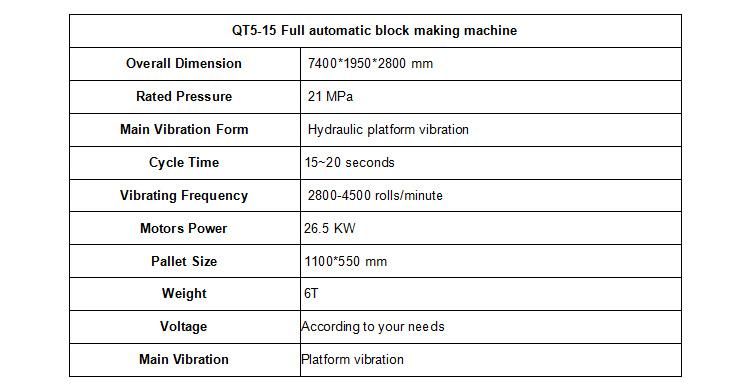

Technical Parameters

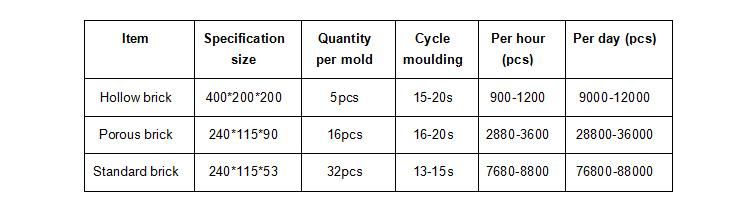

Production Capacity

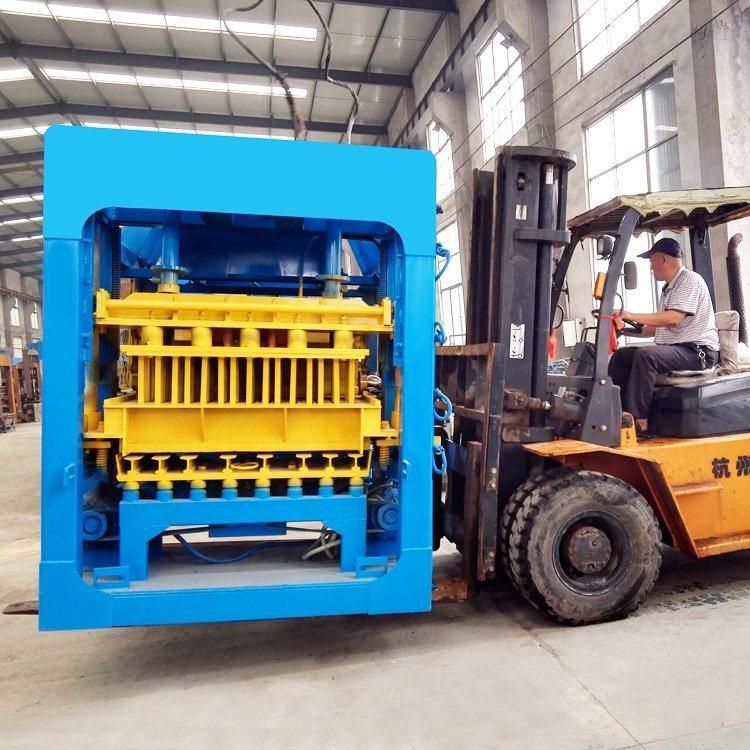

Machine Details

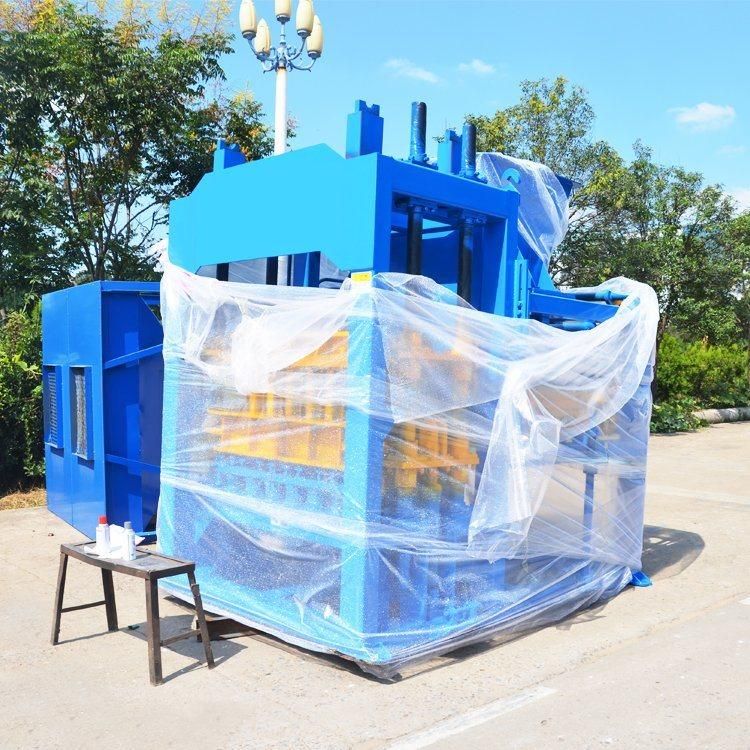

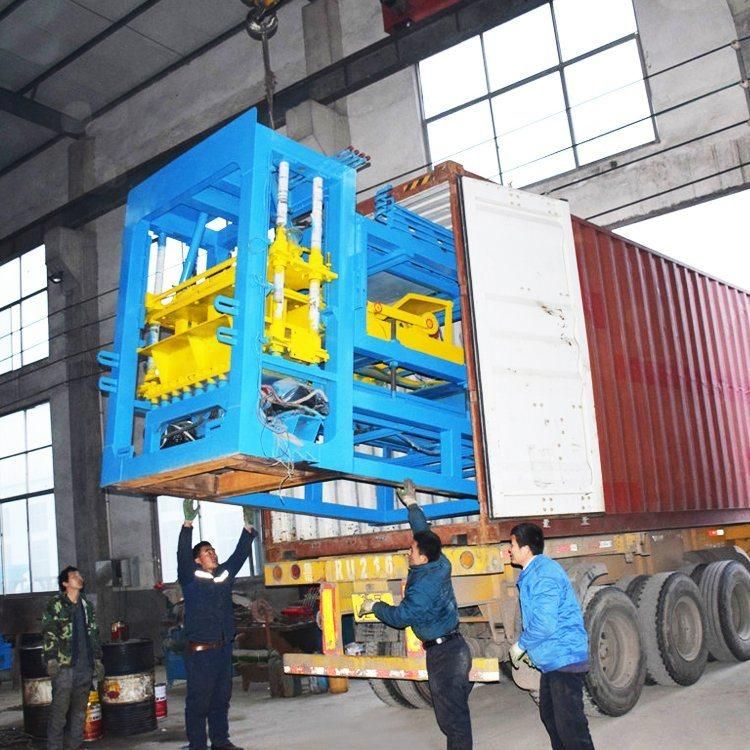

Delivery&Package

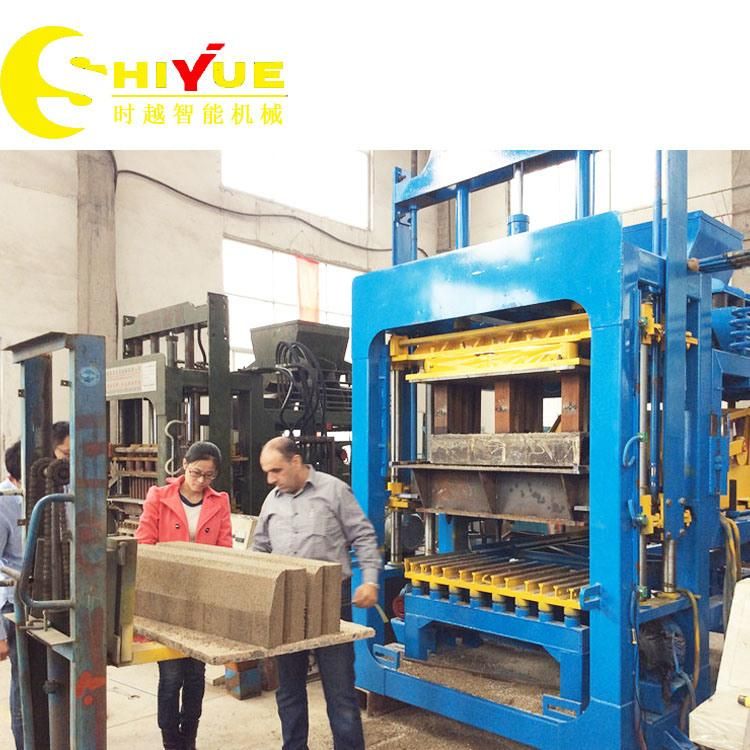

Our Factory
