• Model NO.：QT4-15
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Product Name：Full Automatic Block Making Machine
• Weight of Host Machine：5.5t
• Mixer Model：Js500
• Voltage：380,415,440V
• Host Machine Power：27kw
• Dimension of Host Machine：4000X1800X2800
• Color：Customized
• Pallet Size：1020X570X25mm
• Vibration Force：40-50kn
• Transport Package：Suitable Shipping
• Specification：QT4-15
• Trademark：KAIDONG
• Origin：Linyi
• HS Code：8474802000
• Production Capacity：200

Basic Info.

Model NO. QT4-15 After-Sales Service Provided Engineers Available to Service Machinery Overseas Product Name Full Automatic Block Making Machine Weight of Host Machine 5.5t Mixer Model Js500 Voltage 380/415/440V Host Machine Power 27kw Dimension of Host Machine 4000X1800X2800 Color Customized Pallet Size 1020X570X25mm Vibration Force 40-50kn Transport Package Suitable Shipping Specification QT4-15 Trademark KAIDONG Origin Linyi HS Code 8474802000 Production Capacity 200

Product Description

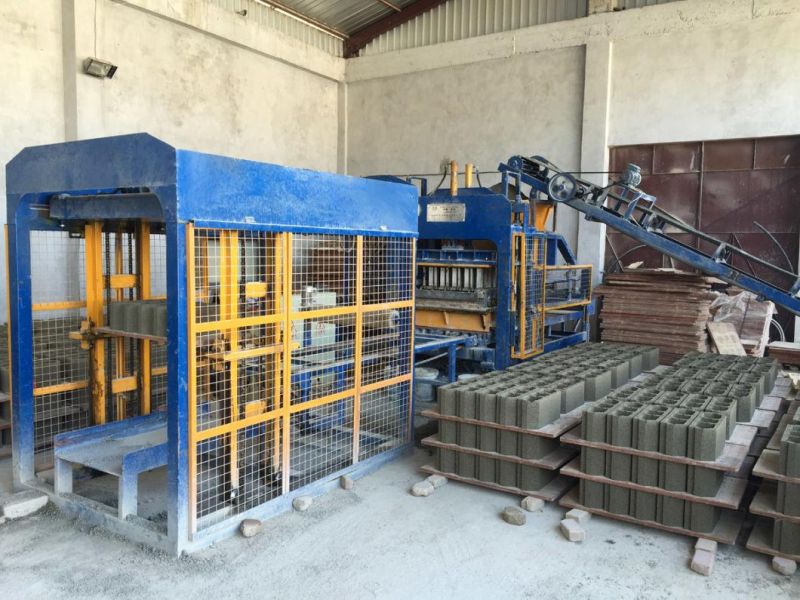

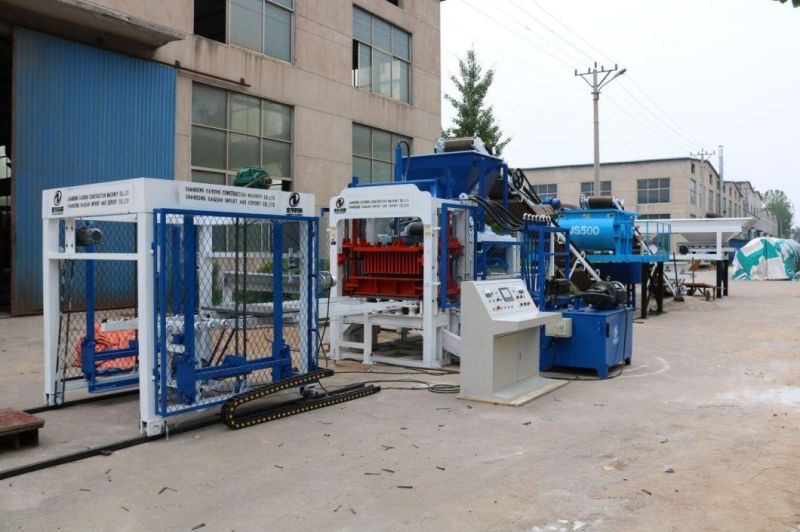

New design QT4-15 concrete block making machine with great price

The production capacity depends on this forming machine and it is also the essential part of the whole production line. You can change moulds on this parts to make different shaps of blocks, bricks, colored-paving stones and curbs.

• The process is controlled by PLC and fitted with remote control device.for PLC control system ,we usually use Japan Mitsubishi or Taiwan Brand  .

• The electricity motor for host machine we use Germany Siemens motor ,for other parts ,we use CE motor .

• about the switches ,we will use France Schneider or China CHNT

• Rakes in several rows make sure raw materials fed well-distributed.

• Hydraulic components we use Taiwan JiuGang famous brands.

• The demoulding synchronizer avoids the damage to concrete products.

• The vibration system contain two part ,one is up-moild vibbration box ,it is electricity motor to supply the power for up-mould vibration box. And the down moulld ,there have one big vobration .when the scatter material work finish ,the hydraulic power with the two vibration power will assure the good quality for product

• The mould is processed with carburizing,nitriding, wolfram carbide and quenching which ensures its strength reach to 54~58 HRC and can be used 100 thousand times.

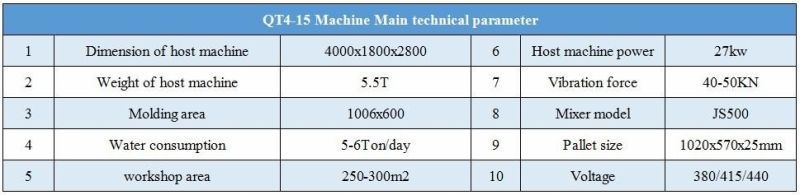

1,Main technical parameters

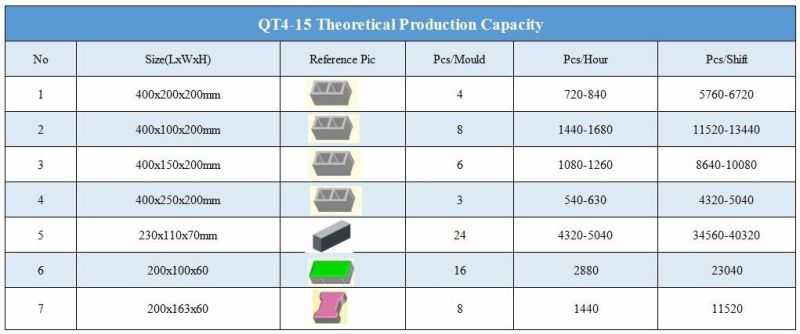

2,Production capacity
