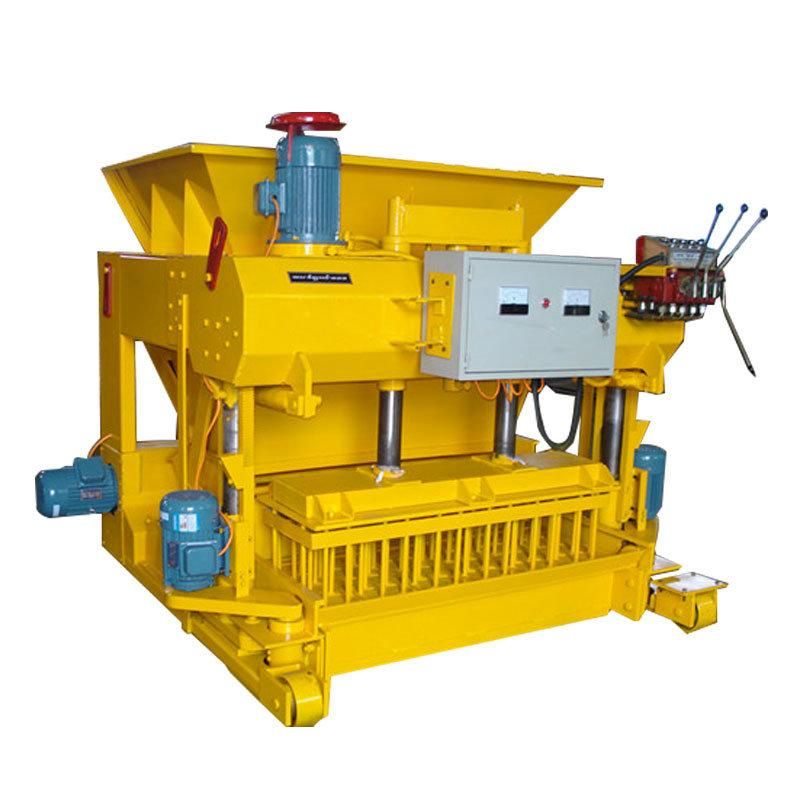

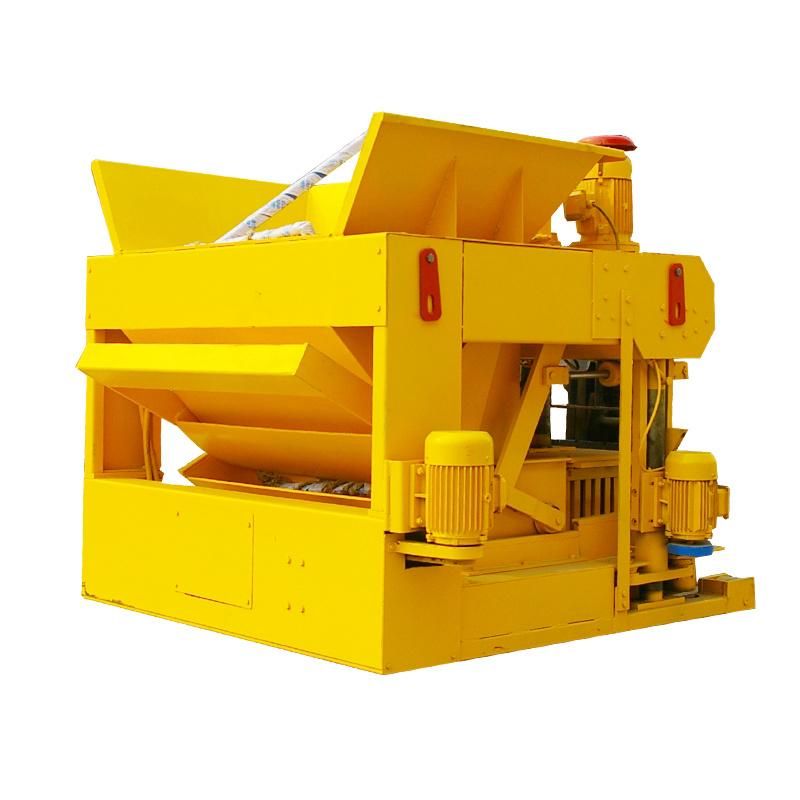

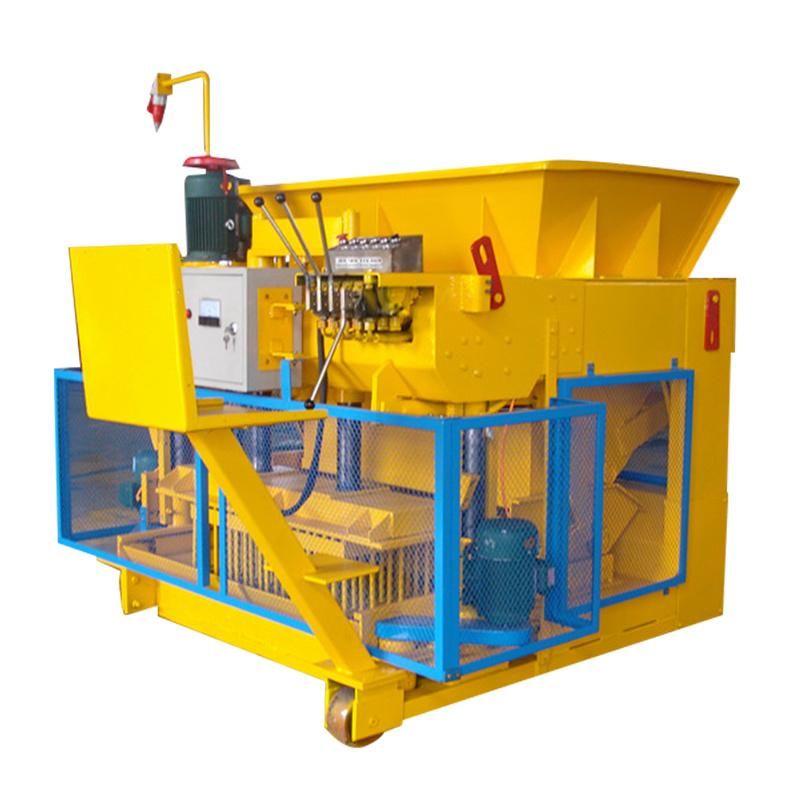

Qmy6-25 Zambia Block Making Machine
Shandong Shiyue Intelligent Machinery Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Product Name：Hollow Block Making Machine
- Walking Type：Hydraulic
Base Info
- Model NO.：QMY6-25
- Color：Client Requirement
- Vibration Frequency：2800-4500 ( R,Min)
- Weight：2500kgs
- Block Type：Hollow Block,Solid Block
- Molding Cycle：25s
- Vibration Type：Mould Vibration
- Raw Material：Cement,Sand,etc
- Power：9.6kw
- Transport Package：Standard Export Package
- Specification：2000x2100x1650
- Trademark：SHIYUE
- Origin：China
- HS Code：8474802000
- Production Capacity：5000set,Year
Description
Technical Parameters
Overall Dimension
2000*2100*1650mm
Rated Pressure
16-21MPa
Main Vibration Form
Mould Vibration
Vibration Frequency
2800~4500 ( r/min)
Pallet
No need
Molding cycle
20-25 (s)
Overall Power
9.6kw
Vibration Force
60KN
Total Mass
2.5T
Demolding method
Hydraulic
yes
Factory Area
500m2,the bigger the better
Applied Products
Concrete blocks, hollow/solid bloc
Raw Material
Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material , etc.
Advantage of QMY6-25 automatic block machine
1.This is a mobile blcok machine.
2.This machine can produce any size of hollow blocks and big solid block.
3.No need pallet,will save much cost.
4.One person can operate it.
