• Model NO.：CY1-25
• Moulding Cycle：20-30s
• Power：4kw
• Products：Soil Interlocking Bricks
• Operator：2-3
• Model：Cy2-25 Clay Brick Making Machine
• Machine Capacity：2400-3000 Bricks Per Day
• Power Supply：Electricity,Diesel
• Voltage：220V,380V,440V Three Phase
• Deal Method：Wholesale,Distributor,Retail
• Rated Pressure：16 MPa
• Machine Size：1050*800*1200mm
• Machine Weight：630 Kg
• Worker Numbers：2-3 Workers
• Transport Package：Plywood Box with Iron Angle Frame
• Specification：Electric brick machine
• Origin：China
• HS Code：8474802000
• Production Capacity：30sets , Month

Basic Info.

Model NO. CY1-25 Moulding Cycle 20-30s Power 4kw Products Soil Interlocking Bricks Operator 2-3 Model Cy2-25 Clay Brick Making Machine Machine Capacity 2400-3000 Bricks Per Day Power Supply Electricity/Diesel Voltage 220V/380V/440V Three Phase Deal Method Wholesale,Distributor,Retail Rated Pressure 16 MPa Machine Size 1050*800*1200mm Machine Weight 630 Kg Worker Numbers 2-3 Workers Transport Package Plywood Box with Iron Angle Frame Specification Electric brick machine Origin China HS Code 8474802000 Production Capacity 30sets / Month

Product Description

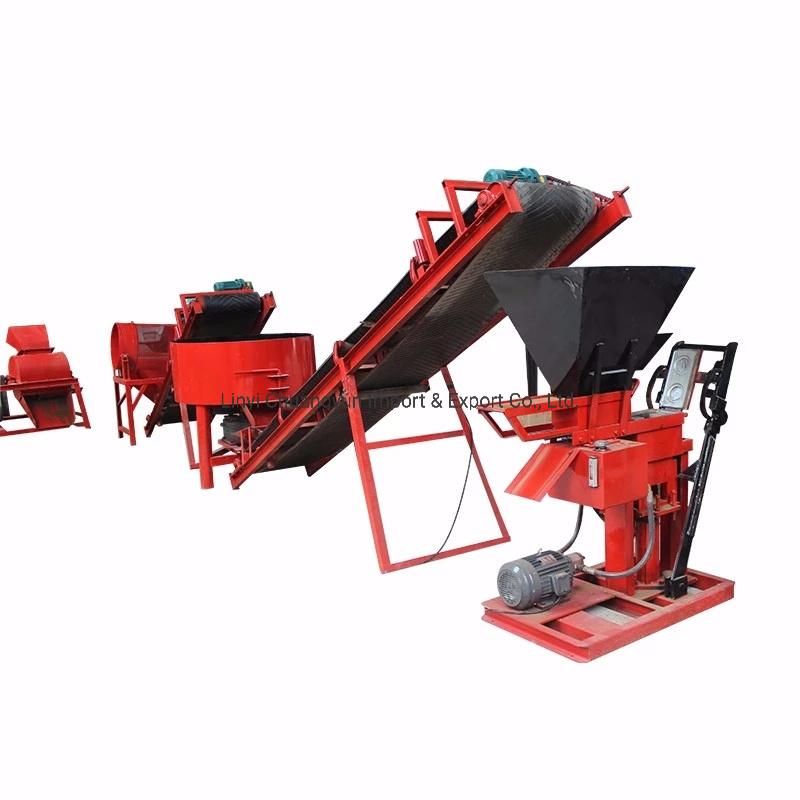

Semi automatic  clay interlocking hydraform block machine earth paver brick machine in Nigeria(CY1-25)









Features:

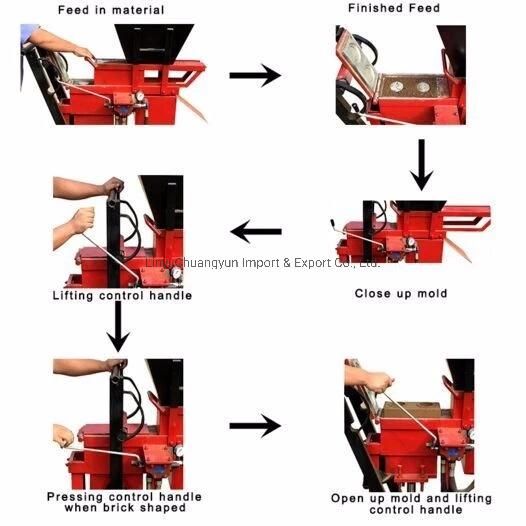

1. ECO BRAVA clay block machine is our newest clay and cement brick making machine. It is manual operation machine, but only need 1 people.

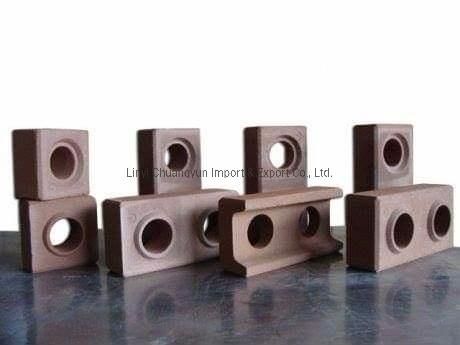

2. You can choose diesel engine or electric motor. This machine enable to produce varied models of blocks, bricks and floors in only one equipment, without the need of buying another machine.
3. Manufactured with precision in a Machining Center, its interior receives a thermal treatment and is rectified. Compound by modeler wombs interchangeable enabling flexible of different forms and models for the pressed blocks, bricks and floors.





Technical specifications:

Machine power	Electric or diesel engine
Molding cycle	20s
Capacity	1400pcs/8hours

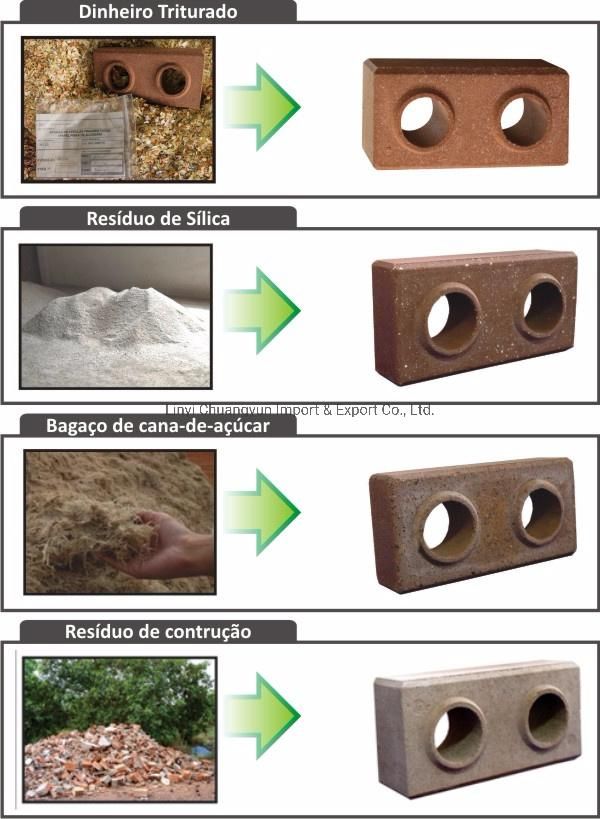

Raw material	clay,soil,earth,mud,concrete, sand,cement, fly ash,etc.
Machine weight	500KGS
Overall size	1200*800*1750mm
Worker	1 people
Hydraulic pressure	16 Mpa

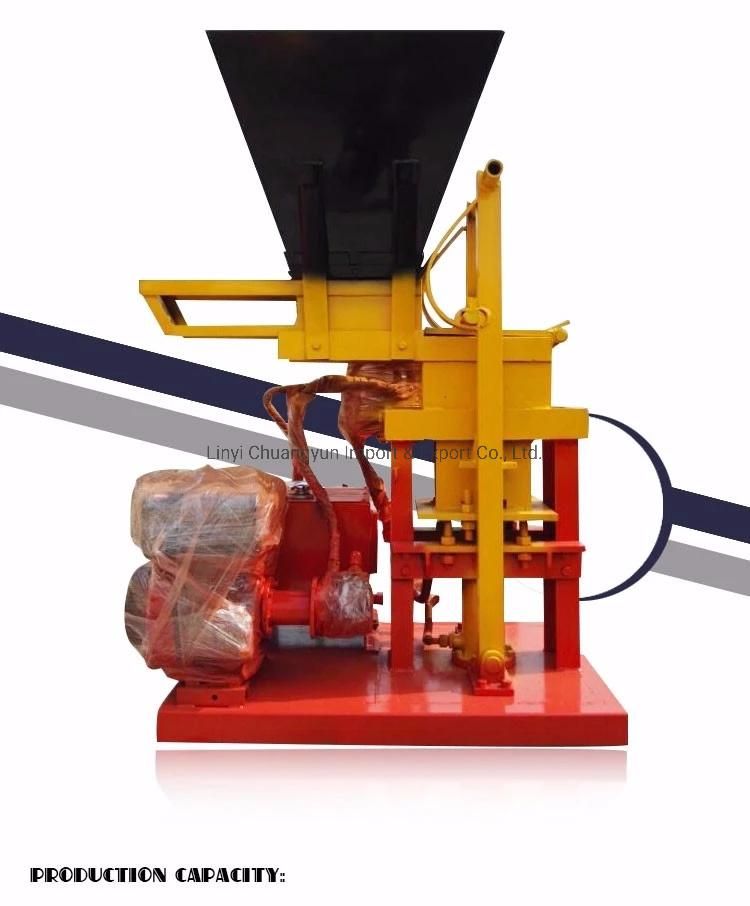

Production capacity

No.	Block size	Pcs/mould	Pcs/hour	Daily capacity
1	300*150*100mm       or 250*125*75mm	1	180-200	1400-1500

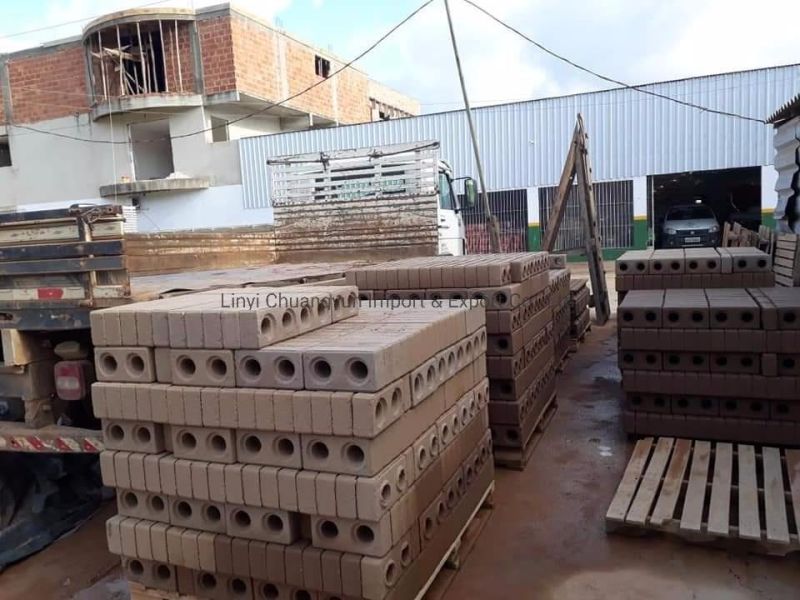

 Applied fields: It is widely used in buildings, road paving, squares, gardens, landscaping, city constructions etc.
