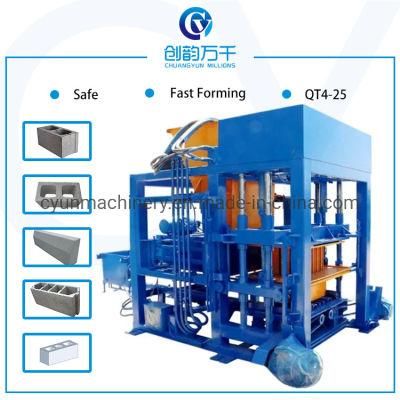

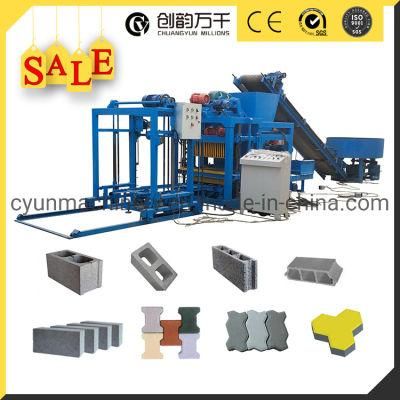

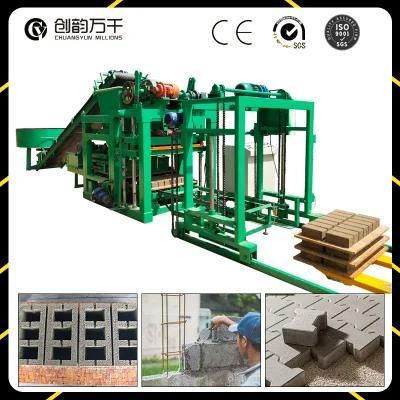

Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)

Linyi Chuangyun Import & Export Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Vibration Molding
  • Material Feeding：Automatic
  • Mixer：Jq500

Base Info

  • Model NO.：QT4-25
  • Products Available：Hollow Blocks, Paving Stones, Kerbstones, Hourdis
  • Shaping Cycle：20-25 Seconds
  • Machine Weight：3t
  • Pallet Size：850*550mm
  • Capacity for 240*115*53mm Brick：21-26PCS , Mould
  • Shift Capacity：70m3
  • Rated Power：21kn
  • Electrical Source：380V,50Hz
  • Vibration Frequency：2800-4200r,M
  • Power：17.9kw
  • Over Size：3600*1650*2200mm
  • Factory Area：1000-1500m2
  • Worker Numbers：5-6 Workers
  • Transport Package：Nude Package in 20FT Container
  • Specification：235 steel for machine frame
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：5760-28800PCS , Year

Description

Basic Info.

Model NO. QT4-25 Products Available Hollow Blocks, Paving Stones, Kerbstones, Hourdis Shaping Cycle 20-25 Seconds Machine Weight 3t Pallet Size 850*550mm Capacity for 240*115*53mm Brick 21-26PCS / Mould Shift Capacity 70m3 Rated Power 21kn Electrical Source 380V/50Hz Vibration Frequency 2800-4200r/M Power 17.9kw Over Size 3600*1650*2200mm Factory Area 1000-1500m2 Worker Numbers 5-6 Workers Transport Package Nude Package in 20FT Container Specification 235 steel for machine frame Origin China HS Code 8474802000 Production Capacity 5760-28800PCS / Year

Product Description

Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)


Machine description:

1. QT4-25D is one of kind of automatic block machine, which is developed on the basis of small and medium model. The position-setting of the mold and the discharge head are more accurate. The down-mould adopts the vertical, directional vibrating device while the up-mold uses the pressure vibrating. So the blocks made by this machine are even, high in density and strengh. Also the automatic material distributing system greatly increase the productivity.

2. This machine is with automatic control system, it is easy to operate and can work reliably.

3. This machine is with high vibrating frequency and strong vibrating force to insure that the strengh of the finished block is strong enough to meet the international standard and the industry standard.
Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)
Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)
Main technical parameters

Over Size3600*1650*2200mm
Power17.9kw
Cycle25-30s
Pallet Size850*550*25mm
Vibration Frequency 2800-4200r/m
Electrical Source380V/50Hz
Mixer ModelJQ500

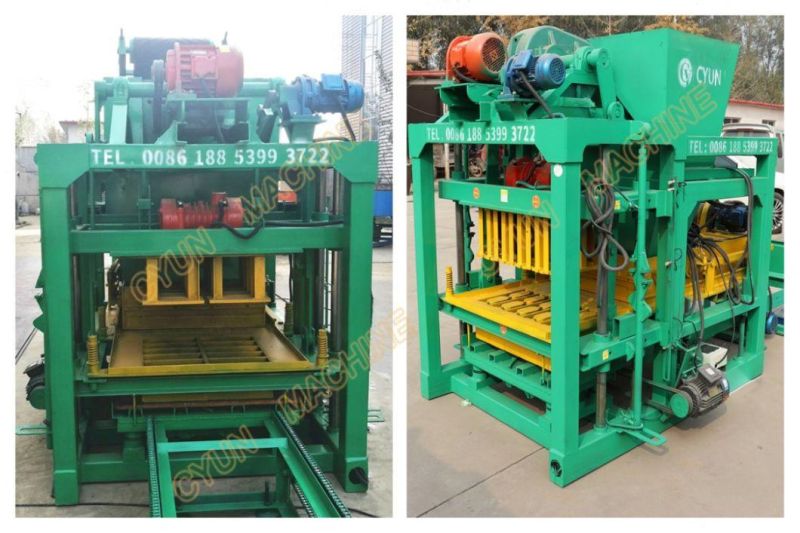

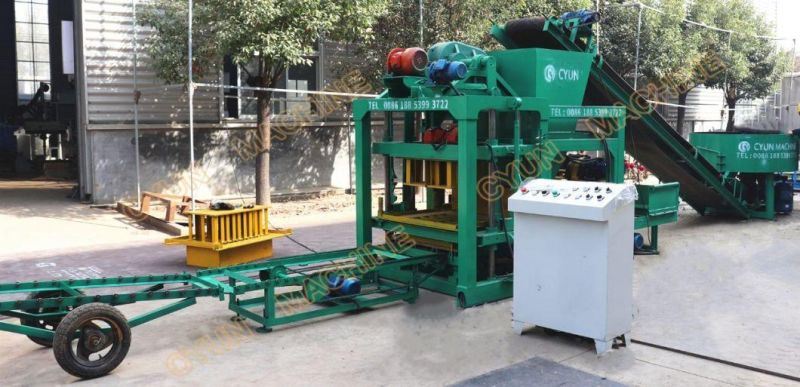

Machine details

Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)

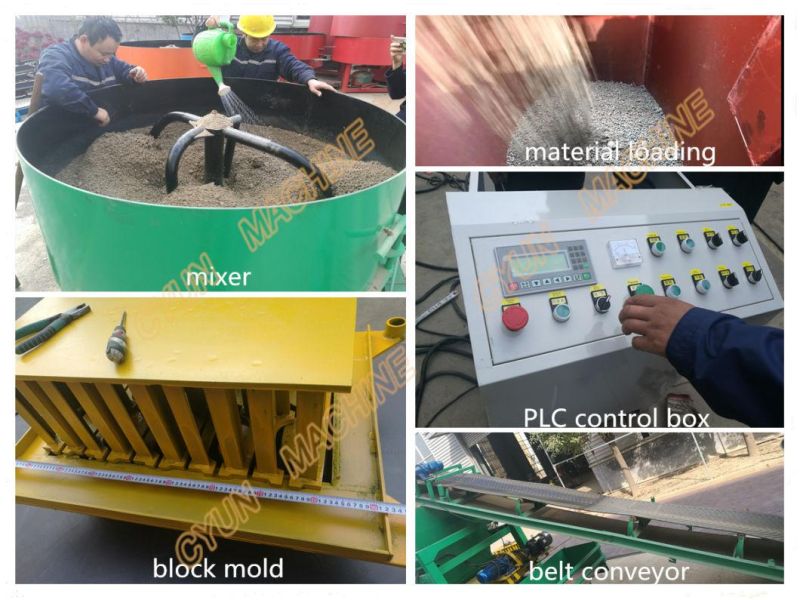

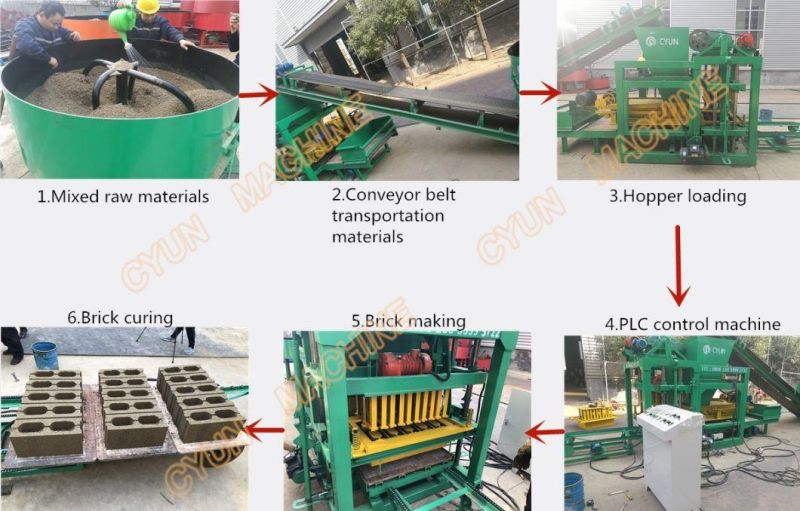

Brick Making Process

Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)

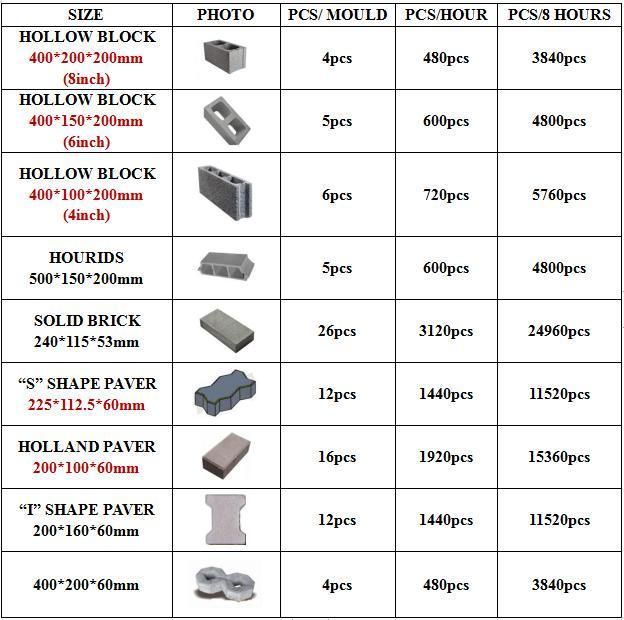

Production Capacity

Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)

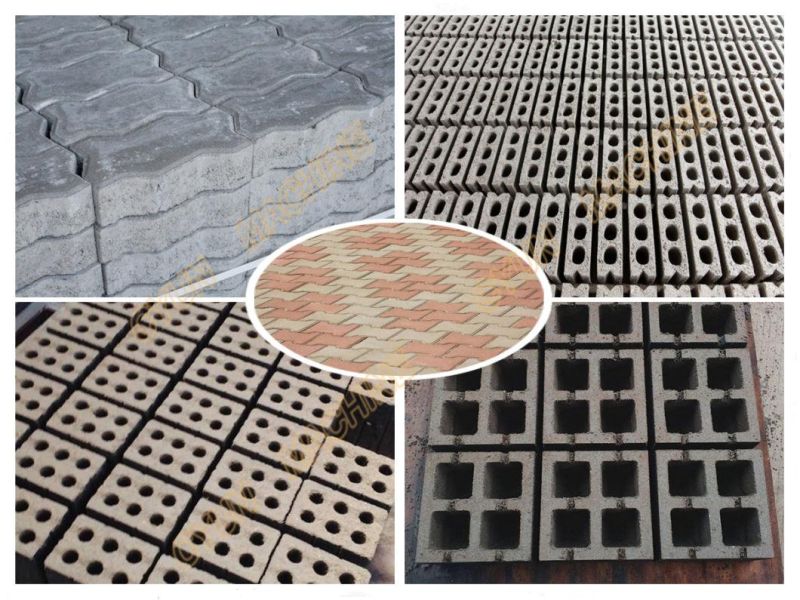

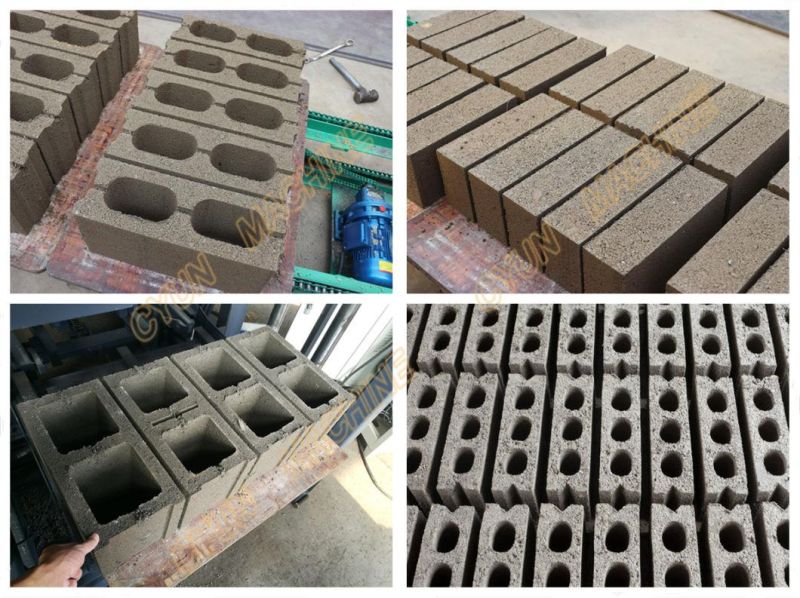

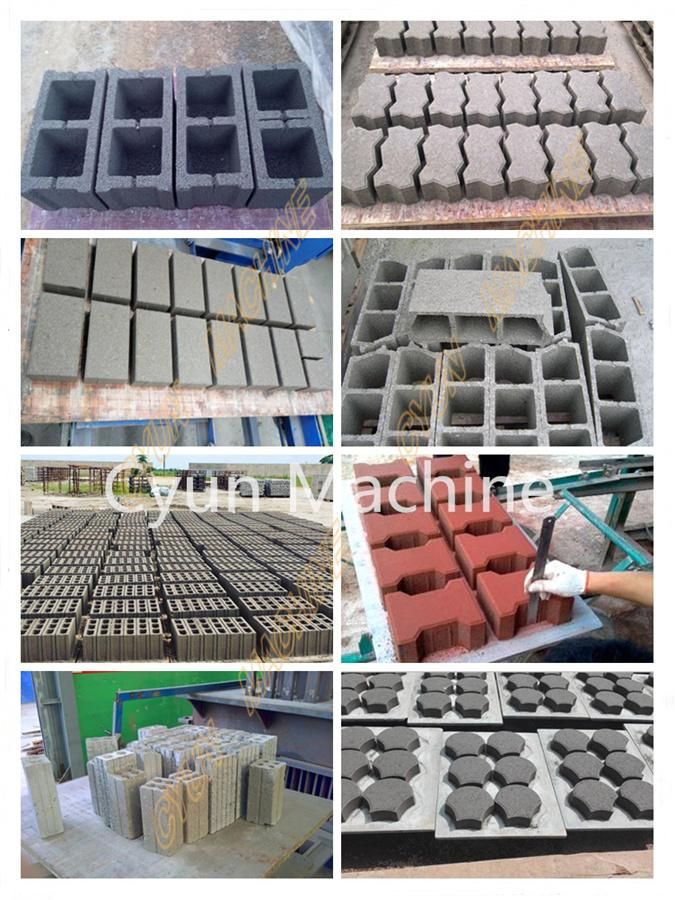

Block Sample and Showing

Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)
Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)
Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)

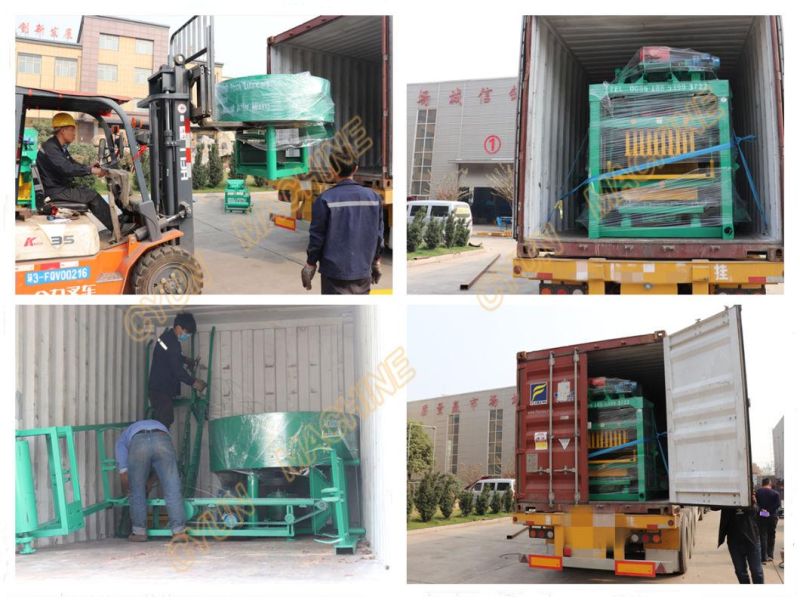

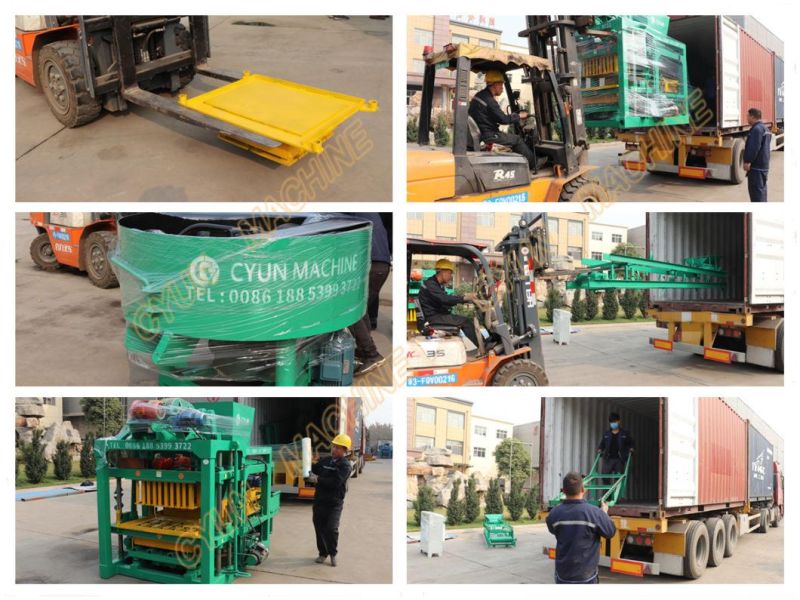

Machine loading and delivery


Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)
Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)

About us

Our Company

Chuangyun Machinery is a professional manufacturer with 20 years history in concrete block machine and clay interlocking brick machine. Chuangyun Machinery factory is located in Linyi city, Shandong Province, China.

Chuangyun Machinery has been export to more than 100 countries, and are popular brick machine in Africa, South America, Asia because of the quality and good service.

Chuangyun Machinery will keep moving in improving quality of machine, perfecting after-sale service and developing new machines to meet various needs of customers.

Chuangyun Machinery will support customers with more and more success !
Easy Building Automatic Stationary Solid Block Making Machine Line (QT4-25)
Our Service

Pre-Sale

1. Introduce the company's basic information, product catalog and basic machine production process.
2. Welcome to visit our company and products any time. If you need, we can make invitation letters for you.
3. 24 hours online service.
After-Sale

1. Ste up, fix, and operate if buyer need.
2. Provide machine-operated videos and pictures.
3. Send the accessories you need at any time.
Guarantee

1. Guarantee period: One year after installation finished at buyer's factory.
2. Within one year, if the customer encounters unsolvable problems, The engineers will selectively fly to customers for local help.

FAQ:

Q1: How can i trust your machine's quality?
A: Our products have been checked and got certification ISO9001, and we have exported to many countries and regions in the world, with good reputation and quality of customer feedback. In addition, every machine is carefully tested before shipment to ensure that the machine is operating perfectly when it comes to your hand.

Q2: What about payment terms?
A: 30% Deposit before production,70% before delivery when machine is ready for shipments.

Q3: What is the area required by the factory and the minimum required area of the machine production line?
A: Factory Area for QT4-25 brick making line: 1000-1500m²
Shelter for Machines: 60m²(6*10m)


Q4:How long is the delivery time?
A:20-30 days after receipt of deposit and molds confirmation from Buyer.
