• Thickness：0.8-1.5mm
• Length：0.5-3m
• Transport Package：Shipping, Rain-Roof
• Specification：800*1000*12000
• Trademark：ZhangYun
• Origin：Zhangjiagang City
• HS Code：8463900010
• Production Capacity：15sets,Month

Basic Info.

Thickness 0.8-1.5mm Length 0.5-3m Transport Package Shipping, Rain-Roof Specification 800*1000*12000 Trademark ZhangYun Origin Zhangjiagang City HS Code 8463900010 Production Capacity 15sets/Month

Product Description

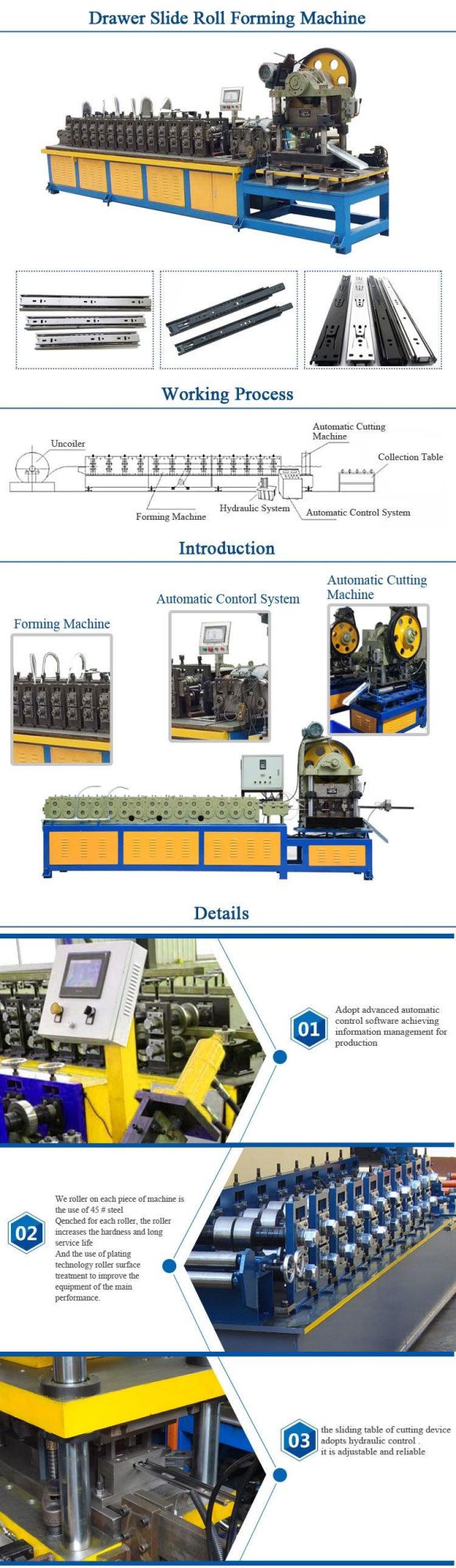

 Drawer Slide Cold Roll Forming Machine




Description	Drawer Slide/Telescopic Channel Rolling Machines
Material	Q235 or Stainless Steel
Thickness	0.8-1.5mm
Length	0.5-3M
Product Optional	Drawer slides in 30mm, 32mm, 35mm, 37mm, 42mm, 45mm, 53mm, etc
Feature	3-fold Ball Bearing
Main Motor Power	11Kw
Forming Speed	6-10m/Min
Shaft Diameter	50mm
Electrical System	Delta PLC Control
Machine Size	800*1000*12000mm
Weight	2.5T

Full Drawer Slide Rail Prodution Line:

Item Name	Decription	Quantity
Roll Forming Machine	12/14 Nos. Roll; with Punching & Cutting Mould;-for inner slide, middle slide, outer slide	3 sets
Ball Cage Production Line	25T punch press + feeder + motor decoiler	1 set
Auto Ball Assembling Device	For ball cage & steel balls & middle slide & oiling	1 set
Outer Slide Oil Adding Device	For outer slide oiling	1 set
Ball Pressing Machine	For plastic strip assembling with steel balls	1 set
Rivet Assembling Machine	For rivet assembling with plastic piece	1 set
End Bending Power Press	With Bending Mould -for outer slide end bending	1 set
Adjustment Power Press	Final step for QC; with Adjustment Mould - for slides tighten or loosen	3 sets





FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
