• Model NO.：CLMG-170
• Input Power：2.2kw
• Rating Oil Pressure：16MPa
• Air Pressure：0.6-0.8MPa
• General Pressure of Corner Combining：48kn
• Machine Dimension：1300*1200*1300mm
• Weight：500kg
• Profile Processing Width：90mm
• Corner Crimping Casing Movement Journey：0-85mm
• Capability of Oil Box：20L
• The Adjustable Range of The Main Locatio：54mm
• Application：Aluminum Window Frame Assembly Machine
• Front Positioning Panel：Automatically up and Down
• Applicable Material：Aluminum Profile
• Color：Optional
• Transport Package：Wooden
• Specification：CLMG-170
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLMG-170 Input Power 2.2kw Rating Oil Pressure 16MPa Air Pressure 0.6-0.8MPa General Pressure of Corner Combining 48kn Machine Dimension 1300*1200*1300mm Weight 500kg Profile Processing Width 90mm Corner Crimping Casing Movement Journey 0-85mm Capability of Oil Box 20L The Adjustable Range of The Main Locatio 54mm Application Aluminum Window Frame Assembly Machine Front Positioning Panel Automatically up and Down Applicable Material Aluminum Profile Color Optional Transport Package Wooden Specification CLMG-170 Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

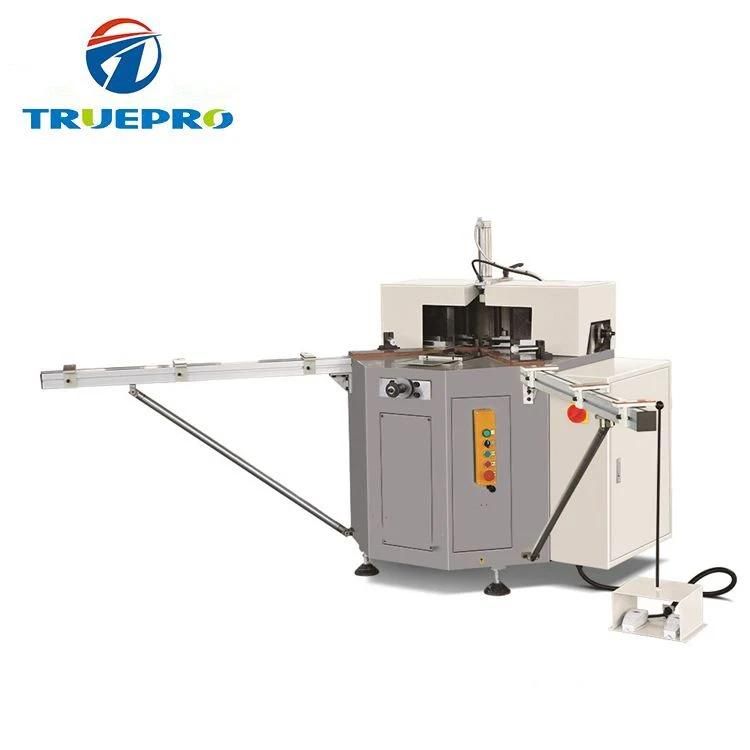

 Good Quality Aluminum Window Door Making Machine/Aluminum Single Head CornerCrimping Machine



Machine feature:
1.Adopts mechanical linkage structure, realizing completely synchronous corner crimping.
2. Inner corner location device adopt adjustable locating device. It is suitable for various sections and sizes.
3. It can be configured with double-edge combining cutters, which strengthens the corner combining.
4. PLC control, stable and reliable.
Parameter:

Model	CLMG-150
Power Supply	380V/50HZ
Input Power	4KW
Air Pressure	0.6~0.8MPa
General pressure of corner combining	48KN
Capability of oil box	20L
Corner crimping casing movement journey	0-50mm
Profile width	90mm
Connection seam error	≤0.15mm
Overall Dimension	1300*1200*1300mm
Weight	500Kg

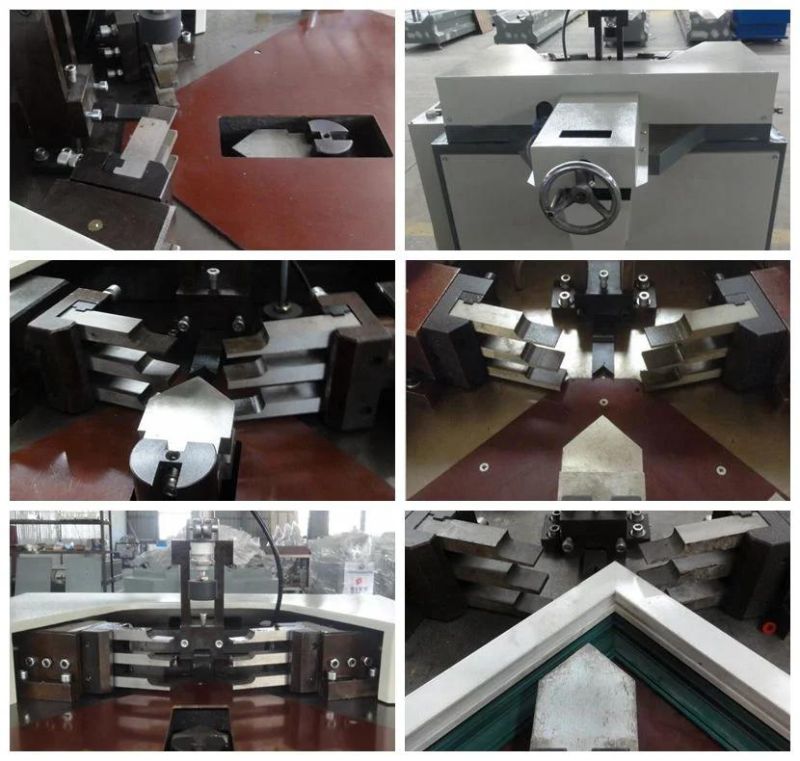

Machine details:





Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
