High Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming Machine

General Industry Tech Hebei Developing Co., Ltd.
  • After-sales Service：Video Techenical Support
  • Warranty：2 Year
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：ztrfm
  • Usage：Roof, Wall
  • Transmission Method：Chains
  • Name：Wall Panel Cladding Machine
  • Voltage：380V,50Hz,3phase
  • Power：7.5kw
  • Machine Structure：Steel Plate Welded
  • Basic Frame：400h Steel
  • Shaft Material：45# Steel
  • Roller Material：Cr40
  • Roller Station：18 Rows
  • Hydraulic Station Power：4kw
  • Blade Material：Gcr12 Quenched
  • Cutting Type：Double Pillar
  • Original：China
  • New or Old：New
  • Automatic or Manual：Automatic
  • PLC Brand：Delta
  • Transport Package：Stardard Packing
  • Specification：9500*1450*1500
  • Trademark：ZTRFM
  • Origin：Botou, Hebei, China
  • HS Code：8474801
  • Production Capacity：300 Sets,Year

Description

Main motor power7.5 KWRoller material40CrRoller shaft material45# steelWork speed0-20 m/minDimesion7500*1650*1500mmStructureMiddle plate welded frame structureMain frame350 H steel weldedDrive modeChains driveControl systemPLC control systemHydraulic station4kwCutting typeHydraulic cuttingCutter materialGCr12 chromed and quenched for good hardness and using
Working flow
High Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming Machine

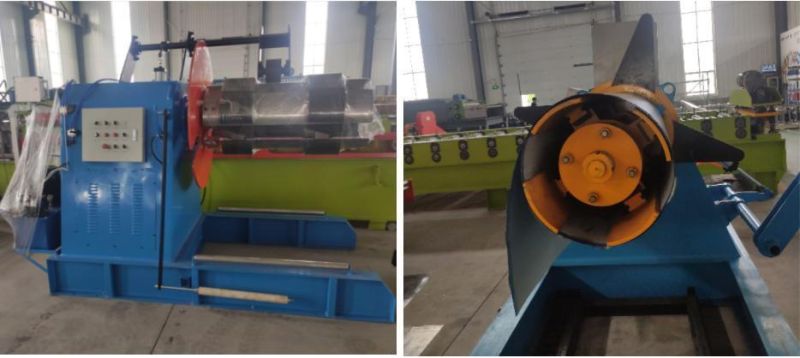

1.Hydraulic Decoiler work type: hydraulic usage: to support the coil and make the uncoiling capacity: 5 tonsinner diameter: 450-550mmcoil width: 1250mm

High Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming Machine

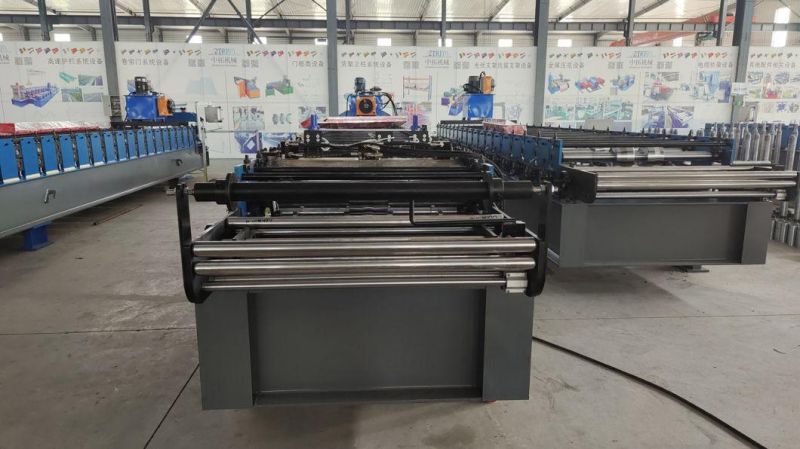

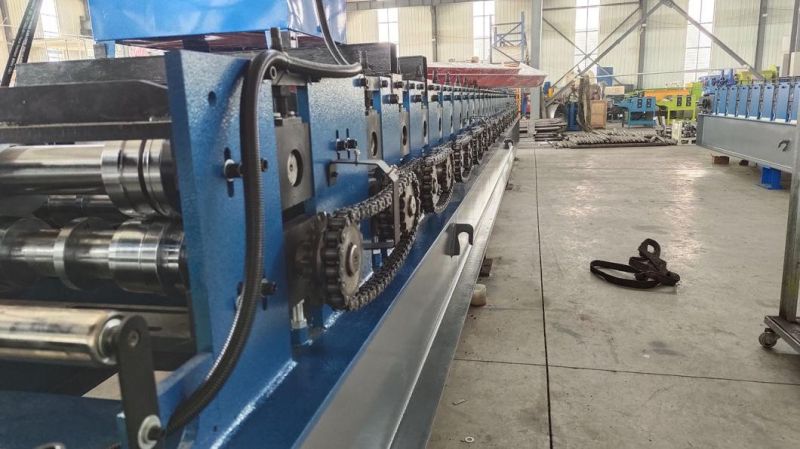

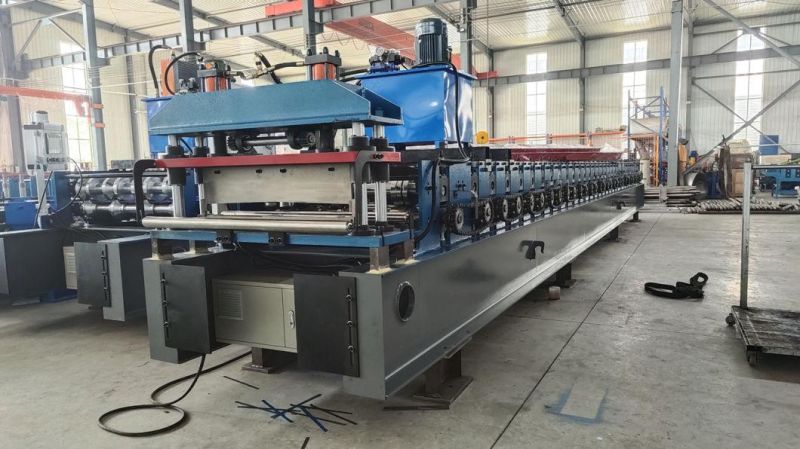

2.Main roll forming machineFeeding device: With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers. Machine frame: 350H steel welded Machine structure: middle plate Roller station: 15 stationsRoller material: 45# steel withquenched treatment and hard chroming Shaft diameter: 80mm,solid Shaft material: 45# steel with tempering treatment Motor power:5.5 kw Speed: 0-20m/min Transmission: By chains Voltage: 380V,50HZ,3PhaseHigh Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming Machine
High Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming Machine
High Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming Machine
3.PLC control stationPLC brand: Delta from Taiwan Frequency converter brand: Delta from Taiwan Encode: Omron Function: Automatic control the length,quantity and batch

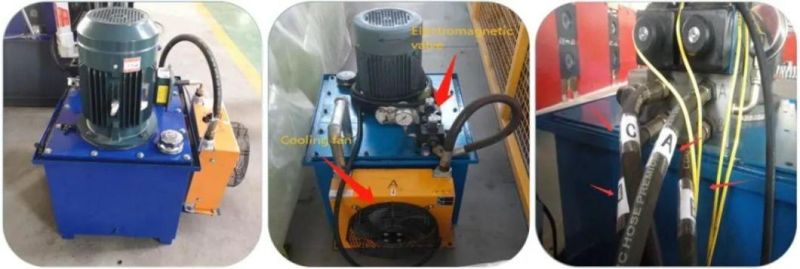

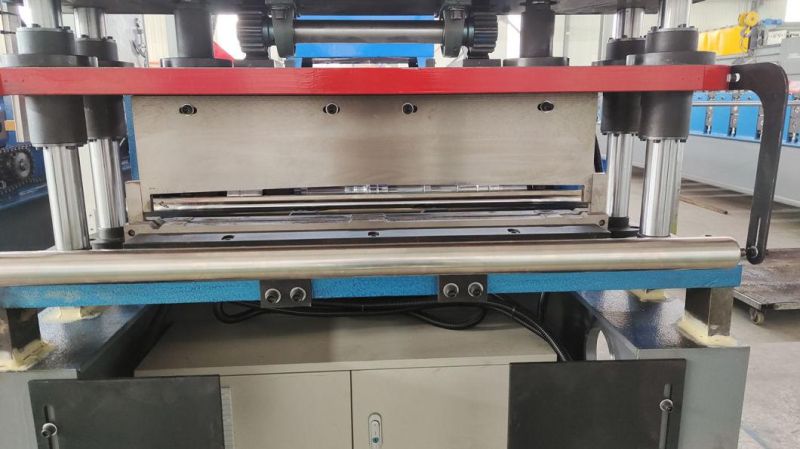

High Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming Machine4.Hydraulic cutting systemBlade material: Cr12,with quenched treatment Motor power: 4 kw Cutting tolerance: +/-1 mm Cooling system: with cooling fan Cutting type: Hydraulic cutting Feature: Low noise and high performance

High Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming Machine
High Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming Machine

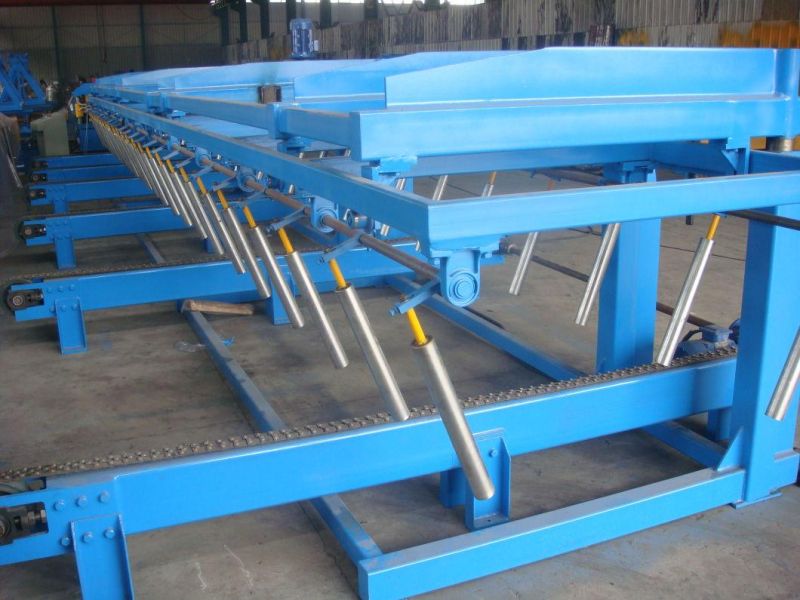

5.Automatic stackerLength: 3m,6m,9m,12m
High Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming Machine

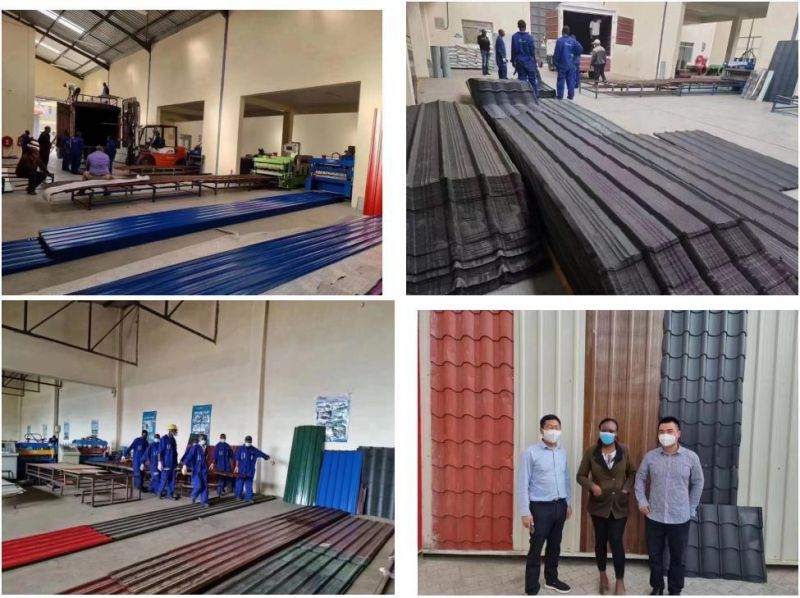

Feedback from Customers
High Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming MachineHigh Quality Wall Panel Cladding Machine Siding Steel Wall Panel Roll Forming MachineFAQ:
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
     2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
    2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
    3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
