Qmy6-25 Automatic Block Making Machine
Shandong Shiyue Intelligent Machinery Co., Ltd.- Certification：CE, ISO, According to Your Needs
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
- Name：Qmy6-25 Automatic Block Making Machine

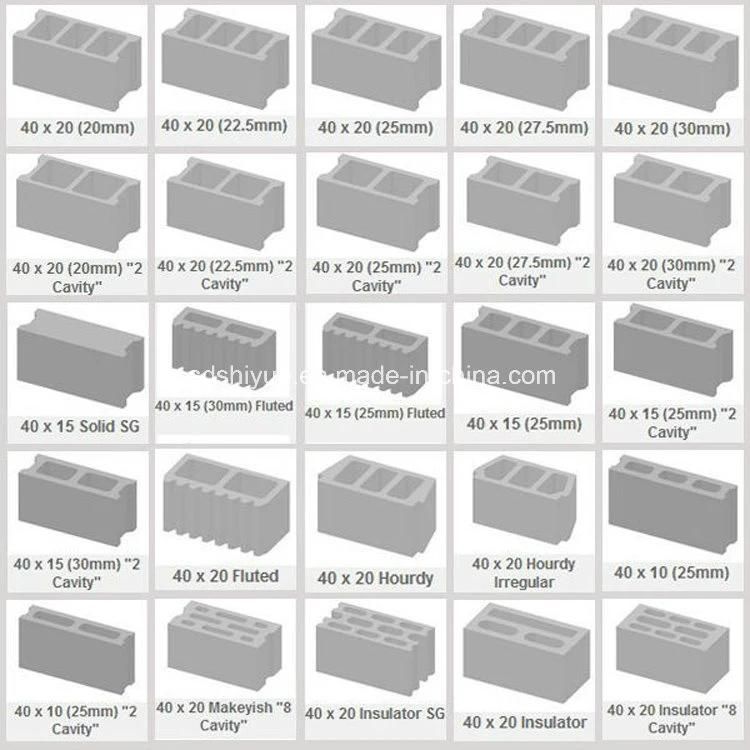

- Block Types：Hollow Blocks,Solid Bricks and So on
Base Info
- Model NO.：QMY6-25
- Raw Material：Concrete,Cement,Sand,Flyash,Sand and So on
- Workers：2-3
- Technology：German
- Weight：2.5t
- Molding Cycle：15s
- Color：Changeable
- Motor Brand：According to Your Needs
- Mobile：Yes
- Transport Package：Nude Packages According to Your Needs
- Specification：6000-8000pcs,8 hours
- Trademark：shiyue
- Origin：Shandong, China
- HS Code：8474802000
- Production Capacity：5000sets, Year
Description
Overall Dimension
2000*2100*1650mm
dimension of host machine
2000*2100*1650mm
Rated Pressur
6-8MPa
Main Vibration Form
Moulding Vibration
Vibration Frequency
3500 ( r/min)
Pallet Size
no needs
Molding cycle
15-25 (s)
Overall Power
9.6KW
Host machine power
9.6kw
Vibration Force
40KN
General water consumption
4T/day
Total Mass
2.5T
Demolding method
Hydraulic
Mixer model
JQ500/JD500/JS500
Molding area consumption
400*800mm
Factory Area
500m2

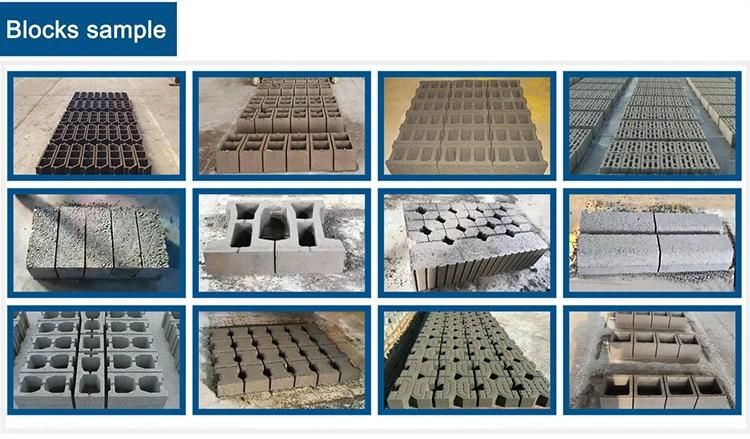

Applied Products
Concrete blocks, hollow/solid blocks, pavers, interlocking
blocks ,
Raw Material
Crushed stone, sand , cement, dust, and fly ash, gravel,
slag, and
other raw material , etc.
Applied Fields
widely used in buildings, road pavers, squares, gardens,
landscaping,
city constructions, etc.
certificate
ISO9001/CE/SGS
Warranty
1YEAR
Processing
Brick Production Line
Automatic
YES
After-sales Service Provided
Engineers available to service machinery overseas

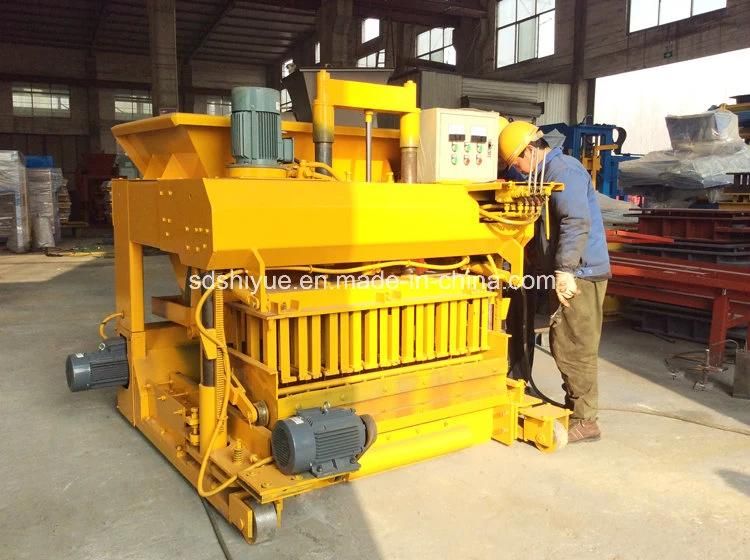

Machine photos
Capacity

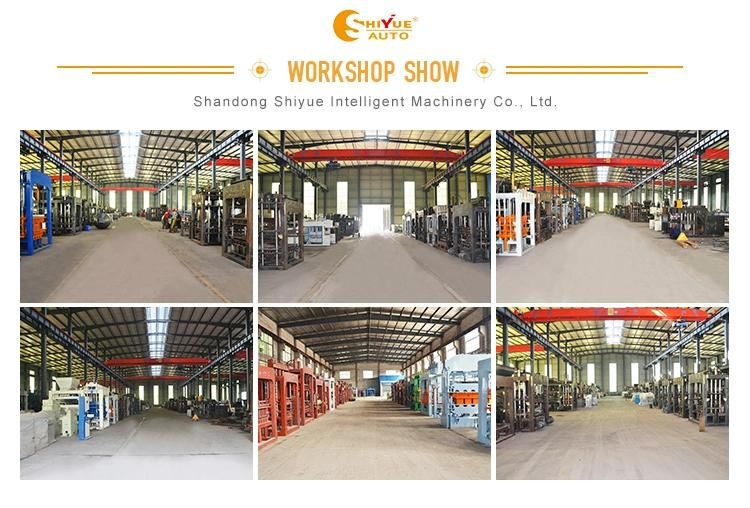

Our company
Shiyue Machinery is a professional manufacturer which is engaged in independently researching and developing, manufacturing and selling crushing equipment,block machine etc construction building machines. We have exported product to many countries, such as Mongolia, Russia, Philippines,India, Vietnam, Uzbekistan, Kyrgyzstan, Kazakhstan, Nigeria, South Africa,Oman ,Botswana, America etc. What's more,we receive good feedback about service and quality. We are not main for sales, but also for development of the market all over the world. Do our best to satisfy customers' need and gurantee quality is our principal .With 27 years' brick block machine manufacture & export experience,welcome all the customers to our company and build business relationship with us.
FAQ
1. Q: What is the molds sizes ? i want to make a special one
A: It is noproblem ,All kinds of mould can be made by customer's drawings
2.Q: How is about the payment terms ?
A: It is usually T/T 30% down payment, 70% upon machinery completion, we can also do other payment terms
3. Q:When will your side delivery the machine for me ?
A: The machine usually be shipped within 20days after the deposit,and it also depends on the other conditions
4. Q:How is about the package ?
A: Nude packing,or according to your needs
5. Q: How is about the warranty ?
A: All the machine enjoys one year's warranty, in this period , any problems or partsof the machine, please feel free to contact us . We will try our best to make it .
