Qt4-15 Automatic Hydraulic Paving Brick Molding Machine

Shandong Shiyue Intelligent Machinery Co., Ltd.

Certification：CE, ISO
Customized：Customized
Automatic Grade：Automatic
Type：Vibration Molding
Overall Power：27.5kw
Main Vibration Form：Platform Vibration

Base Info

Model NO.：QT4-15
Vibration Frequency：4600(R,Min)
Pallet Size：1020*570mm
Vibration Force：40kn

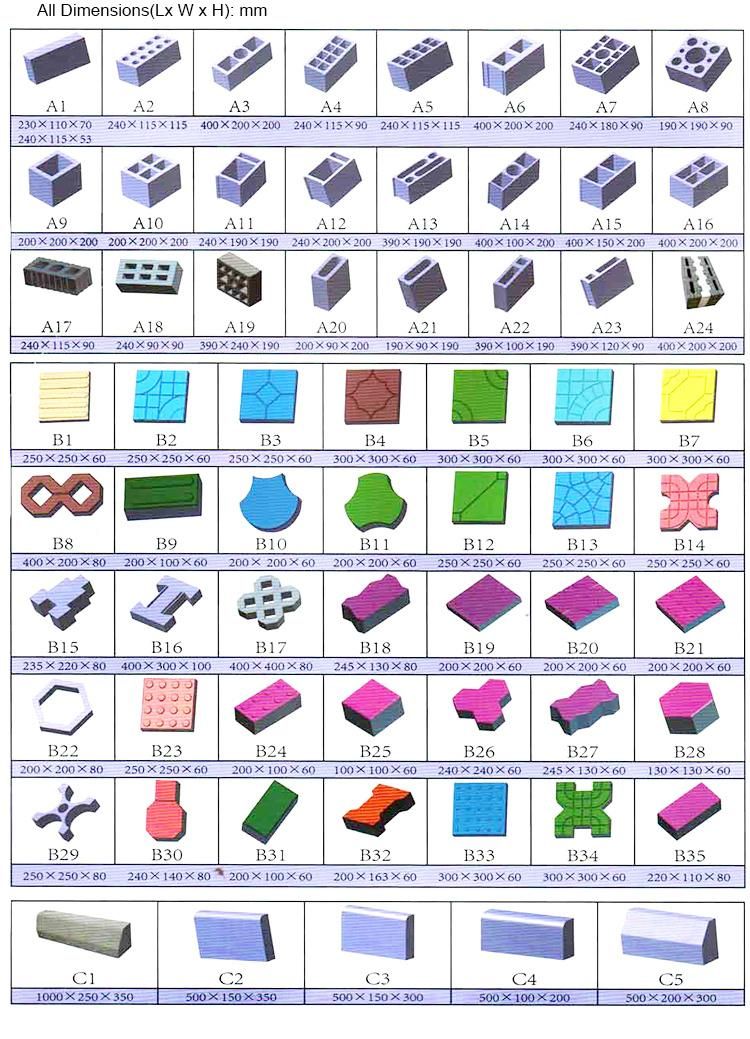

Block Type：Hollow Block,Solid Block,Paver Block,Curbstone
Raw Material：Concrete, Cement, Fly Ash, Dust, Gravel, Slag, Cru
Rated Pressure：16MPa Hydraulic Pressure
Warranty：12 Months
Product Name：Qt4-15 Automatic Hydraulic Block Molding Machine P
Transport Package：According to Your Need
Specification：7100*1600*2610mm
Trademark：shiyue
Origin：Shandong Province China
HS Code：8474802000
Production Capacity：7680PCS-34560PCS

Description

Host Machine Power

27.5KW

Moulding Cycle

15s

Dimension Of Host Machine

7100*1600*2610mm

Pallet Size

1020*570mm

Weight Of The Host Machine

5T

Vibration Force

40KN

Mixer Model

JS500

Voltage

380V

General Water Consumption

4T/every day

Workers

3~4

Workshop Area

150m²

Packaging & Shipping
