• Model NO.：CLJG-600
• Rotary Speed：2800r,Min
• Air Consumption：60L,Min
• Cutting Width：300mm
• Cutting Height：135mm
• Cutting Angle：45 and 90 Degree
• Machine Dimension：1750*1300*1500mm
• Weight：800kg
• Transport Package：Wooden
• Specification：Saw blade diameter 600mm
• Trademark：Truepro
• Origin：China
• HS Code：846150
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLJG-600 Rotary Speed 2800r/Min Air Consumption 60L/Min Cutting Width 300mm Cutting Height 135mm Cutting Angle 45 and 90 Degree Machine Dimension 1750*1300*1500mm Weight 800kg Transport Package Wooden Specification Saw blade diameter 600mm Trademark Truepro Origin China HS Code 846150 Production Capacity 500sets/Year

Product Description

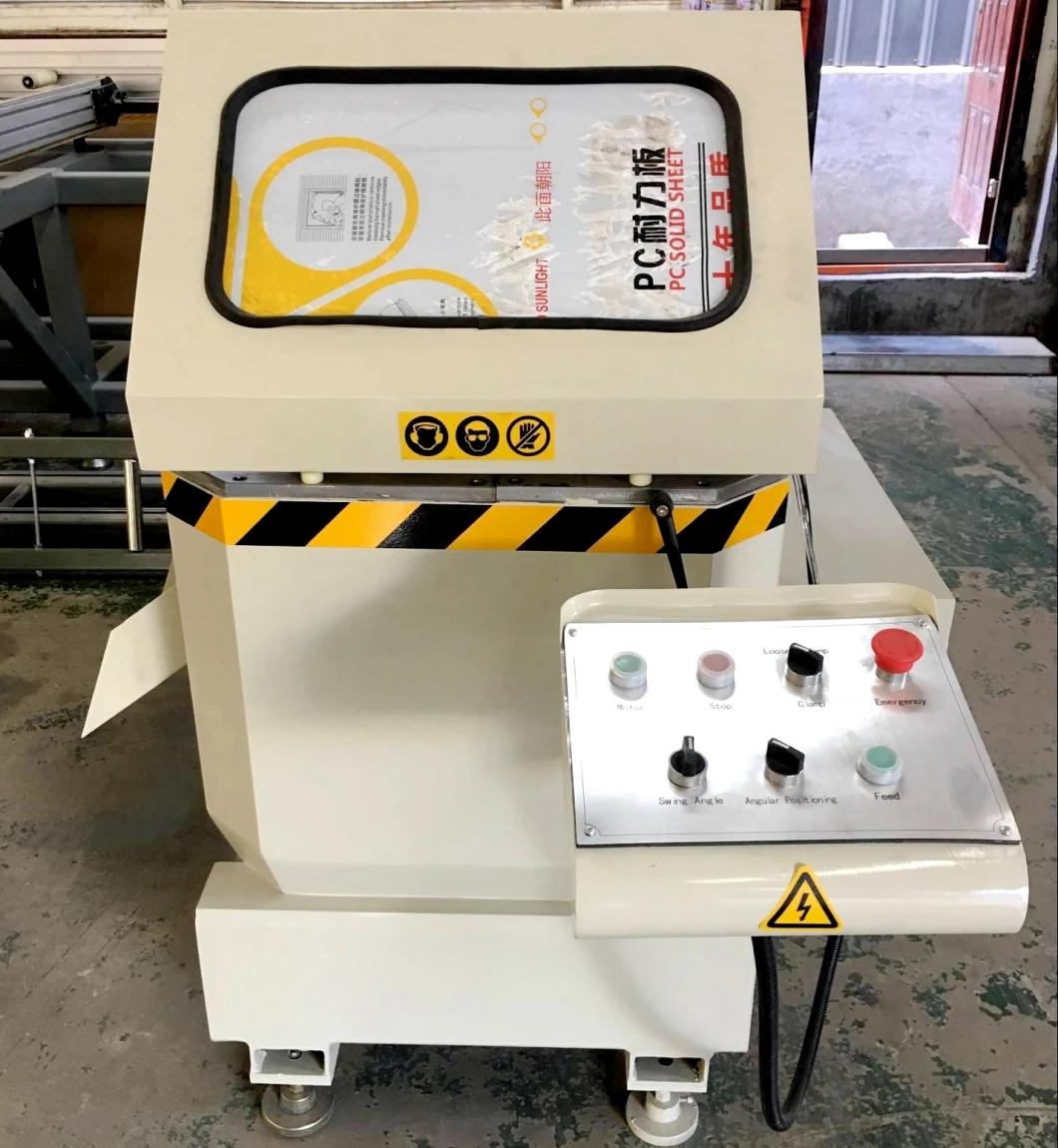

    High Precision Single Head Aluminum Extrusion Mitre Saw Cutting
                           With Profile Table

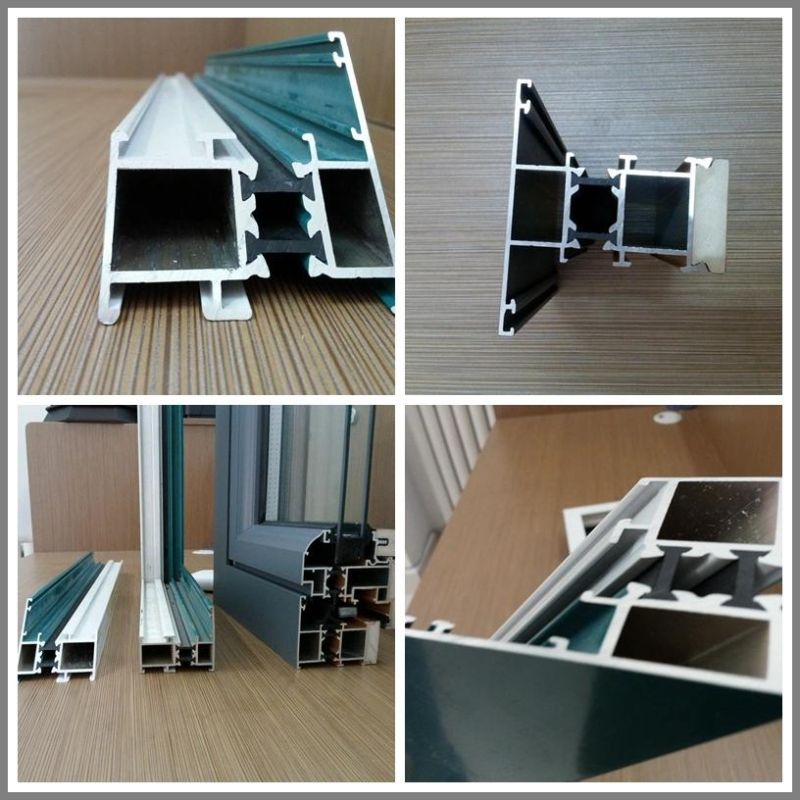

Machine feature: 1. Used for aluminum window and door profile cutting and for curtain wall profile cutting, also for plastic profile cutting
2. Adopt carbide alloy blade, diameter up to 500mm dia., line of high speed and high precision machining.
3. The machine can equipped with up-feed blade and digital display positioning system(depending on request).
4.The saw blades can be adjusted within the 45°- 90° freely.
5.This machine max. cutting size is 200*135mm, suitable for wide profile.

Parameter:

Power supply	3N~50Hz 380/220V or As Customer Specification
Cutting motor power	3KW
Cutting motor rotary speed	2800r/min
Operation air pressure	0.5~0.8MPa
Air consumption	30L/min
Blade specification	ø600×ø30×4.4×Z120
Cutting speed	stepless speed regulation0~3m/min
Cutting width	max 300mm
Cutting height	max. 135mm
Cutting angle	90°,45°
Repeat locating length tolerance	±0.2mm
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	±5′
Cutting profile surface roughness	Ra12.5µm
Contour dimension	1700 mm×1300mm×1500mm
Weight	800KGS

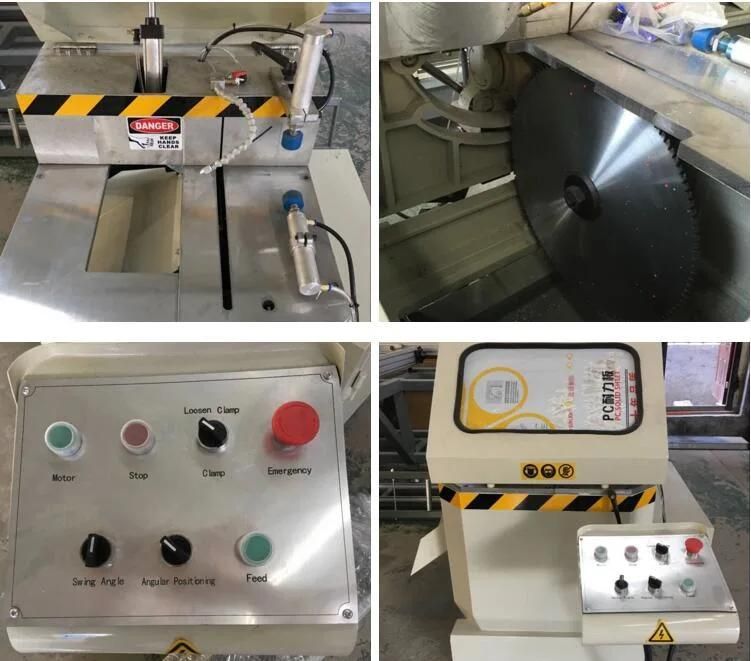

Machine details:










1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
