• Product Name：Steel Plate Floor Tile Decking Sheet Machine
• Raw Material：Gi Steel, PPGI Steel
• Thickness Range：0.8-1.5mm
• Machine Power：22kw+5.5kw
• Work Speed：10-15m,Min
• Machine Weight：12 Tons
• Warranty：1 Year
• After-Sales Service：Engineer Is Availble to Overseas
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：12500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：30 Sets , Month

Basic Info.

Product Name Steel Plate Floor Tile Decking Sheet Machine Raw Material Gi Steel, PPGI Steel Thickness Range 0.8-1.5mm Machine Power 22kw+5.5kw Work Speed 10-15m/Min Machine Weight 12 Tons Warranty 1 Year After-Sales Service Engineer Is Availble to Overseas Transport Package Plastic Film & Steel Wire Fixed Specification 12500mm*1500mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Cangzhou, China HS Code 8455221000 Production Capacity 30 Sets / Month

Product Description

china suppliers steel structure metal slab floor making machine

The finished products of metal slab floor making machine are metal floor deck.They have many features,such as simple shape,large wave height,high intensity and good adhesiveness .in the high story building,it not only can save steel mould board,but also reduce the bearing of the floor.

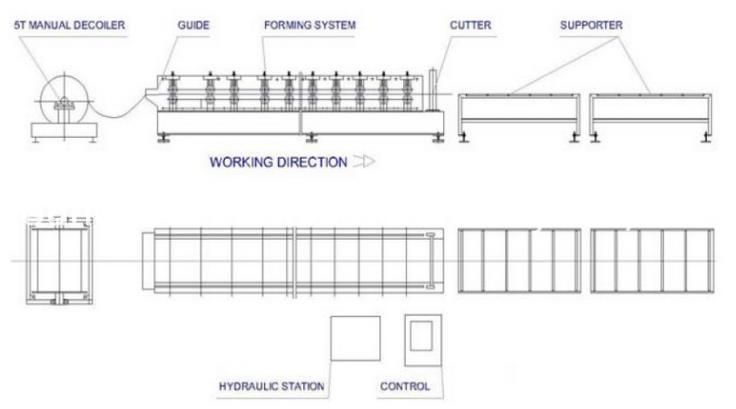

1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

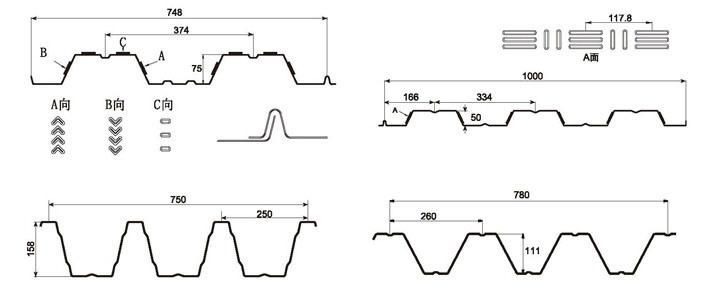

2. Profile Drawings for Reference:





3. Technical parameters:



Main motor power	11kw*2
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢80mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	26 groups
Raw material	0.8-1.5mm
Coil width	1219mm
Working speed	10m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 12 tons
Size of machine	About 12500×1800×1500mm L x W x H
Color of machine	Yellow and Blue
Coder	Omron, made in Japan
Control	PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel	touching screen
Other electrical element	Schneider
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	5.5KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

4. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

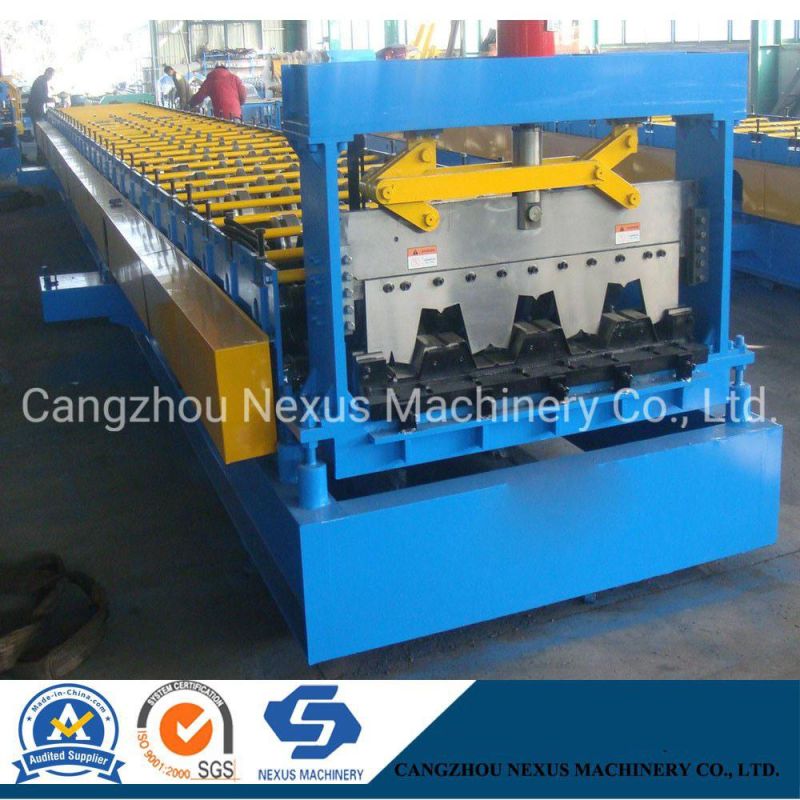

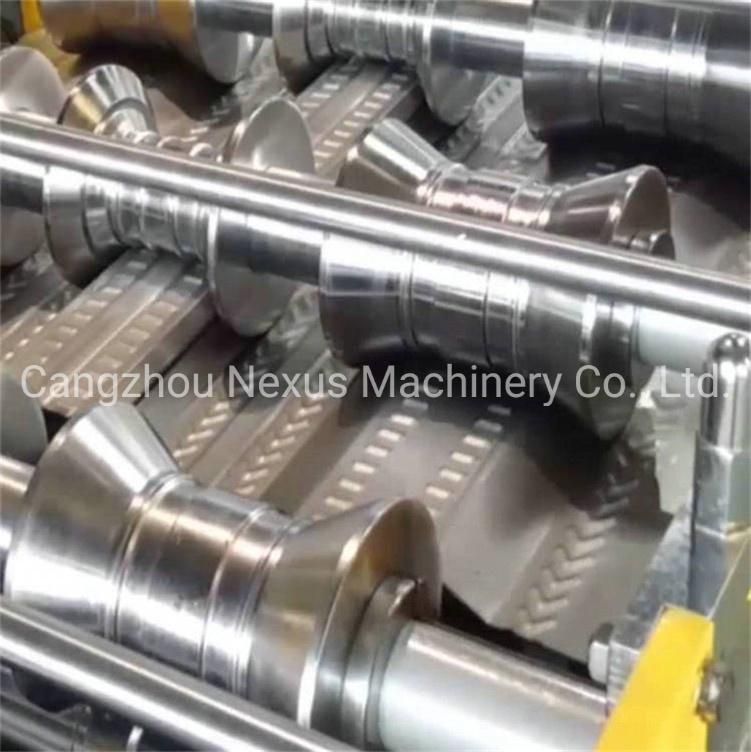

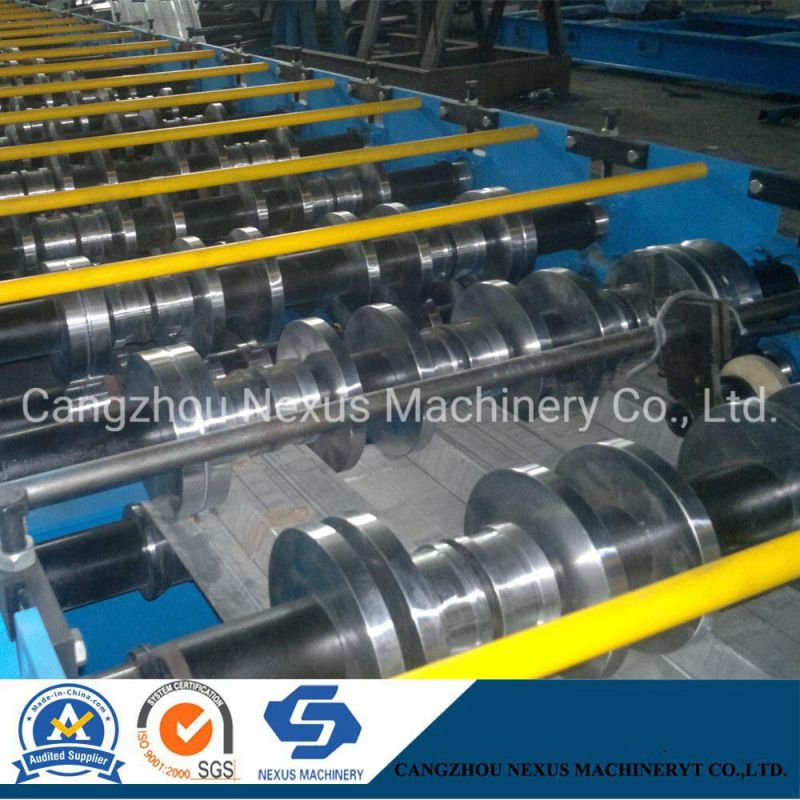

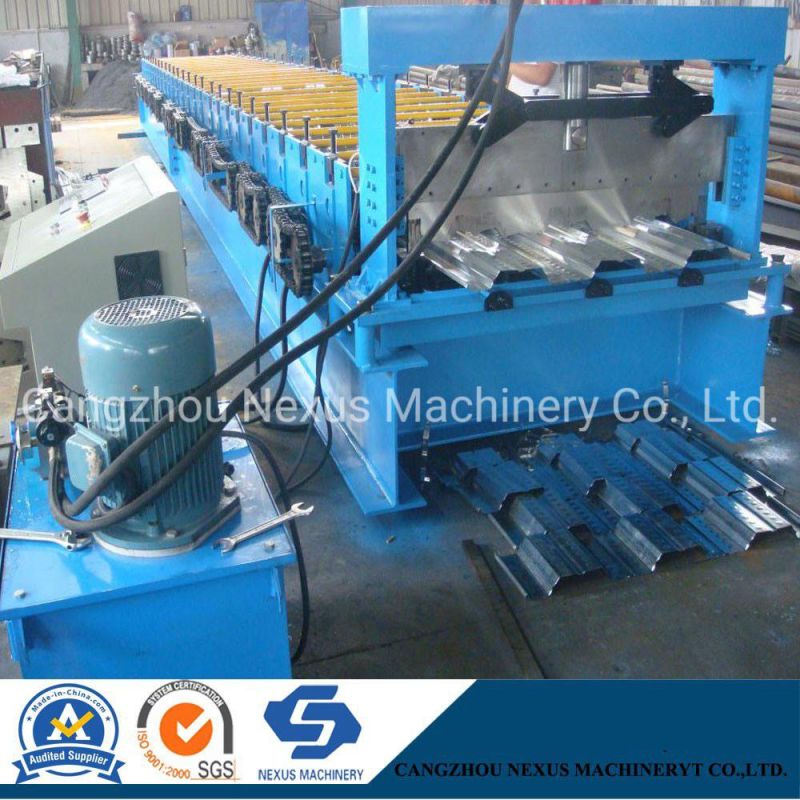

5. Photos of China Suppliers Steel Structure Metal Slab Floor Making Machine  for Reference:










7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
