Ce Certificate Double Layer Metal Roofing Sheet Glazed Tile Roll Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric

Base Info

  • Model NO.：NX1220
  • Product Name：Double Layer Roofing Sheet Glazed Tile Machine
  • Raw Material：PPGI Sheet
  • Thickness Range：0.3-0.6mm
  • Machine Power：4kw+3kw
  • Forming Speed：10-12m,Min
  • Operation Type：Touch Screen
  • Operation Language：English and Chinese
  • Machine Weight：About 3 Tons
  • PLC Brand：Sanjing
  • Warranty：1 Year
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：5500mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：Cangzhou, China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Months

Description

No.

Item

Specification

1

Can Formed Material

PPGI,GI,AI

2

Equipment operation

Automatic

3

Voltage

380V 60Hz 3Phase or as your requirement

4

Thickness of sheet (mm)

0.3-0.6mm

5

Material width(mm)

As your requirement

6

Cover Width of the sheet after formed

as your drawing

7

The size of the roll forming machine

7500mmx1600mmx1750mm

8

Speed

0-15m/min

9

Diameter of shaft

70mm

10

Weight of the Machine

8000-9500KGS

11

Material of rollers

C45 steel quenched and chromed

12

Motor brand

Siemens or Guomao

13

PLC

Siemens or Delta or Mitsubushi

14

Total power (kw)

9.5kw

15

Power of hydraulic system

5.5kw

16

Power of main molding core

4kw

3. Equipment list :

No.Product Name       QTY
15T Manual decoiler          1
2CE certificate Double Layer metal roofing sheet glazed tile roll forming machine
 (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)		          1
3Passive Output table          2
Sum           4

4. Character of main structure:
  1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
  2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
  4. It is very easy to install the equipment and suitable for producing in the factory.
  5. Low noise with high efficiency.

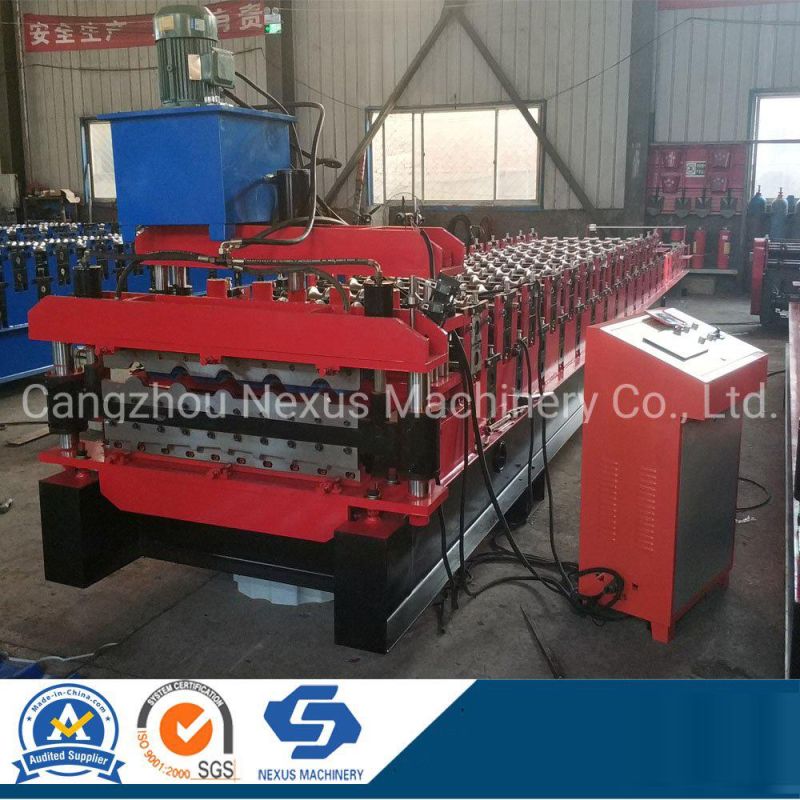

5. Photos of NCE certificate Double Layer metal roofing sheet glazed tile roll forming machine for Reference:

Ce Certificate Double Layer Metal Roofing Sheet Glazed Tile Roll Forming Machine
Ce Certificate Double Layer Metal Roofing Sheet Glazed Tile Roll Forming Machine

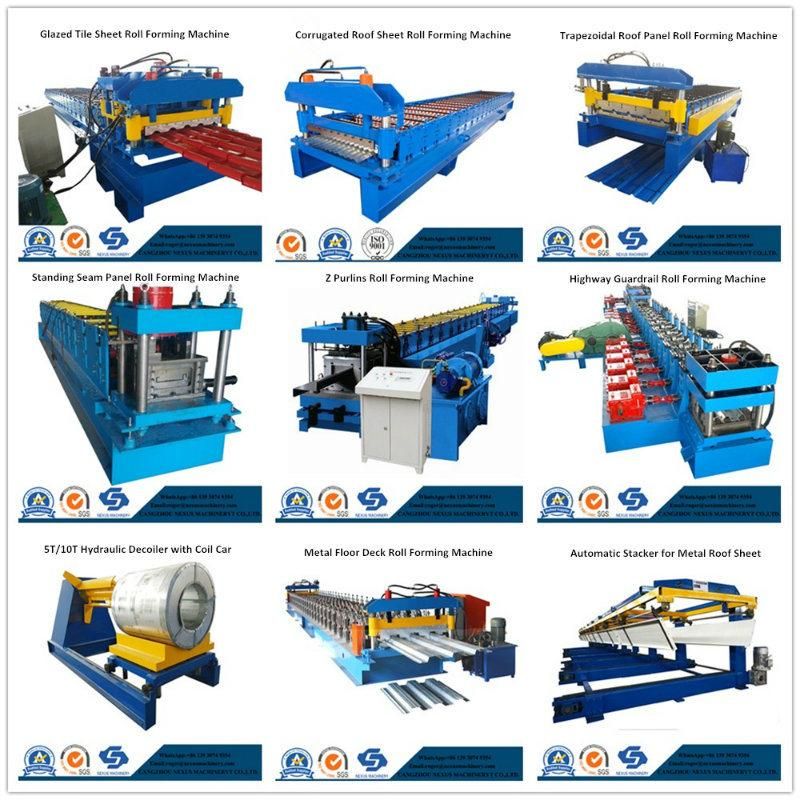

6.More Products for Choose:
Ce Certificate Double Layer Metal Roofing Sheet Glazed Tile Roll Forming Machine
Exhibitions Photos:
Ce Certificate Double Layer Metal Roofing Sheet Glazed Tile Roll Forming Machine

FAQ:
  1. Do you have after sales support?
    Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
  2. What can you do if the machine broken?
    Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself.
  3. Can you be responsible for transport?
    Yes, please tell us the destination port or address. we have rich experience in transport.
  4. Do you provide customized?
    Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer in China.
