• Model NO.：ZK
• Type：Crushing Equipment
• Name：Cement Mill
• Factory Established：1956
• Factory Area：55000m2
• Color：as Your Request
• Weight of Ball：1.5t
• Power：18.5
• Feeding Size：<25mm
• Transport Package：According to Your Special Requirements
• Specification：ISO9001, ISO14000, CE
• Trademark：ZK
• Origin：Zhengzhou, China
• Production Capacity：100 Set,Sets Per Year

Basic Info.

Model NO. ZK Type Crushing Equipment Name Cement Mill Factory Established 1956 Factory Area 55000m2 Color as Your Request Weight of Ball 1.5t Power 18.5 Feeding Size <25mm Transport Package According to Your Special Requirements Specification ISO9001, ISO14000, CE Trademark ZK Origin Zhengzhou, China Production Capacity 100 Set/Sets Per Year

Product Description

Well-designed Good Performance Cement Plant Grinding Ball Mill
Decription of cement mill:

Cement mill is the key equipment for grinding after the crush process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

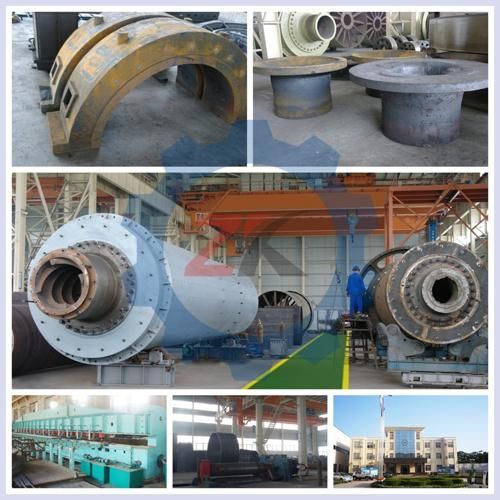

 Structure of cement mill:   Cement mill is composed by the feeding device, discharging device, rotary device, driving device(including reduction gears,small transmission gear, electrical machine, electronic control) and some other main components. The hollow shaft is made by the use of steel castings, the liner is detachable, rotary gear is cast with hobbing, the internal of cylinder installing with wear liner, which has a good abrasion resistance. This kind cement grinding machinery is stable to operate and reliable to work.

cement  Mill grinds material by rotating a cylinder with ceramic grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill. The point where the mill becomes a centrifuge is called the "Critical Speed".
All the enquiry we would like to know: 1,waht is your capacity? 2, what is the raw material and its size? 3, What is the final product size ? 4, What is your final use of the products?

Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com/ & http://hnzkjq.en.made-in-china.com/
24-hour Free Sales Consulting Phone : 861-0371 -5590 2866 .
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province

Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com
Rotary Kiln:http://hnzkjq.en.made-in-china.com
Preheater:http://hnzkjq.en.made-in-china.com
Cement Mill:http://hnzkjq.en.made-in-china.com
Rotary Dryer:http://hnzkjq.en.made-in-china.com
Raw Mill:http://hnzkjq.en.made-in-china.com
Ball Mill:http://hnzkjq.en.made-in-china.com



type	Rotational Speed(r/min)	balls weight(t)	material-in size(mm)	material-out size(mm)	(output)t/h	motor power(kw)	weight(t)
Φ 900× 1800	38	1.5	≤ 20	0.075-0.89	0.65-2	18.5	3.6
Φ 900× 2100	38	2.7	≤ 20	0.075-0.83	0.7-3.5	22	3.9
Φ 900× 3000	38	2.7	≤ 20	0.075-0.89	1.1-3.5	22	4.5
Φ 1200× 2400	32	3.8	≤ 25	0.075-0.6	1.5-4.8	45	11.5
Φ 1200× 4500	32	7	≤ 25	0.074-0.4	1.6-5.8	55	13.8
Φ 1500× 3000	27	8	≤ 25	0.074-0.4	2-5	90	17
Φ 1500× 4500	27	14	≤ 25	0.074-0.4	3-7	110	21
Φ 1500× 5700	27	15	≤ 25	0.074-0.4	3.5-8	132	24.7
Φ 1830× 3000	24	18	≤ 25	0.074-0.4	4-10	180	28
Φ 1830× 7000	24	25	≤ 25	0.074-0.4	7.5-17	245	36
Φ 2200× 5500	21	30	≤ 25	0.074-0.4	10-22	370	48.5
Φ 2200× 6500	21	31	≤ 25	0.074-0.4	14-26	380	52.8
Φ 2200× 7500	21	33	≤ 25	0.074-0.4	16-29	380	56
Φ 2400× 4500	21	30	≤ 25	0.074-0.4	8.5-60	320	65
Φ 2700× 3600	20.6	39	≤ 25	0.074-0.4	12-70	400	91.3
Φ 2700× 4000	20.7	40	≤ 25	0.074-0.4	12-80	400	94
Φ 2700× 4500	20.7	48	≤ 25	0.074-0.4	12-90	430	102
Φ 3200× 4500	18	65	≤ 25	0.074-0.4	12-100	800	137
