• Input Power：2.6kw
• Cutting Diamter：Dia.5,8mm
• Diameter of The Three Hole Drilling Head：120mm
• Cutting Length：Dia.10mm
• Copy-Routing Range：235*100mm
• Weight：About 220kg
• Application：Copy Routing Machine
• Usage：Aluminium Window Making Machine
• Applicable Material：PVC, UPVC, Aluminum
• Machine Type：Single Head
• Color：Gray or Customization
• After-Sales Service：Online Support, Free Spare Parts, Field Installati
• Advantage：Milling All Kinds of Lock Holes
• Transport Package：1.Simple Stretch Film Packaging; 2.Professional E
• Specification：870mm*1200mm*1500mm
• Trademark：Truepro
• Origin：Jinan, Shandong
• Production Capacity：15 Set,Sets Per Month

Basic Info.

Input Power 2.6kw Cutting Diamter Dia.5/8mm Diameter of The Three Hole Drilling Head 120mm Cutting Length Dia.10mm Copy-Routing Range 235*100mm Weight About 220kg Application Copy Routing Machine Usage Aluminium Window Making Machine Applicable Material PVC, UPVC, Aluminum Machine Type Single Head Color Gray or Customization After-Sales Service Online Support, Free Spare Parts, Field Installati Advantage Milling All Kinds of Lock Holes Transport Package 1.Simple Stretch Film Packaging; 2.Professional E Specification 870mm*1200mm*1500mm Trademark Truepro Origin Jinan, Shandong Production Capacity 15 Set/Sets Per Month

Product Description

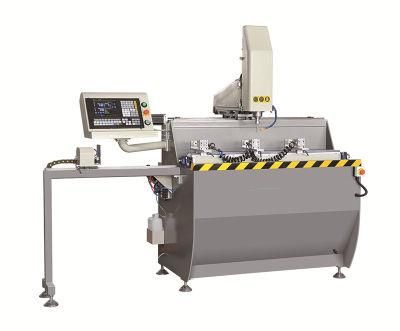

Single Spindle Types of Aluminum Copy Router Machine Dye UPVC Table

EQUIPMENT FEATURES:- Milling all kinds of lock holes. - Formed by three-hole drill part (horizontal direction) and copy milling part(vertical direction).- Movement of three drill head increases the guide pin under the guidance, guarantee the three holes on the underside of the parallel.-Three drill rear layout,easy operation,accord with human bodyen gineering principle.- Automatic feeding of three drill gas-liquid damping, reduce thelabor intensity of the workers.- Profile modeling by profiling mound plate and auxiliary positioning for modeling.
Main Technical Parameter:

Model	CFZ-235*100A	Power supply	380V 50Hz
Air pressure	0.5-0.8MPa	Diameter of the three-hole drilling head	Ф10mm
Input power	2.6kw	Centers distance of the three-hole drilling head	21.5mm
Cutter Diameter	Ф5,Ф8mm	Copy-routing range	235×100mm
Overall dimension	870*1200*1500mm	Weight	about 220Kg

Details

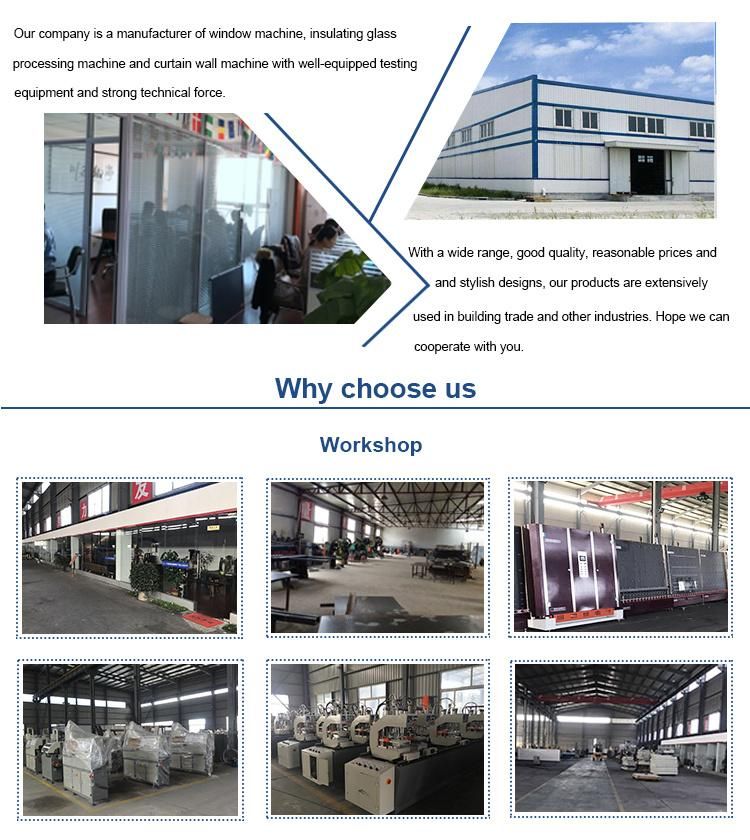

Company Information



FAQ

1.Q:Are you a manufacturer?
 A: Yes,we have been in providing the professional products in this field for 10 years.

2.Ask:how to install the machine ?
A:we can intrust the install the machine by vedio, email ,picture.....if large project ,
we can arrange the worker help you to install it in your country .

3.Q :How you pack the products ?
A: Normally as the export standard packaging or as you required.

4.Q: What is your available port of shipment?
A:Qingdao port,shanghai,tianjin,guangzhou etc.

5.Q: Is customized available ?
A: Yes, according to your detailed drawings you provide

7. Q:After Sale Service
24 hours technical support by phone, email or skype (email or skype) .
12 months warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation

8.Q: Are you trading company or manufacturer ?
A: We are factory and welcome to visit us at any time.

9.Q: How long is your delivery time?
A: Generally single tanks need 15-30 days, for whole plant need 30-50days.

10.Q: Do you have CE and UL certification?
A: Yes.
