• Rotary Speed：2800r,Min
• Air Pressure：0.5-0.8MPa
• Worktable Dimension：530*320mm
• Motor Adjustable Journey：0-85mm
• Workable Journey：0-1560mm
• Machine Dimension：3000*970*1670mm
• Weight：650kg
• Transport Package：Wooden
• Specification：Saw blade diameter 250mm
• Trademark：TRUETEC
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Rotary Speed 2800r/Min Air Pressure 0.5-0.8MPa Worktable Dimension 530*320mm Motor Adjustable Journey 0-85mm Workable Journey 0-1560mm Machine Dimension 3000*970*1670mm Weight 650kg Transport Package Wooden Specification Saw blade diameter 250mm Trademark TRUETEC Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

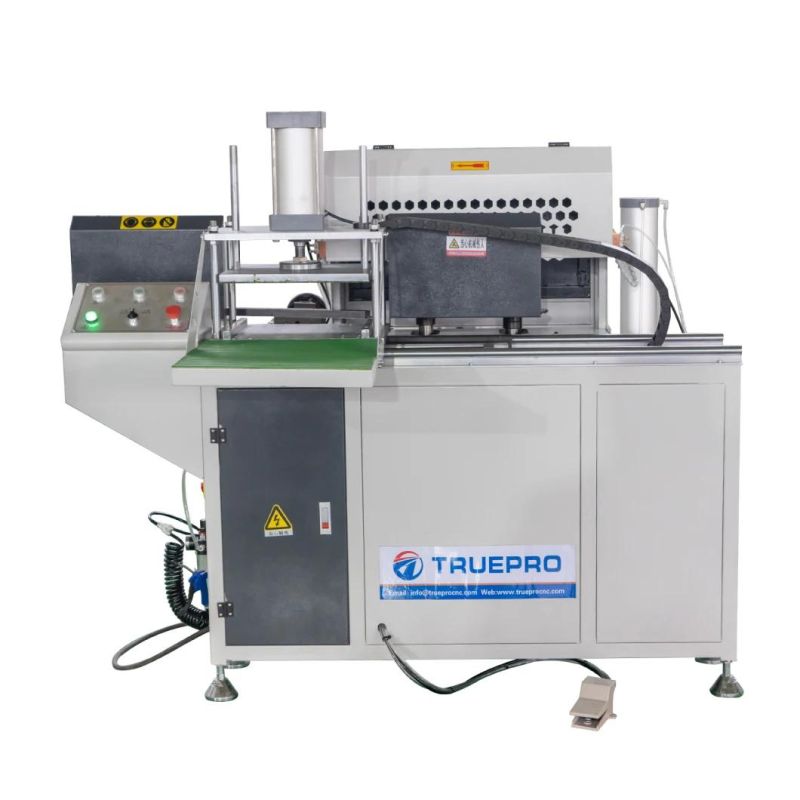

Aluminum Profile Adjustable Blade End Milling Machine
Machine feature:
1. Used for processing aluminum profile end,step face and slot etc.
2. Super precision main shaft insures accu-rate and steady processing.
3. Adjustable processing angle within 35°~90°.
4. Convenient tool setting is due to adjustable worktable.
5. The cutter is mounted on high precision spindle, the motor running accuracy will not affect the tool working accuracy.
6. Cutter feeding adopts linear bearing motion pair so that the working perfor mance is stable.
Parameter:

Model	CLXD-20
Power Supply	380V 50HZ
Input Power	8.8KW
Air Pressure	0.6~0.8MPa
Motor Rotary Speed	2800r/min
Diameter of main shaft	φ32mm
Diameter of milling cutter	φ250mm
Worktable journey	0-1560mm
Worktable dimension	530*320mm
Motor adjustable journey	0-85mm
Max processing tenoning size	40mm
Cutting surface roughness	12.5μm
Overall Dimension	3000*970*1670mm
Weight	About 650Kg

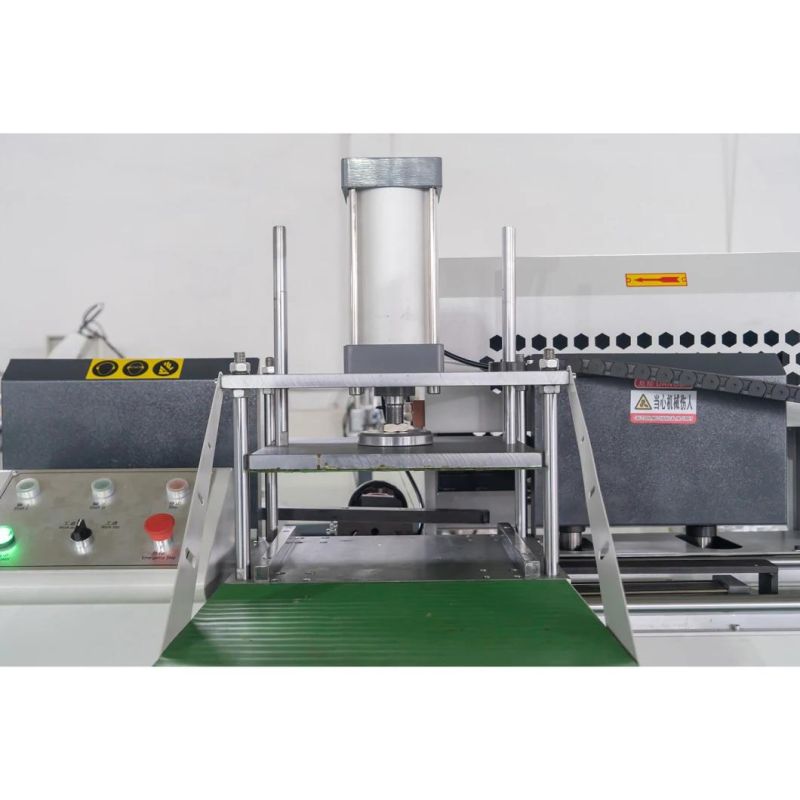

Machine details:


Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.





1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
