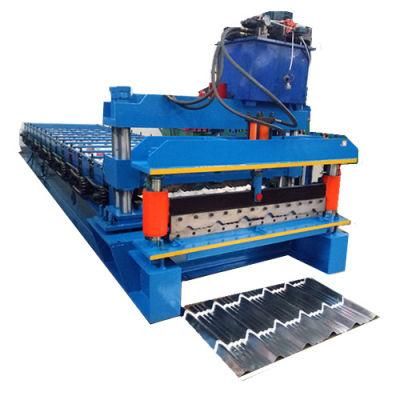

China Factory Lowest Price Steel Glazed Tile Trapezoidal Tile Roofing Sheet Roll Forming Machine

Botou Golden Integrity Roll Forming Machinery Co., Ltd.
  • After-sales Service:Yes, We Supply
  • Warranty:18 Months
  • Tile Type:Glazed Steel
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized

Base Info

  • Model NO.:step tile
  • Usage:Roof
  • Transmission Method:Electric
  • Color of Machine:Blue or as Your Request
  • Use:Roof
  • Color:Blue
  • Suitble Material:Galvanized Steel, Aluminum
  • Forming Speed:2.0-3.0m,Min
  • Hydraulic Station Power:4kw
  • Controlling System:PLC
  • Transport Package:According to Customers′ Request
  • Specification:CE,SGS
  • Trademark:JCX
  • Origin:China Hebei
  • HS Code:845221000
  • Production Capacity:40sets Per Month

Description

Total weight (Approx)5.5TDepend on final design

Introducation

  1. This machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system
  2. The machine is stable,no noise,no shake
  3. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable, maintenance-free
  4. cutting machine is characterized by stable driving, easy operation
  5. hydraulic system use the CDF-10 hydraulic pump, long operating life,no noise
  6. this machine is applies to roof fortification

Flow chart:

 Decoilling the sheet--sheet guilding--film covering--roll forming--measure length--cutting the panel--panel to the supporter


China Factory Lowest Price Steel Glazed Tile Trapezoidal Tile Roofing Sheet Roll Forming Machine

Machine Feature:

1.Precise forming

2. High-solid forming stand guarantees the goods and uniform high quality of final productd

3. The operation automatically minimizes the tolerance of cutting length

Products Feature:

1. A stylish and attractive design, giving the apperance of a traditional roof tile.

2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.

3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.

Technical Parameters:

Material Spec: colored steel sheet; galvanized steel sheet

Thickness of coil sheet: 0.3-0.8mm

Main Motor Power: 4 kw

Forming Speed: 2.0-3.0m/min

Hydraulic station power: 3kw

Quantity of stand:about 14 or 16 stands

Hydraulic pressure:10-12mpa

controlling system: PLC

Index error of length:10m+2mm

Total weight: about 6 tons

Voltage: 380V 3phase 60 HZ or at buyer's requirement

 Material of main equipment

 Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm

Active shaft material: high grade NO.45 carbon wrought steel at Φ 72mm

Cutting blade: Cr12 mould steel with quenched treatment.
China Factory Lowest Price Steel Glazed Tile Trapezoidal Tile Roofing Sheet Roll Forming Machine
China Factory Lowest Price Steel Glazed Tile Trapezoidal Tile Roofing Sheet Roll Forming Machine

Loading


China Factory Lowest Price Steel Glazed Tile Trapezoidal Tile Roofing Sheet Roll Forming Machine

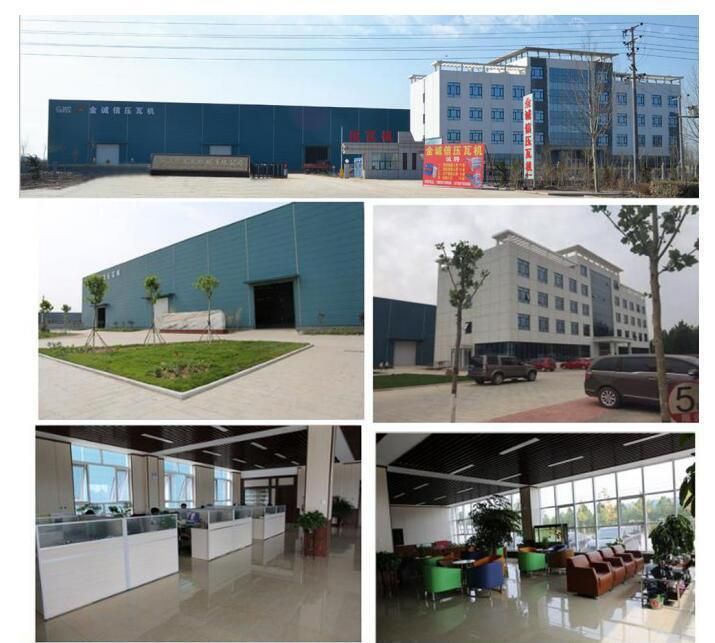

Company Information
