• Model NO.：Arch curving machine
• Warranty：12 Months
• Color：as Required
• Weight：1.6t
• Voltage：380V
• Power：4kw
• Transport Package：Main Machine Is Nude
• Specification：1.6*1.6*1.7m
• Trademark：XN
• Origin：China-Mainland
• Production Capacity：2 Set,Month

Basic Info.

Model NO. Arch curving machine Warranty 12 Months Color as Required Weight 1.6t Voltage 380V Power 4kw Transport Package Main Machine Is Nude Specification 1.6*1.6*1.7m Trademark XN Origin China-Mainland Production Capacity 2 Set/Month

Product Description

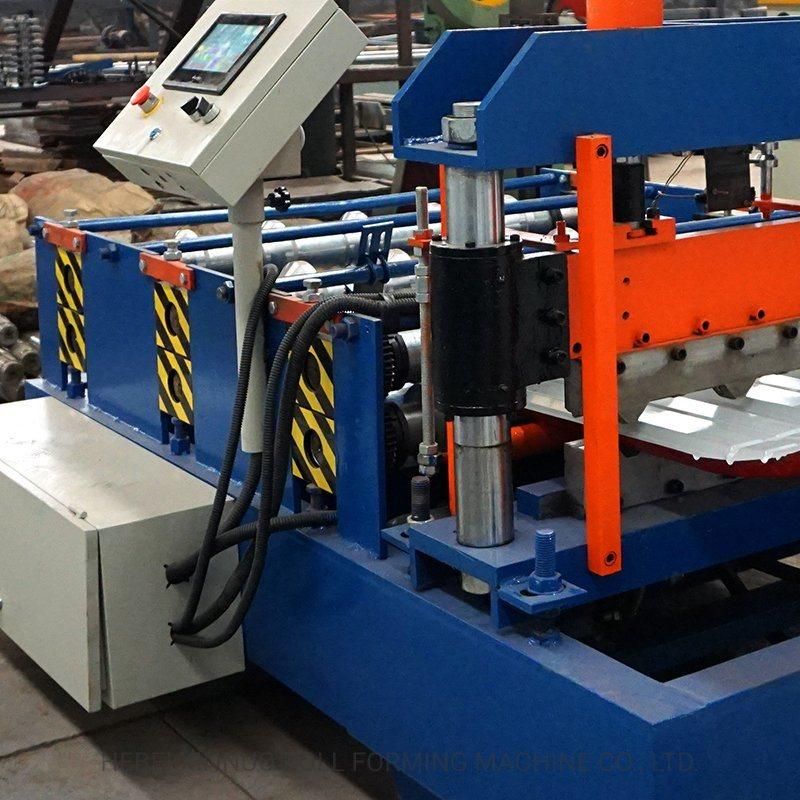

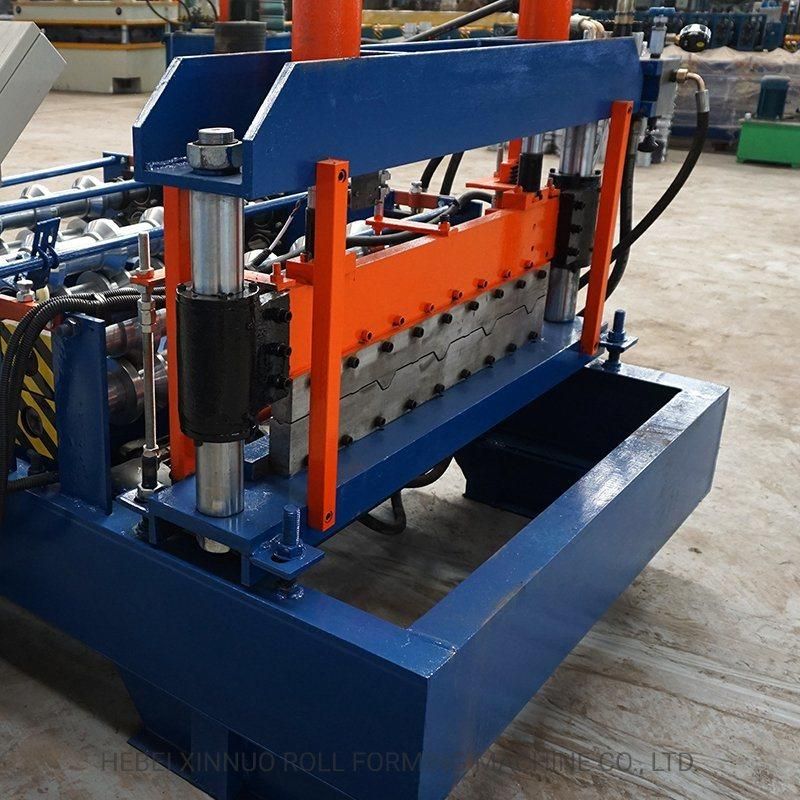

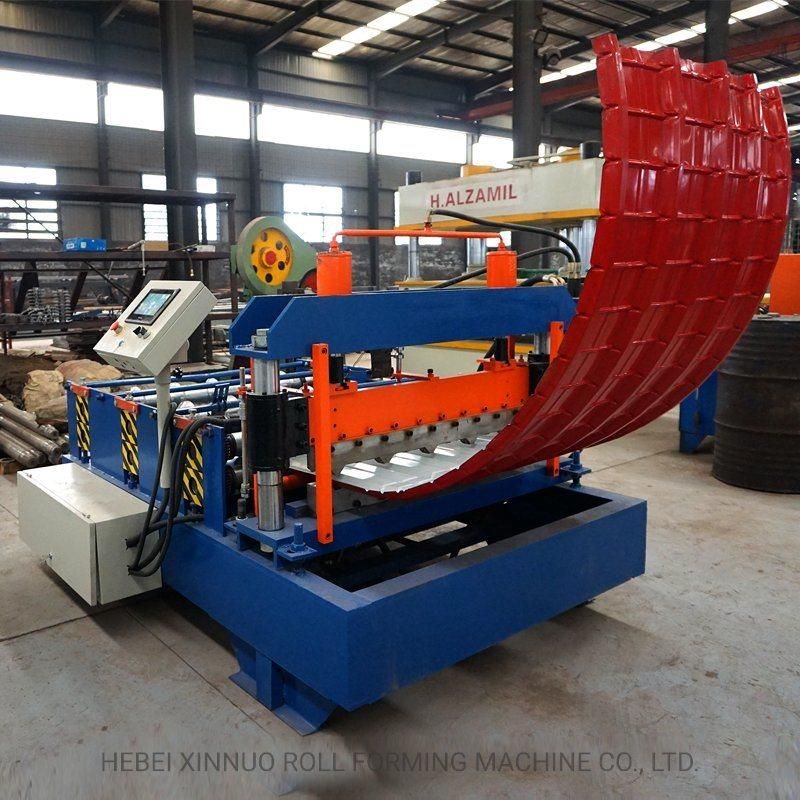

Hydraulic Trapezoidal Profile Mill Roofing Top crimping Sheet Steel Arch curving machine

Technical specification

1. Technique parameters of the processing line

 (1) Suitable material: aluzinc/galvanized steel/colored coil

(2) Thickness of the plate : 0.3-1.0mm

(3) Input width of the plate: ≤1250mm

(4) Voltage: 380V, 50Hz, 3Phase

(5) Stepping motor power: 3 KW, oil pump power: 4 KW

(6) PLC control systerm, easy to operate, high precision and work stably.

(7) Dimensions of major structure:1600mm*1600mm*1700mm



2. Computer control cabinet :

It adopts Delta PLC to control(PLC brand can be changed as your requirement). The target piece length is adjustable and digit of it can be adjusted

Computed mode has two modes: automatic and manual one.

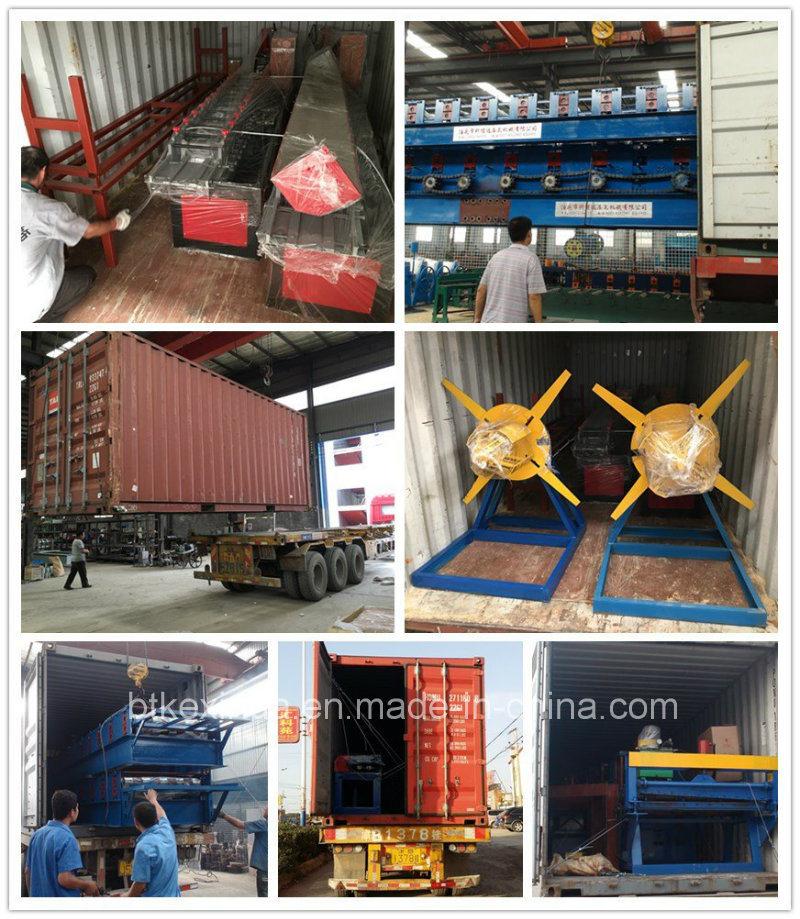

PACKING AND SHIPPING

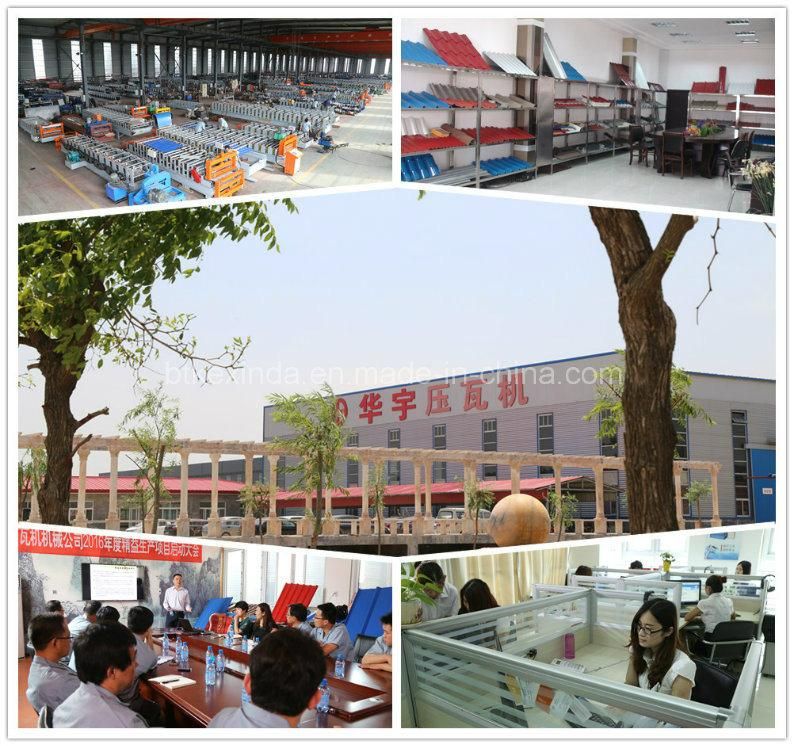

ABOUT  US

Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.



Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on.

Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day!

Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets.
