High Quality Aluminium Window Door Machinery Corner Connector Cutting Machine

Jinan Seth Intelligent Equipment Co., Ltd.
  • After-sales Service:Video
  • Warranty:12months
  • Condition:New
  • Certification:ISO, CE, SGS
  • Automatic Grade:Semi-Automatic
  • CNC or Not:CNC

Base Info

  • Voltage:380V
  • Cutting Motor Power:1.5kw
  • Motor Speed:2800r,Min
  • Working Pressure:0.6-0.8MPa
  • Cutting Width:Max.120mm
  • Cutting Length:Max.220mm
  • Cutting Angle:90°
  • Transport Package:Wooden Box
  • Specification:5670x1770x1840mm
  • Trademark:SETH
  • Origin:Jinan
  • HS Code:8461500090

Description

Basic Info.

Voltage 380V Cutting Motor Power 1.5kw Motor Speed 2800r/Min Working Pressure 0.6-0.8MPa Cutting Width Max.120mm Cutting Length Max.220mm Cutting Angle 90° Transport Package Wooden Box Specification 5670x1770x1840mm Trademark SETH Origin Jinan HS Code 8461500090

Product Description

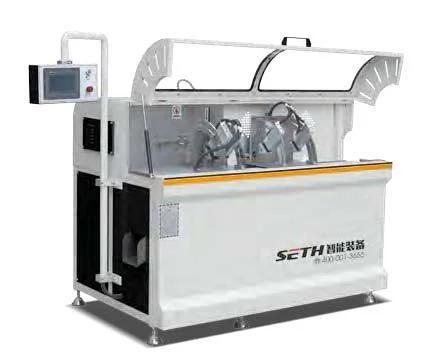

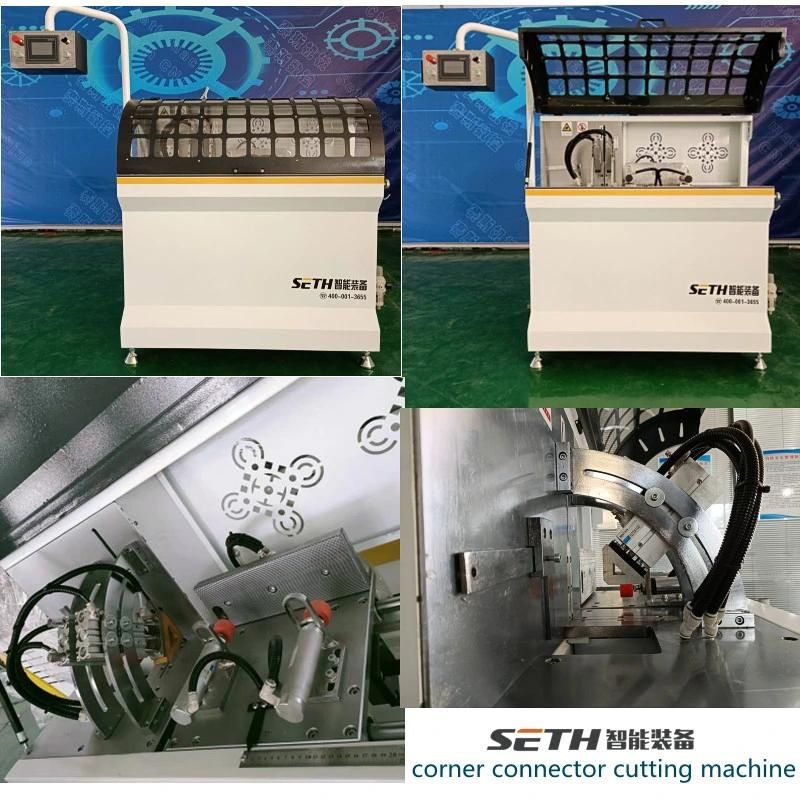

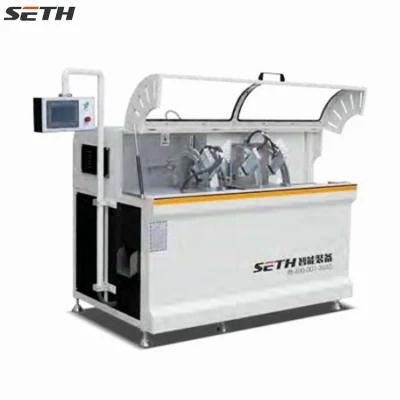

Corner Connector Automatic cutting saw for aluminum profile
High Quality Aluminium Window Door Machinery Corner Connector Cutting Machine1.Feature:
     a.This machine is used for cutting and blanking aluminum door and
       window corner profiles, with simple operation, reliable performance,
       advanced technology and easy maintenance.
    b.The cutting tool adopts cemented carbide saw blade, which has high
       cutting speed, high productivity and high machining precision.
    c.The feed motion pair adopts linear motion bearing, which has small
      motion resistance and high precision.
   d.The feeding mechanism adopts automatic feeding system, which is
      stable and reliable with high efficiency.
   e.With high automation, the advance and retreat of clamping and sawing are controlled by pneumatic system,
      which is convenient to operate,

     safe and reliable, and has high productivity.
   f. With automatic counting function.
   g.Continuous cutting of 6-meter angle profile can be realized only by  clamping once.
   h.Automatically save the number of cut segments in case of power failure.
   i. Adopt micro spray cooling device to save the processing cost of doors and windows (alternative).

High Quality Aluminium Window Door Machinery Corner Connector Cutting Machine2.Technical Parameters
o.Power supply380V/50Hz
Power supply1.5kW
Motor speed2800r/min
Working pressure0.6~0.8MPa
Auto feeding length2~180mm
Cutting widthMax. 120mm
Cutting heightMax. 220mm
Cutting length
Cutting angle90°
Feeding speed0~3m/min
Saw blade specificationФ450×3.8×Ф30 Z=120
Overall dimension5670×1770×1840mm
weight450kgs

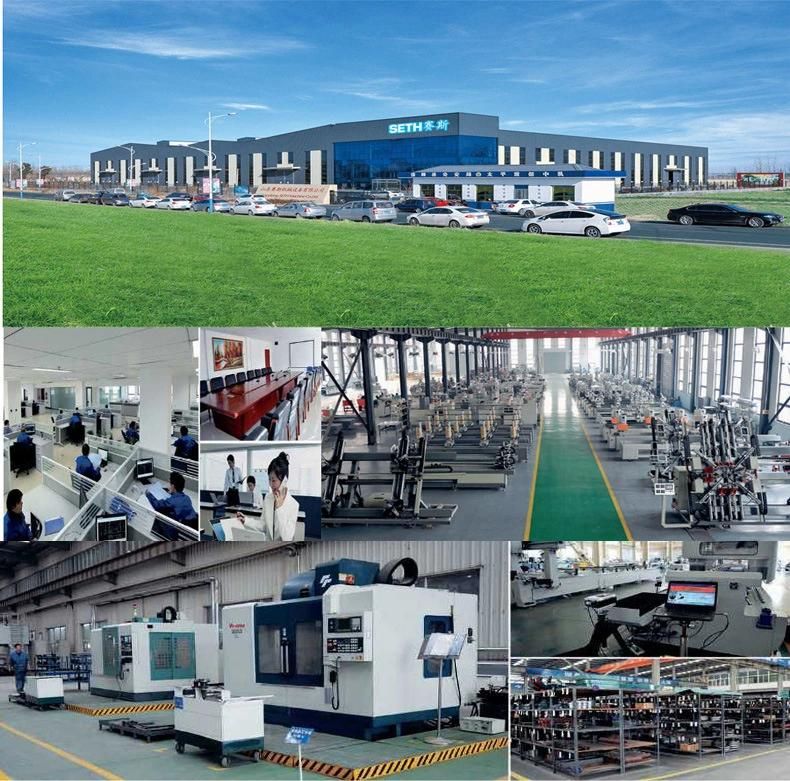

3.Company profile:

Jinan SETH Intelligent Equipment Co.ltd.

Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,PVC,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients,
and can also be customized according to customer requirements of
different grades of products.

The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design
and development engineers, skilled production engineers, experienced
 production management team and after-sales service that providing you with a strong guarantee.

our main products including aluminum&,PVC,uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
our main products including aluminum&PVC,uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.

Customer is the foundation, the company in line with the " quality first, customer first" principle,
Please join hands with SETH to lead intelligence.

High Quality Aluminium Window Door Machinery Corner Connector Cutting Machine

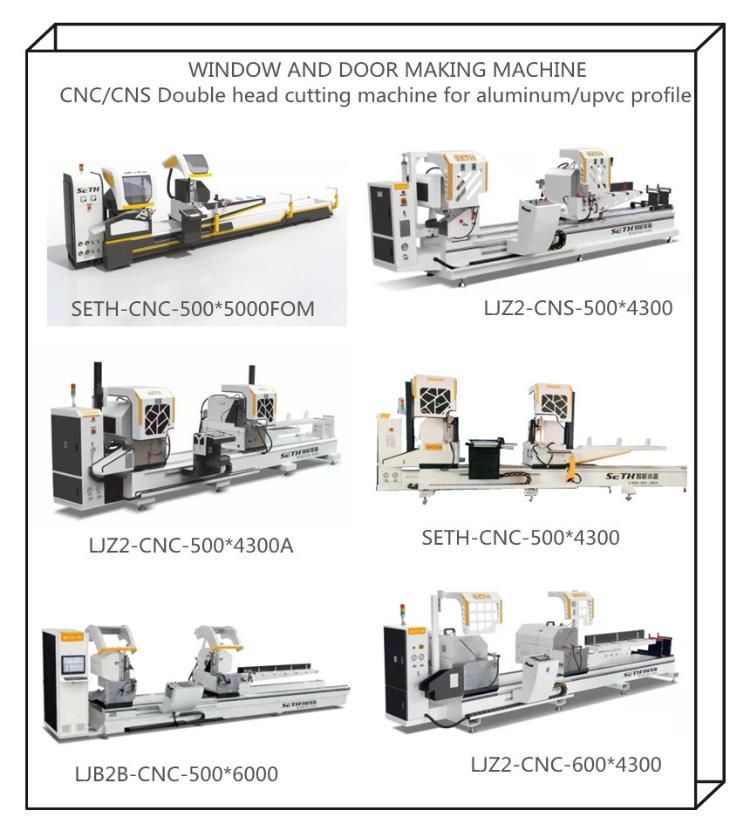

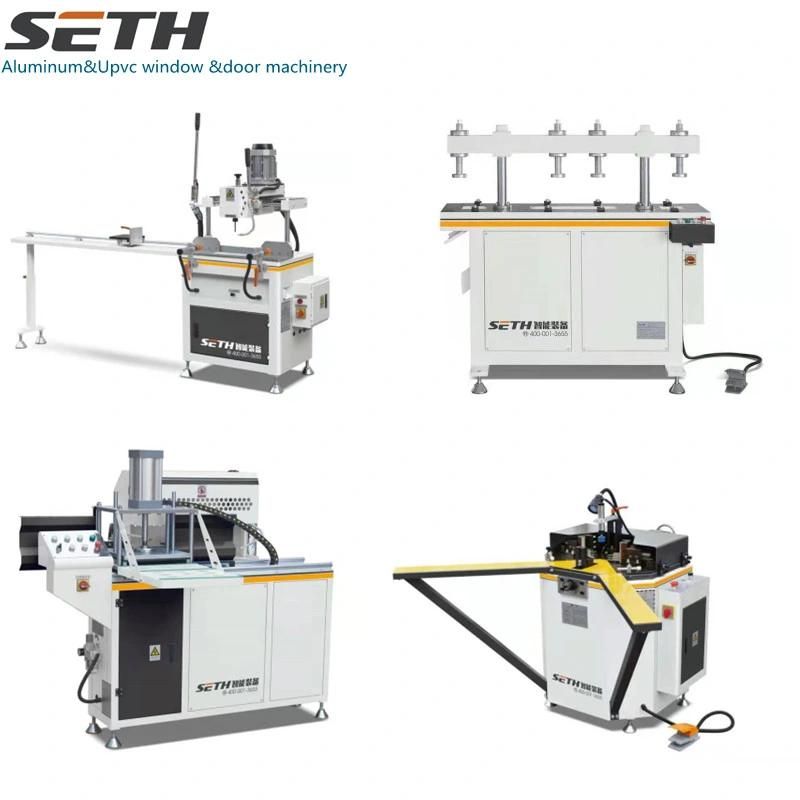

4.Hot selling:
High Quality Aluminium Window Door Machinery Corner Connector Cutting MachineHigh Quality Aluminium Window Door Machinery Corner Connector Cutting Machine

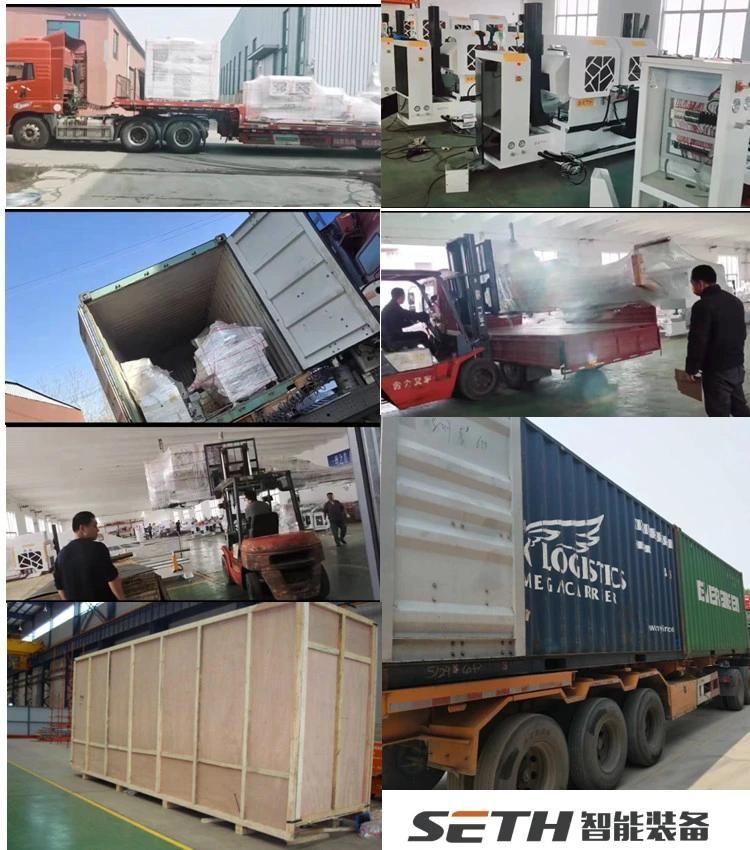

High Quality Aluminium Window Door Machinery Corner Connector Cutting Machine5.Package and delivery:


High Quality Aluminium Window Door Machinery Corner Connector Cutting Machine
6.Oor Advantages:
High Quality Aluminium Window Door Machinery Corner Connector Cutting Machine

High Quality Aluminium Window Door Machinery Corner Connector Cutting Machine
7.FAQ:
   Q: Is SETH a manufacturer or trading company?
   A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine       company in china.

  Q: SETH's main products?
  A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine, CNC milling  machine,   aluminum punching machine, end milling machine, copy router and corner connector saw, etc; Wood window machines: wood saw, wood window frame machine, vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.

Q: SETH's  after-service?
A: 1option:
     we have engineers to install the machines and train your workers.
    Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,          subsidy USD70 per day.
   2 option:
    On-line Service and All documents and videos for Installation and train operation for free.


Q.:What's your main products?
A.:CNC double-head precision cutting saw for aluminum profile, aluminium window cutting machine ,double head cutting saw for sale, 45° Double-Head Saw blade CNC Cutting Machine for Aluminum,90°aluminium window cutting machine Double-Head CNC cutting saw,Aluminium machinery of CNC,Aluminium,precision,Cutting,Saw Machine with Double Heads ,CNC heavy-duty double-head cutting saw  for aluminum Alloy Window Materials with Hard Alloy Saw Blades.Double miter saw,Precision miter saw ,Window frame saw
window and door manufacturing equipment  CNC Aluminum Window Door CNC Aluminum Window Door Double Head Aluminium CNC Cutting Saw Machine Window Door Making Machine CNC Aluminium Corner Connector  Cutting Saw Cnc corner connector cutting saw for aluminum profile Aluminum Window Corner Connector CNC Automatic Cutting Saw milling Aluminum Precision CNC Machining Parts CNC MachineCNC Router Machine for Aluminum Copperwindow corner machine
