Door Frame Roll Forming Machine /Rolling Shutter Door Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE, ISO9001

Base Info

  • Model NO.：NM1154
  • Customized：Customized
  • Condition：New
  • Control Type：Electric
  • Automatic Grade：Automatic
  • Prodcut Name：High Performance Shutter Door Machine
  • Coil Material Thickness：0.3-1.5mm
  • Processing Material：Galvanized Steel
  • Roller Material：Cr12MOV
  • Can Formed Material：Gi,Ai
  • Speed：8-15m,Min
  • Diameter of Shaft：40mm
  • Transport Package：1.Control Box and Easy Damaged Parts:Protective PA
  • Specification：6500mm*800mm*1500mm(L*W*H)
  • Trademark：Nexus Machinery
  • Origin：Cangzhou
  • HS Code：8455221000
  • Production Capacity：10
  • Package size per unit product：650.00cm * 80.00cm * 150.00cm
  • Gross weight per unit product：5000.000kg

Description

No.                   Item Specification    1    Steel coil Width

  Customized

 Material Ppgi/gi/gl Thickness



0.7-1.0mm

0.7-1.2mm

 HardnessNormal hardness   2       Forming Frame300-450mm Height Stations

As design of drawing

Main: 12 stations

 Rollers

High grade No 45# steel with

hard 0.05mm chromed

 ShaftHigh grade No 45# steel Diameter of shaft

As design of drawing

Main: 50mm

 Chain Main: 1-1.5inch   3    Control PLC control China/Taiwan/Japan/Germany brand Main motor Main: 4kw Language English or as your request    4   Cutting Cutter High grade Cr12 steel Cutting system Hydraulic Hydraulic pump Main: 3kw Cutter frame Steel plate welding    5   Decoiler Manual 800Kg    6   Product Receiving table Manual

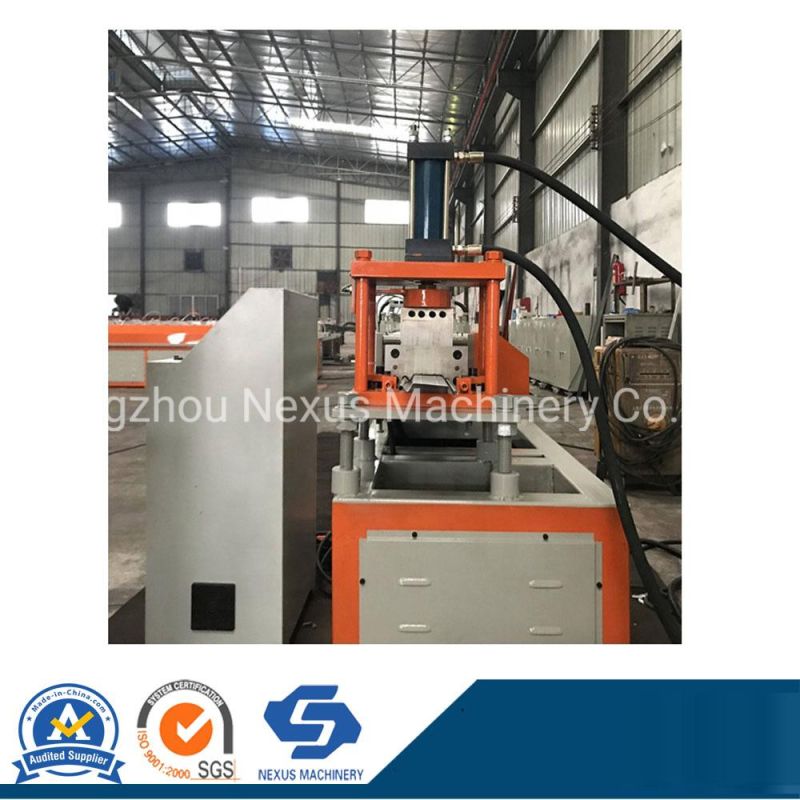

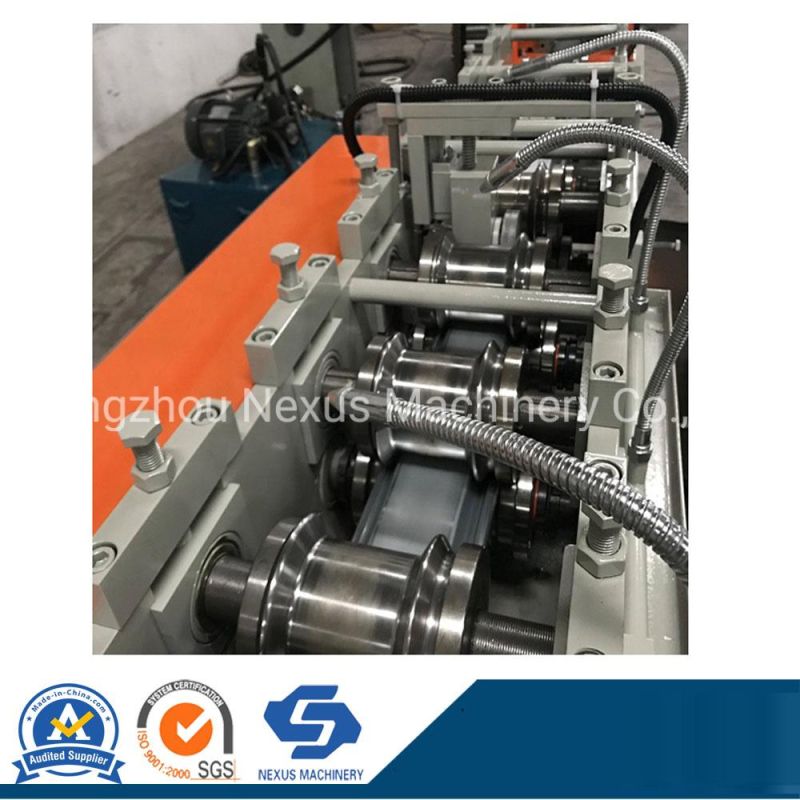

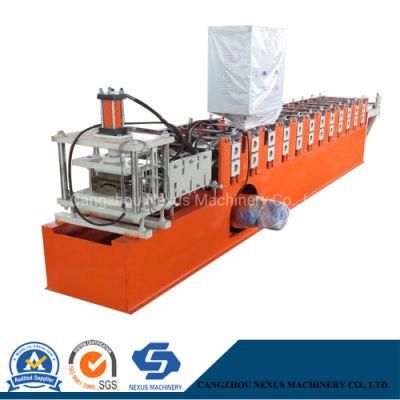

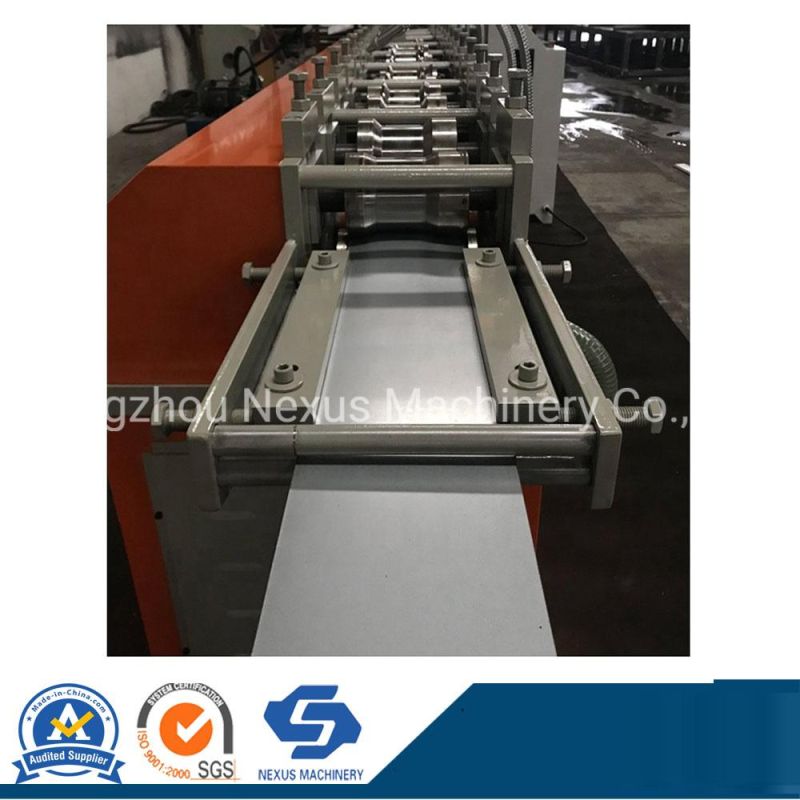

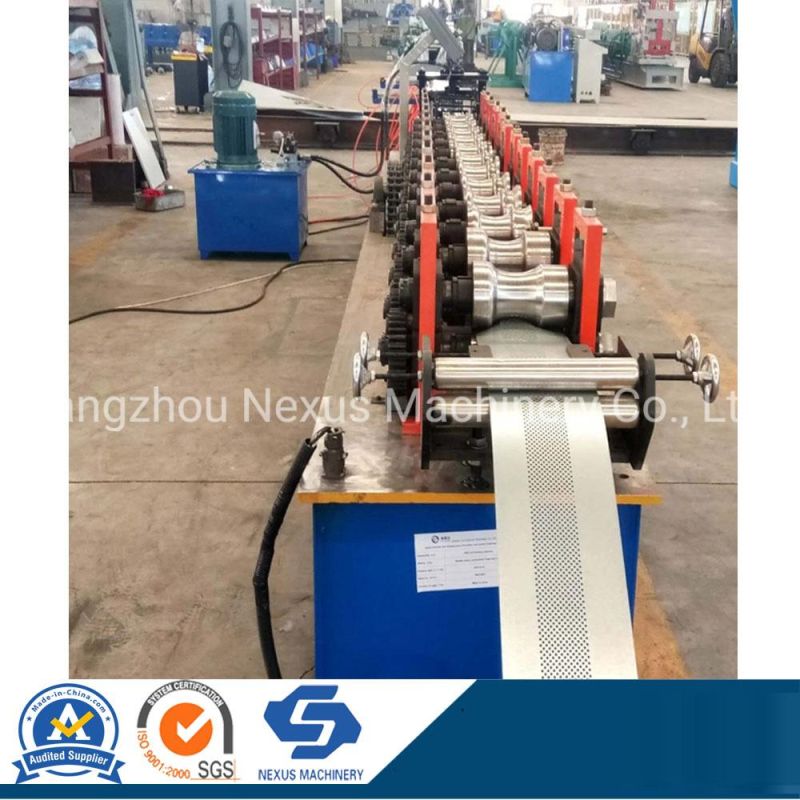

Photo for Door Frame Roll Forming Machine /Rolling Shutter Door Machine:
Door Frame Roll Forming Machine /Rolling Shutter Door Machine
Door Frame Roll Forming Machine /Rolling Shutter Door Machine
Door Frame Roll Forming Machine /Rolling Shutter Door Machine



Door Frame Roll Forming Machine /Rolling Shutter Door Machine

Door Frame Roll Forming Machine /Rolling Shutter Door Machine
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
