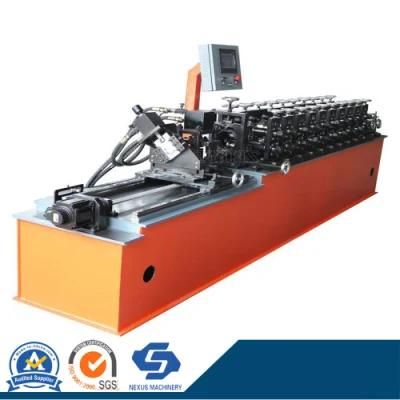

Omega Purlin Profile Steel Cold Roll Forming Machine
Cangzhou Nexus Machinery Co., Ltd.- Warranty：1 Year
- Certification：CE, ISO9001
- Customized：Customized
- Condition：New
- Control Type：Electric
- Automatic Grade：Automatic
Base Info
- Product Name：Omega Purlin Profile Steel Roll Forming Machine
- Coil Material Thickness：0.3-0.8mm
- Processing Material：Galvanized Steel
- Roller Material：45#Steel with Chrome Coating Heat Treatment
- Shaft Diameter：60mm
- Power：5.5kw+3kw
- Cutter Blade：Cr12
- Roller Station：10 Stations
- Voltage：380,220,420V 3 Phases
- Machine Weight：2 Tons
- Transport Package：1.Control Box and Easy Damaged Parts:Protective PA
- Specification：35-100
- Trademark：Nexus Machinery
- Origin：Cangzhou
- HS Code：8455221000
- Production Capacity：30 Sets , Month
Description
No.
Item
Description
1
Product' sizes
According to customer's request
2
Processing material
GI
3
Processing thickness
0.4-0.7mm
4
Main motor power
4kw
5
Power of hydraulic station
3kw
6
Quantity of roller stations
12
7
Production speed
Approximate 15-25 m/min
8
Diameter of shafts
Φ40mm
9
Material of rollers
Cr12 steel with vacuum heat treatment HRC57°-60°
10
Material of shafts
45# steel quenched and tempered
11
Material of cutting blades
Cr12 mould steel with quenched treatment
12
Size of machine
Approximate 4000mm(L)×900mm(W)×1300mm(H)
13
Theoretical weight
Approximate 2000KGS
14
Driven method
Chain transmission
15
Brand of PLC
Delta
16
Cut mode
Hydraulic profile cutting
17
Power supply
380V 50HZ 3Phases or at buyer's requirement
ABOUT US:
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
