Construction Material Making Machine Hollow Brick, Solid Brick, Paver Brick Making Machine Block Machinery Qt8-15

Shandong Xinming International Trade Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Shock
  • Weight：6500 Kg
  • Cycle：15-20 S

Base Info

  • Model NO.：QT 8-15
  • Power：46.7 Kw
  • Rated Pressure：21 MPa
  • Pallet Size：980*870*25 mm
  • Related Accessories：PLD1200 Batching, Js750 Mixer, 100t Silo, Forklift
  • Vibration Force：70-100 Kn
  • Vibration Frequency：2800-4500 Time,Min
  • Condition：New
  • Color：Optional
  • Machinery Test Report：Provided
  • Brick Raw Material：Cement, Concrete...
  • Products：Hollow,Solid Brick, Paver, Houdis, Curb Stone
  • After-Sales Service Provided：Online Support, Free Spare Parts
  • Applicable Industries：Building Material Shops, Home Use, Retail...
  • Transport Package：Nude Package in Container
  • Specification：5700*2050*2650 mm
  • Trademark：XINMING
  • Origin：Linyi, Shandong
  • HS Code：8474802000
  • Production Capacity：50000 Pieces,Year

Description

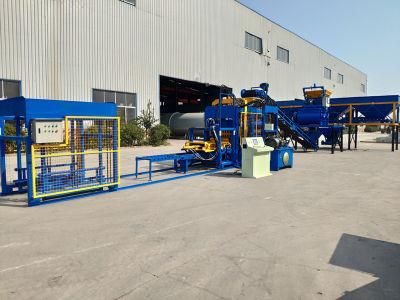

QT 8-15 Full Automatic Concrete Block Making Machine
1)The frame of the forming machine made of high-strength section steel and special welding technology is extremely sturdy
2)The guide column is made of super-strong special steel, and the surface is chrome-plated, which has good compression and wear resistance
3)The distributing machine adopts sensing and hydraulic proportional drive technology to distribute quickly and evenly, which is conducive to the manufacture of thin-walled and porous bricks.
4)Adopt the intelligent PLC control system, man-machine interface, automatic operation, automatic fault diagnosis, and less labour cost.
5) The cycle is 15s, every time can make 8 psc(400*200*200mm) hollow blocks, Which ensuers a certain amount of production, suitable for commercial use.

Construction Material Making Machine Hollow Brick, Solid Brick, Paver Brick Making Machine Block Machinery Qt8-15
 Machine Parameter Shaping time15-20 SPower46.7 KWPressure21 MpaMethodVibration & HydraulicPallet size960*870*25 mmweight6500 KGOver all dimension5700*2050*2650 mm

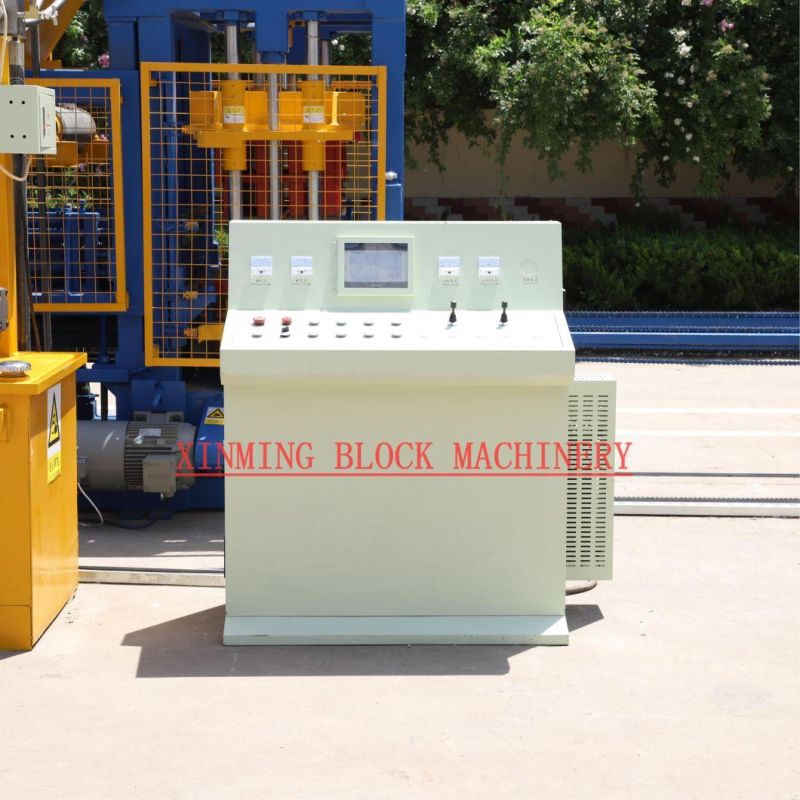

Detail Introduction Construction Material Making Machine Hollow Brick, Solid Brick, Paver Brick Making Machine Block Machinery Qt8-15Name: PLC Control system
Function: Control the operation of the brick making machine: feeding, shaking, pressing, sending and other operating instructions.
Advantages: Programmable Logic Controller, intelligent control system, easy to operate.

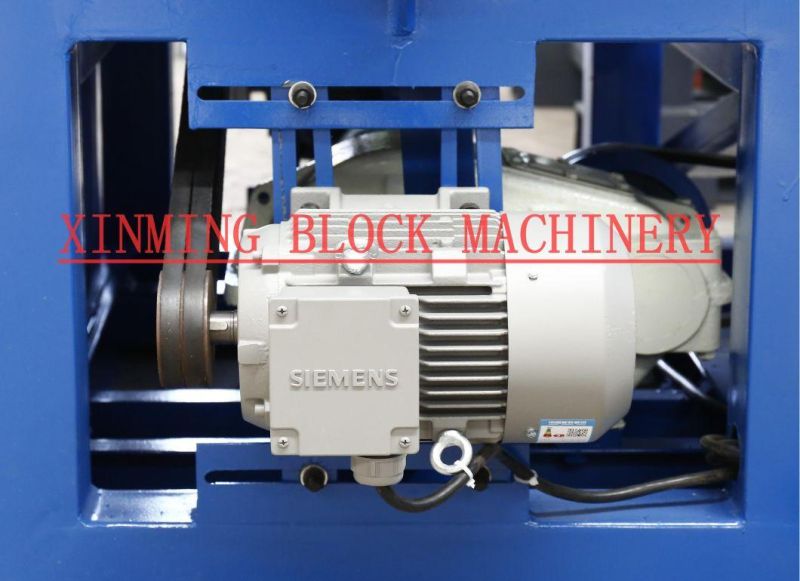

Name: Electrical Motor
Function: Provide electrical support for the operation of the machine.
Advantages: Using Simens Motor variable frequency motor, can start frequently, does not damage the machine, and also saves electricity.Construction Material Making Machine Hollow Brick, Solid Brick, Paver Brick Making Machine Block Machinery Qt8-15 Construction Material Making Machine Hollow Brick, Solid Brick, Paver Brick Making Machine Block Machinery Qt8-15Name: Mold

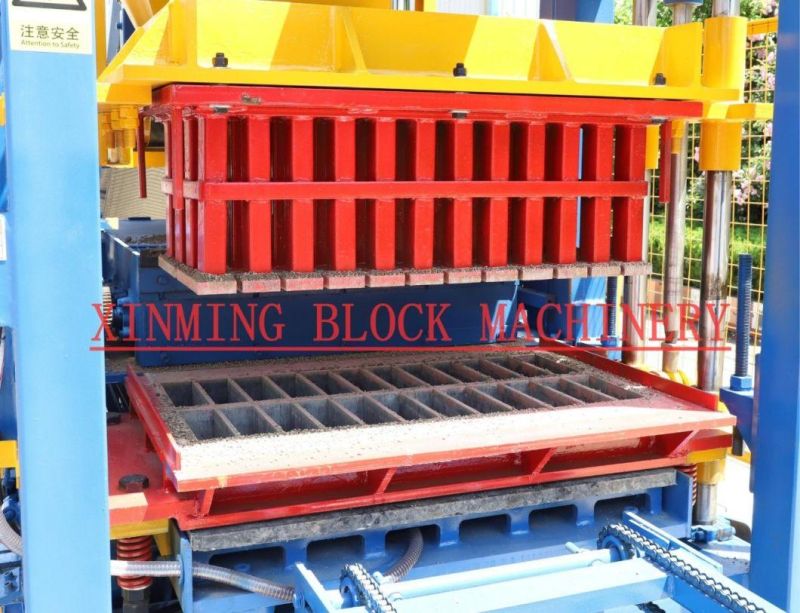

Function: Used as a model to produce various styles of bricks.

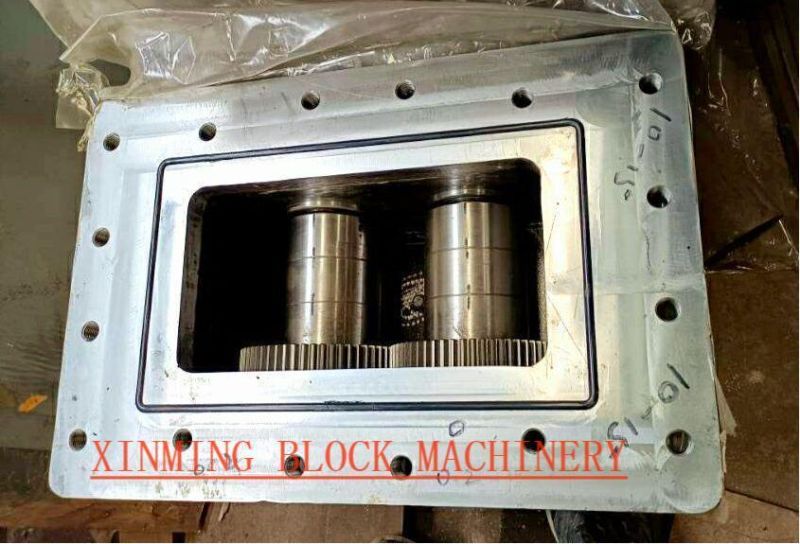

Advantages: After heat treatment, not easy to rust, adopting carburizing technology, makes the mold more wear-resistant and longer service life.Name: Vibration box
Function: Provide the required shock force in the process of making bricks.

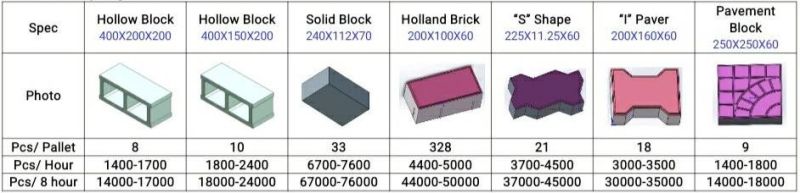

Advantages: Using platform vibration and synchronizing gears, the force is concentrated, the vibration force is greater, and the bricks made are firmer and harder.Construction Material Making Machine Hollow Brick, Solid Brick, Paver Brick Making Machine Block Machinery Qt8-15 Theoretical Production capacity

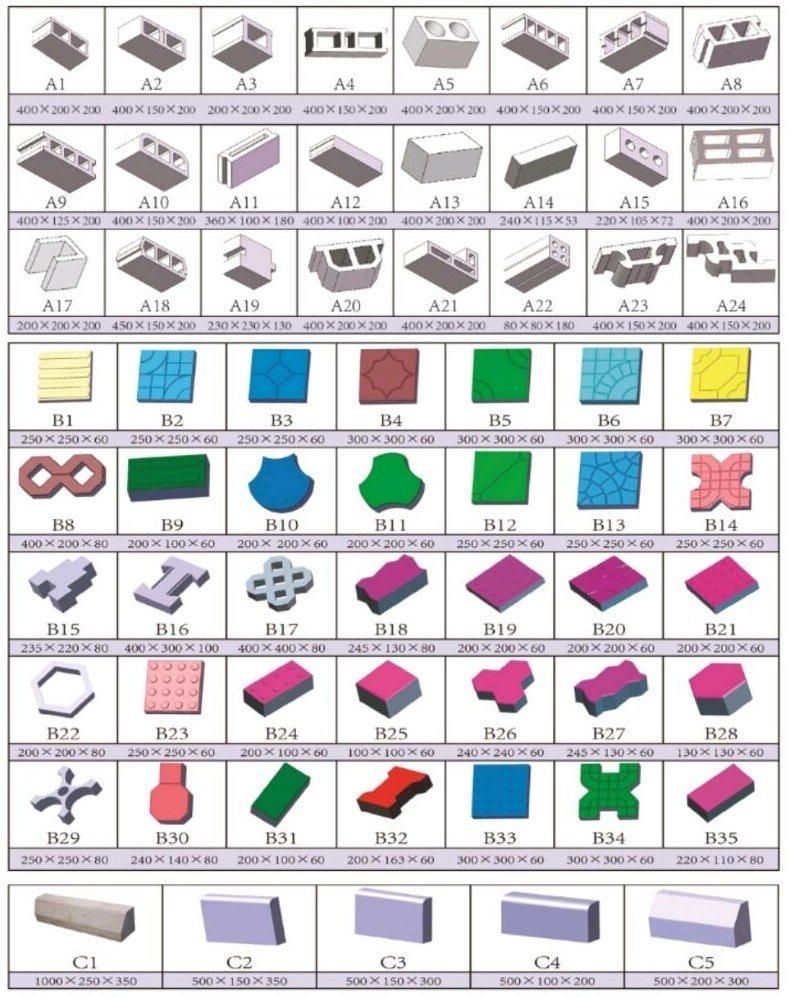

    QT8-15 automatic cement concrete machine can product hollow blocks,solid brick, paver brick or curbstone etc. by changing molds. The following are our popular type of blocks (Can custom by yourself):
Construction Material Making Machine Hollow Brick, Solid Brick, Paver Brick Making Machine Block Machinery Qt8-15

 Sample Display
Construction Material Making Machine Hollow Brick, Solid Brick, Paver Brick Making Machine Block Machinery Qt8-15

 Finished Product Display
Construction Material Making Machine Hollow Brick, Solid Brick, Paver Brick Making Machine Block Machinery Qt8-15

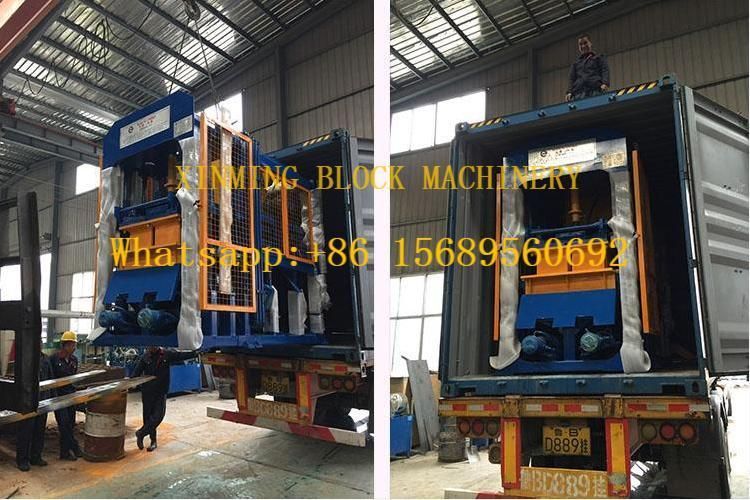

 Packing & Delivery
    We use nude packagein container or plywood box with iron frame packing to ensure that the machines arrive at the destination in good condition.
