• Model NO.：SDFM-1500
• HS Code：8462299000
• Production Capacity：100 PCS Per Month

Basic Info.

Model NO. SDFM-1500 HS Code 8462299000 Production Capacity 100 PCS Per Month

Product Description

FEATURES

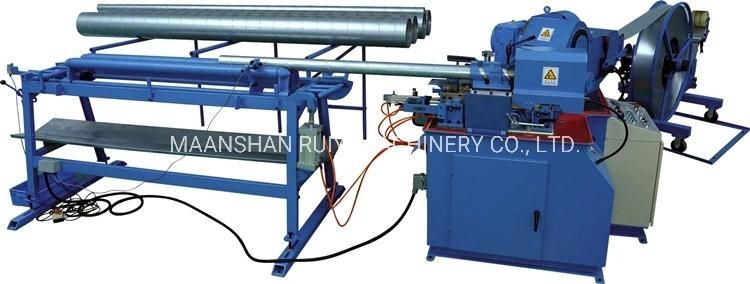

spiral duct making machine is used for producing HVAC round duct. Owing to its excellent performance and low cost, Spiral ductwork has been widely promoted in ventilating and air conditioning systems. It features low wind resistance, high effect, fine rigidity, and convenient installation, thus adapts to the application for large ductwork locations.
1. Special mould for various tube diameters, easy to change and adjust, no need crane or too much manpower
2. Large diameter range
3. High speed synchro flying cutting system

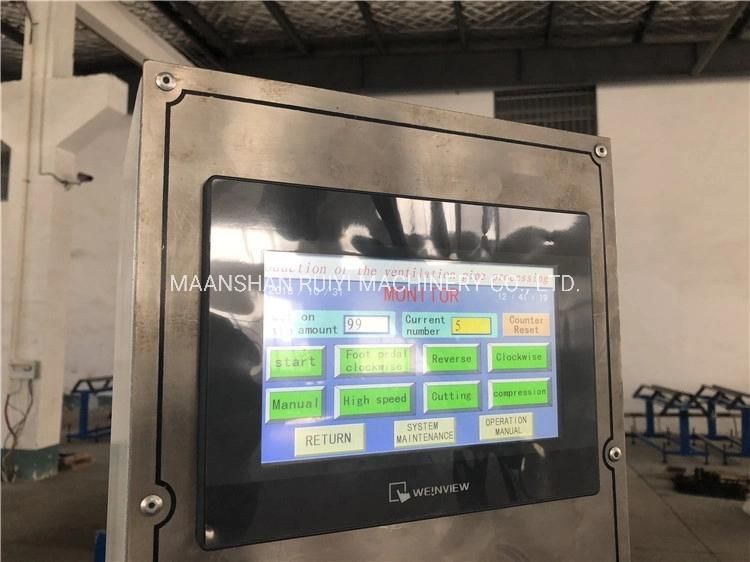

4. PLC control, convenient operation
5. Light and small, suitable for site work

MAIN TECHNICAL DATA

Model	SDJL-1500
Diameter of round tubes	100mm ~ 1500mm
Max. tube length	adjustable
Thickness of strip:	0.4 ~ 1.5mm(galvanized steel)
Width of strip	137mm
Strip speed	1~36m/min, adjustable
Main Power/cutting power	5.5kw/4kw
Control System	Japan Omron transducer & PLC
Dimension(L*W*H)	2750*2000*2600mm
Weight	1834kg

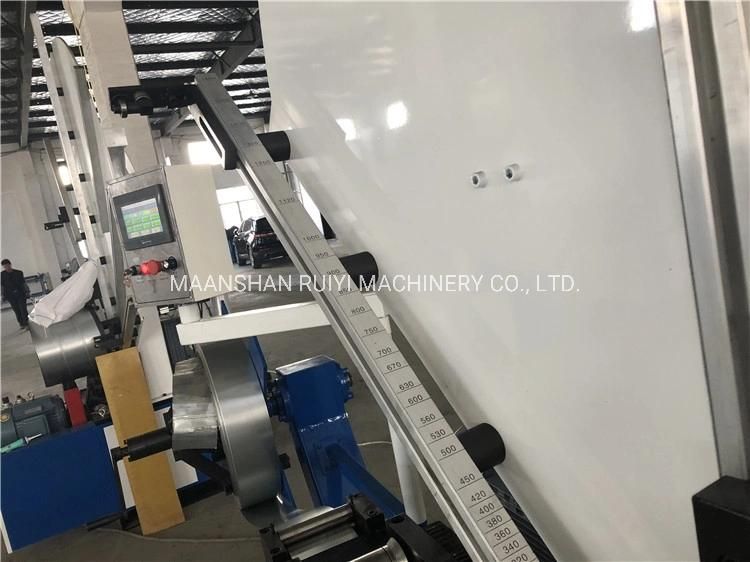

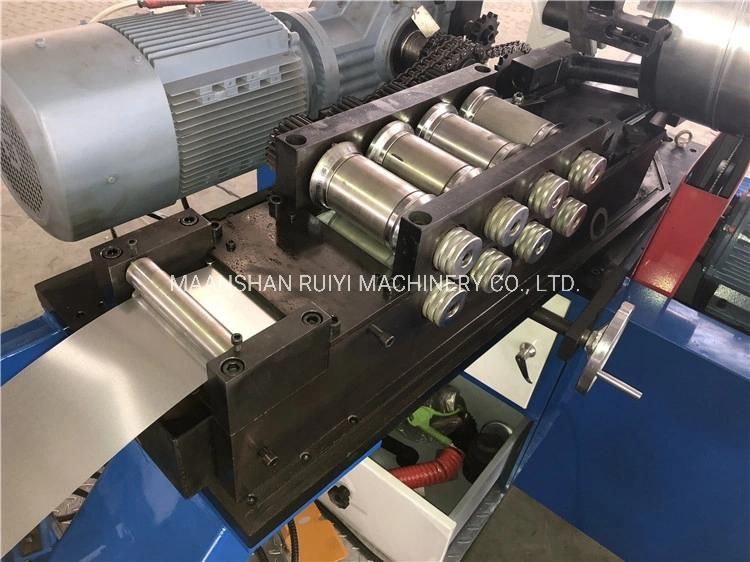

DETAILED PICTURES





We also supply high speed spiral duct machine with roll cutter as follow ,please contact customer service for more information.
https://ruiyi-machinery.en.made-in-china.com/product/AjsEFnbYrOke/China-High-Speed-Spiral-Duct-Making-Machine.html



VISIT AND TRAINING


GOOD PACKAGE AND SAFTY DELIVERY

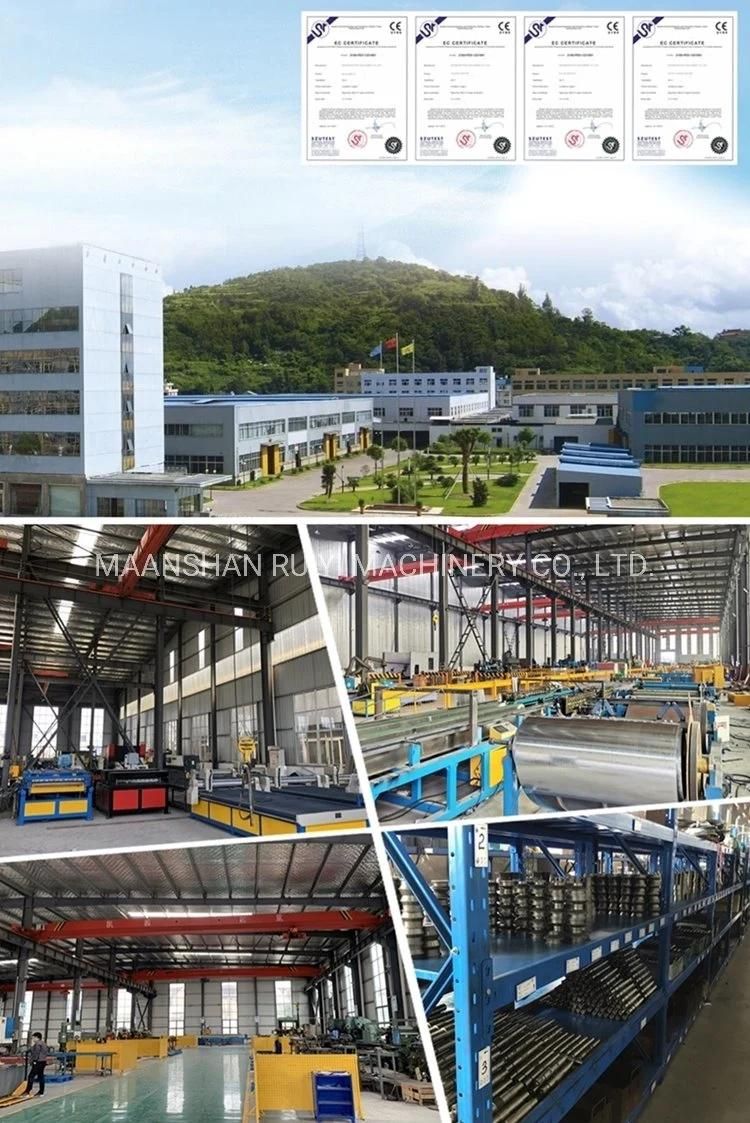

FACTORY SHOW


FAQ
1. Q: Are you a manufacturer or trading company ?
A: We are a manufacturer.

2.Q:How about the quality of your machines?
A: Our company  is a famous brand in china,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

3. Q:What can you provide for after-sales service?
A: 24 hours' online service-- technical support by email or calling
Training how to install and use the machine.
Respect your feedback after receiving the goods.
Provide technical exchanging.
Provide the VIDEO with Install and debug for small and medium size machines if needed.
Oversea install and debug for CNC and other large / heavy and precision equipment.
Engineers available to service machinery overseas.

4. Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
