• Model NO.：1000 metal machine
• Warrenty：1 Year
• Voltage：380V
• Delivery Detail：Shipped in 45 Days After Payment
• Model Number：1000 Trapezoidal Sheet
• Color：as Your Need
• Weight：About 4.5 Tons
• Transport Package：Simple Plastic Film Protection
• Specification：about 9.0*1.3*1.5m
• Trademark：Kexinda
• Origin：Botou Hebei China
• HS Code：220175181
• Production Capacity：30 Sets Per Month

Main parameter of 1000 roofing roll forming machine

1

Suitable to process

Color steel plate

2

Width of the plate

1220mm

3

Thickness of the plate

0.3-0.8mm

4

De-coiler

Manual one, can load 5 tons raw material

5

Rollers for forming

18 rows

6

Diameter of the roller

80mm

7

Rolling material

Carbon Steel 45#

8

Main motor power

4kw

9

Productivity

8-12m/min

10

Cutting method

Hydraulic mould cutting

11

Material of the cutting blade

Cr12Mov

12

Hydraulic cutting power

4kw

13

Processing precision

Within 1.00mm

14

Control system

Delta PLC control

15

Side panel of machine

16mm

16

Main structure of the machine

300 H steel

FAQ:
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

Our service:

1:Engineers available to service machinery overseas.

2: Warranty: 12 months.

3:Technical guidance for free forever.

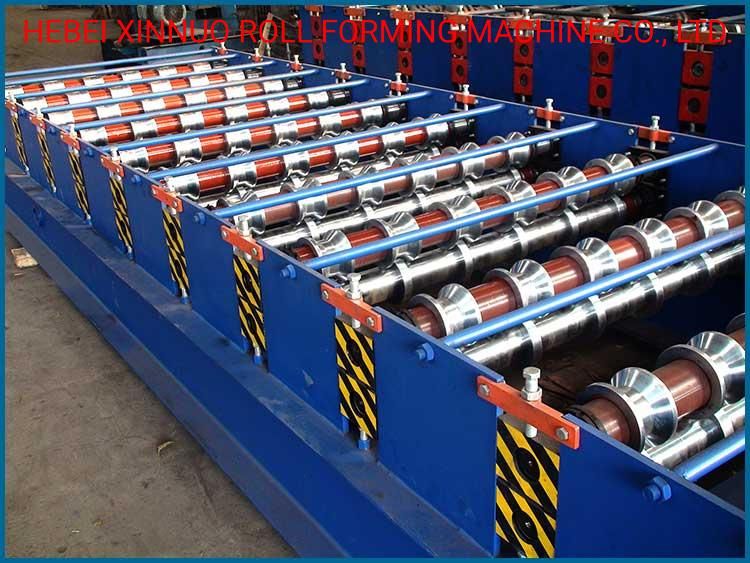

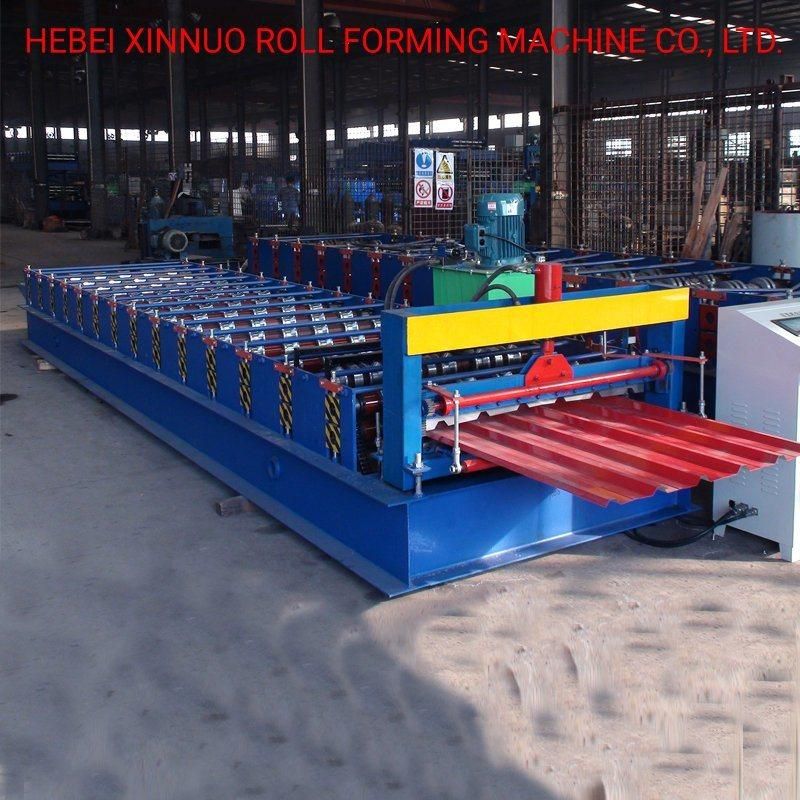

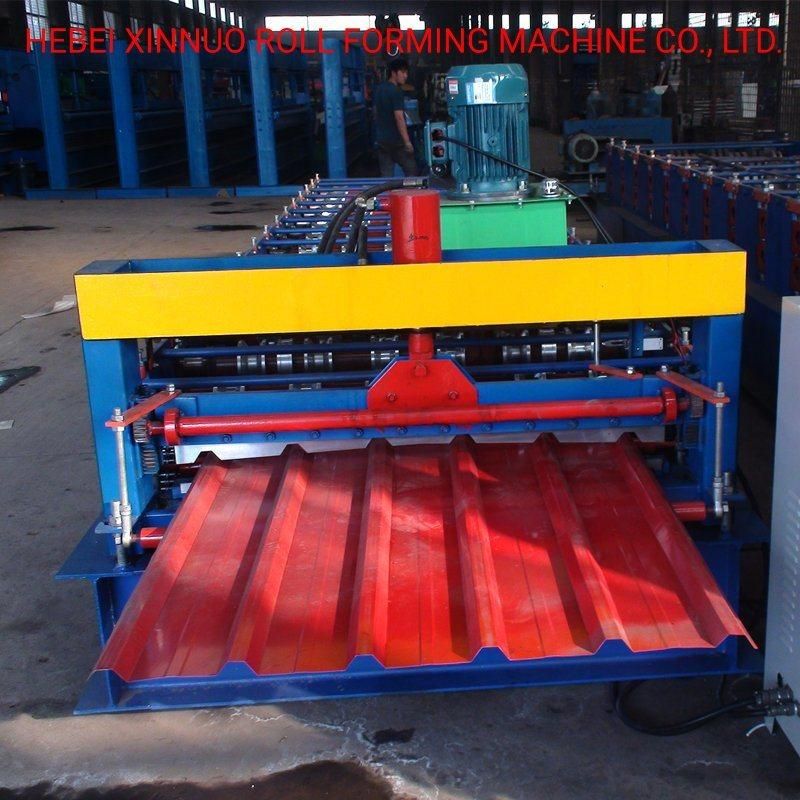

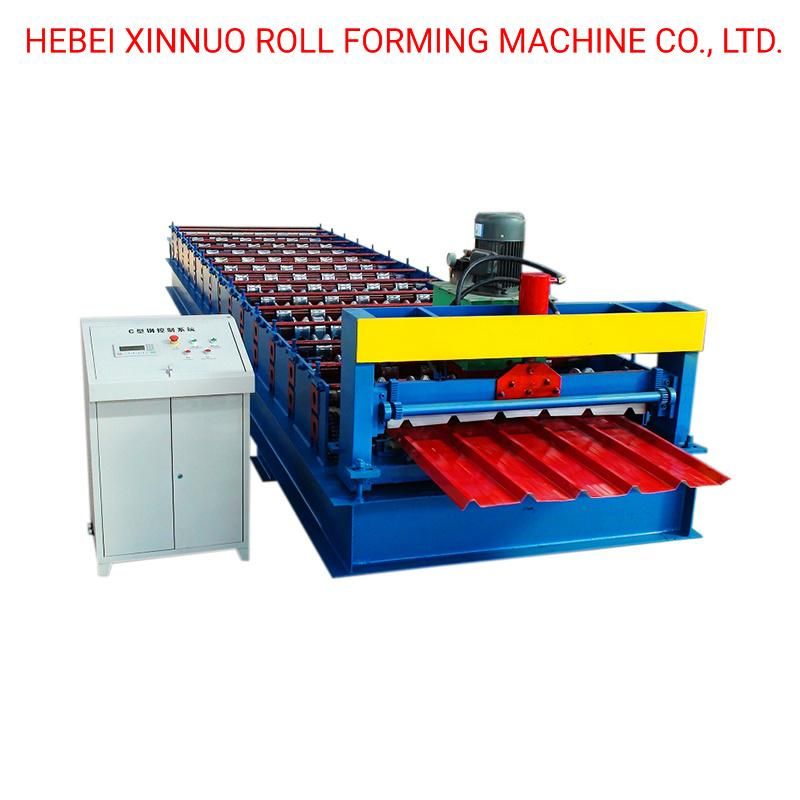

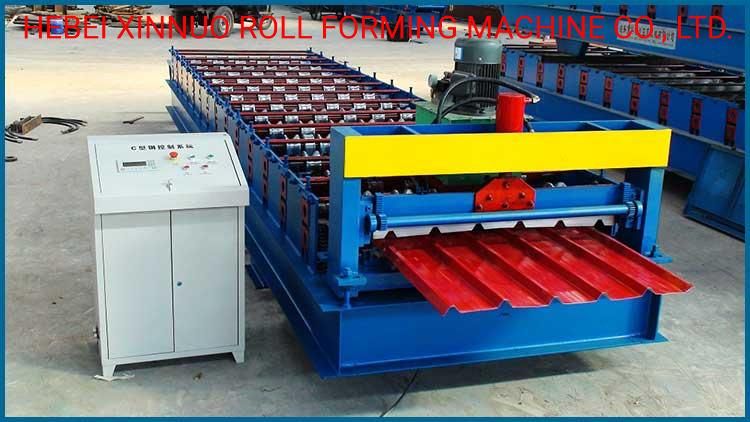

The pics of the machine for reference:
