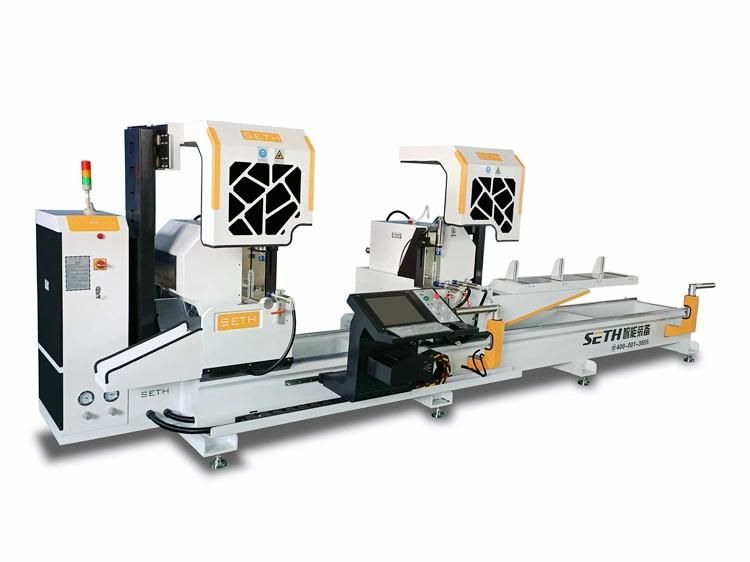

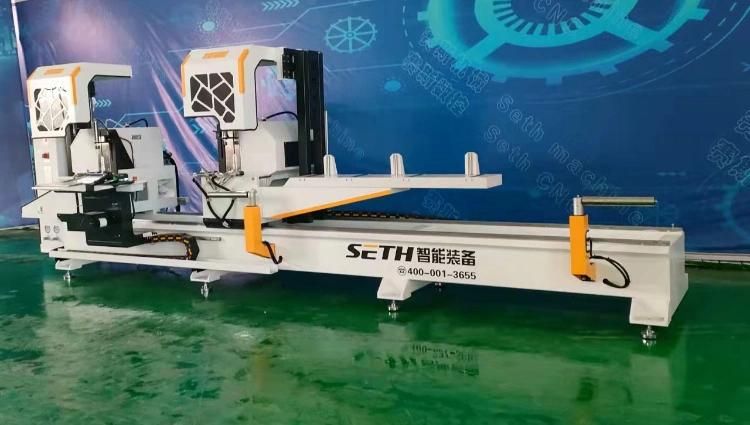

Aluminium Double Head Mitre Saw Aluminium Machinery for Windows and Door
Jinan Seth Intelligent Equipment Co., Ltd.- After-sales Service：Video
- Warranty：24months
- Condition：New
- Certification：ISO, CE, SGS
- Automatic Grade：Semi-Automatic
- CNC or Not：CNC
Base Info
- Voltage：380V
- Cutting Motor Power：1.5kw
- Motor Speed：2800r,Min
- Working Pressure：0.6-0.8MPa
- Cutting Width：Max.120mm
- Cutting Length：Max.220mm
- Cutting Angle：90° 45
- Transport Package：Wooden Box
- Specification：5670x1770x1840mm
- Trademark：SETH
- Origin：Jinan
- HS Code：8461500090
Description
1.Feature:
It's mainly used for cutting industrial aluminum profile, aluminum window and door , curtain wall material and
also used for cutting and blanking PVC and wood profile.
Operation without skilled workers, to solve the factory recruitment difficulties,
Automatic height measuring device, no need to consider profile height error
High precision,Integrated casting table,Integrated spindle linear motor,Integrated gas-liquid damping cylinder.
he head sits on the guide rail.
Supports multiple data import modes,Internet ,LAN,USB, bluetooth, manually entered.
Functions of product on environmental protection,Unique vacuum design,Dust absorption rate 70%. Site clean and tidy, improve productivity at work
Patented rotary lifting bracket can avoid cutting error caused by middle droop
The latest arc cutting technology, sawing profiles safer, faster, more efficient .
2.Technical Parameters
| Power | 380V 50HZ |
| Saw head motor | 2×3KW/ 2840r/min |
| Working pressure | 0.6 ~ 0.8mpa |
| Air consumption | 60L/min |
| Saw length | Max4300mm MIN420mm |
| Saw width | Max 140mm |
| Maximum cutting slope | 45°140×220mm 90°140×300mm |
| Sawing Angle | 90°, 45° |
| Feed speed | stepless speed regulation 0-3m/min |
| Saw blade specifications | ø500 × ø30 × 4.4× Z120 |
| Dimensions | 5800×1800×1500 mm |
| Weight | 1900 kg |
| Repeat constant length accuracy | ≤ 0.05mm |
| Profile cutting Angle tolerance | ±3 ' |
| Cutting plane flatness | ≤ 0.1m |
| Roughness of cutting surface | Ra12.5μm |
3.Company profile:
Jinan SETH Intelligent Equipment Co.ltd.
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,PVC,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.
our main products including aluminum&,PVC,uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
our main products including aluminum&PVC,uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle.
Please join hands with SETH to lead intelligence.
4.Hot selling:
5.Package and delivery:
6.Our Advantages:
7.FAQ:
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company in china.
Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine, CNC milling machine, aluminum punching machine, end milling machine, copy router and corner connector saw, etc; Wood window machines: wood saw, wood window frame machine, vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
we have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching, subsidy USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.
