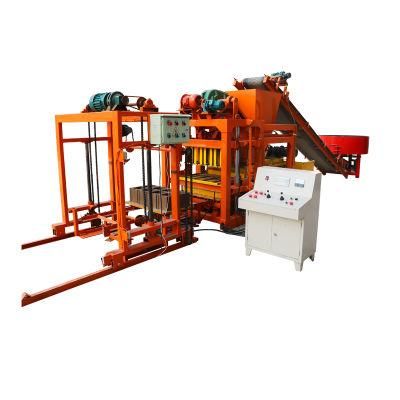

Qt4-20 Used Block Making Machines for Sale Concrete Block Machine Manufacturer Paver Block Machine Price
Linyi Chuangyun Import & Export Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Shaping Mode：Vibration
- Vibration Method：Mold Vibration + Table Vibration
Base Info
- Model NO.：QT4-20
- Power：22kw
- Vibration Force：80kn
- Machine Weight：4t
- Molding Cycle：20 Seconds
- Machine Type：Concrete Block Making Machine
- Products：Hollow Block, Paving Brick
- Operator：4-5
- Transport Package：Nude Pack in Full Container
- Specification：235# steel for machine frame
- Trademark：CYUN
- Origin：China
- HS Code：8474802000
- Production Capacity：10 Sets , Month
Description
Dimension of host machine 4300*1850 *2600mm Pallet size 1010*550*30mm Total power 27.5kw Weight of the host machine 5.5T Vibration force 80KN Molding cycle 15s Intensity of pressure 9-10Mpa Mixer JS500 Raw Materials Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, ganaue, gravel, perlite and other industrial wastes. Applied Products Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass block, slope blocks, interlocking blocks, etc. Applied fields Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

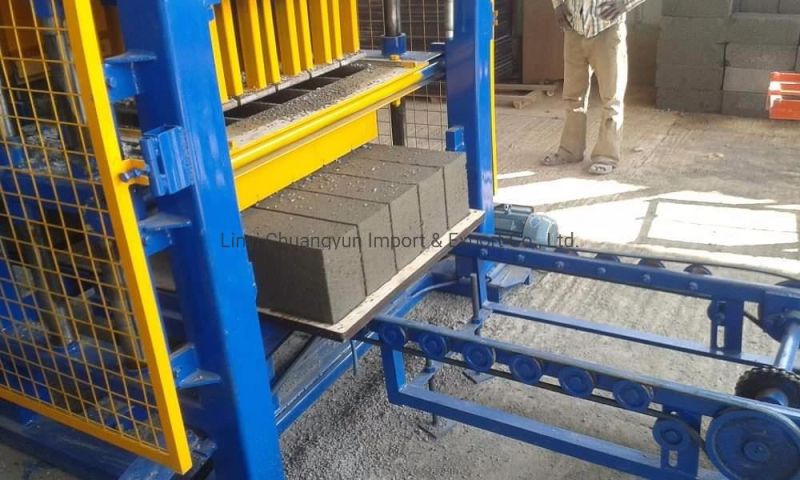

Chuangyun QT4-20 block machine in Tanzania production scene
Why Choose us?
1.Rich experience:
Factory with 20 years experience. Machines have been well proved for good use.
2.Reliability:
We are reputable and large manufacturers of brick machine with numerous certifications guarantee the quality of our machine. No smuggled goods.
3.Competitive price:
Factory supply directly,not trading company,much competitive price,lower more than30% than other company.
4.Perfect after service:
Engineer overseas door-to door service.24 hours online.All the machine one year warranty,technical support by free.
5. Assured machine quality:
1) Host machine total 5.5T,every part all use thicken plate, make the machine strong and wear-resisting.
2) Fully automatic ,very easy operated by workers, greatly reduce the labor-cost.
3) Japan Mitsubishi PLC control system, ensure the machine runs extremely smoothly, long serving life. Faults-displaying and the troubles-shooting on the cabinet.
4) Hydraulic system, three-stage pressure control valve are adopted. so the pressure for all actions of the machine can be adjusted automatic.
5) Direct chain transmission, to sure very low noise, and easy to check the fault.
6) Mould vibration and head pressure together, make the brick high strength and density.
7) All the mold are carburizing by heat treatment, can using more than 120,000 times.
Chuangyun QT4-20 block machine in Tanzania production scene
Why Choose us?
1.Rich experience:
Factory with 20 years experience. Machines have been well proved for good use.
2.Reliability:
We are reputable and large manufacturers of brick machine with numerous certifications guarantee the quality of our machine. No smuggled goods.
3.Competitive price:
Factory supply directly,not trading company,much competitive price,lower more than30% than other company.
4.Perfect after service:
Engineer overseas door-to door service.24 hours online.All the machine one year warranty,technical support by free.
5. Assured machine quality:
1) Host machine total 5.5T,every part all use thicken plate, make the machine strong and wear-resisting.
2) Fully automatic ,very easy operated by workers, greatly reduce the labor-cost.
3) Japan Mitsubishi PLC control system, ensure the machine runs extremely smoothly, long serving life. Faults-displaying and the troubles-shooting on the cabinet.
4) Hydraulic system, three-stage pressure control valve are adopted. so the pressure for all actions of the machine can be adjusted automatic.
5) Direct chain transmission, to sure very low noise, and easy to check the fault.
6) Mould vibration and head pressure together, make the brick high strength and density.
7) All the mold are carburizing by heat treatment, can using more than 120,000 times.
