Hydraulic Automatic Cement Concrete Block Brick Making Machine (QT6-15)

Nantong Hengda Non-Burned Machinery Engineering Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2008
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Concrete Block Making Machine
  • Automation：Automatic
  • Brick Raw Material：Concrete

Base Info

  • Model NO.：QT6-15
  • Method：Hydraulic Pressure
  • Product：Brick
  • Tolerance：0.5mm
  • Condition：New
  • Processing：Concrete Brick Making Machine
  • Capacity：1440 Pieces Per Hour(390*190*190mm)
  • Vibration Source：Frequency Changing Motor
  • Drive：Hydraulic
  • Transport Package：no package
  • Specification：3400*2600*2600 10T
  • Trademark：hengda
  • Origin：china
  • HS Code：84748090
  • Production Capacity：390*190*190mm 11520pieces,day

Description

yield1900 pieces/h(390 × 190 × 190mm)9600 pieces/h(240 × 115 × 53mm)size of pallet850 × 680 × 17mm(PVC pallet)exciting force70KNvibration frequency60HZforming waytable vibration and box vibrationcontrol methodPLCmolding cycle15Spower36kWweight10T

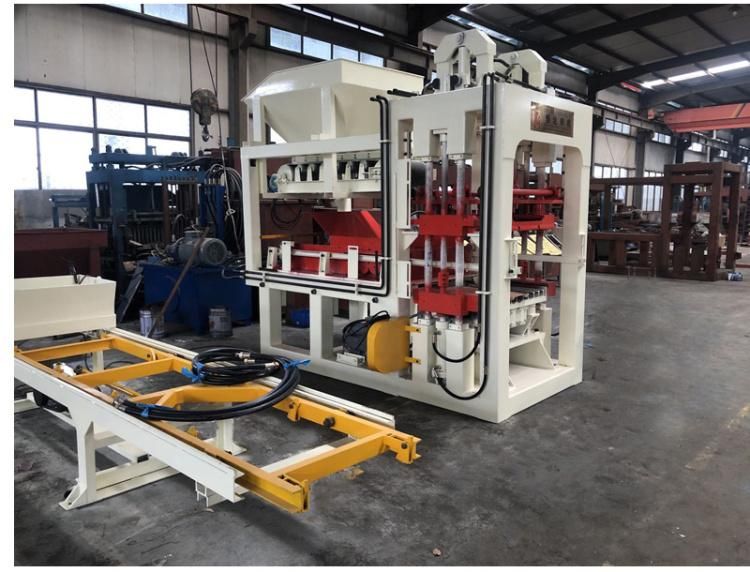

Hydraulic Automatic Cement Concrete Block Brick Making Machine (QT6-15)Hydraulic Automatic Cement Concrete Block Brick Making Machine (QT6-15)


Hydraulic Automatic Cement Concrete Block Brick Making Machine (QT6-15)
Hydraulic Automatic Cement Concrete Block Brick Making Machine (QT6-15)

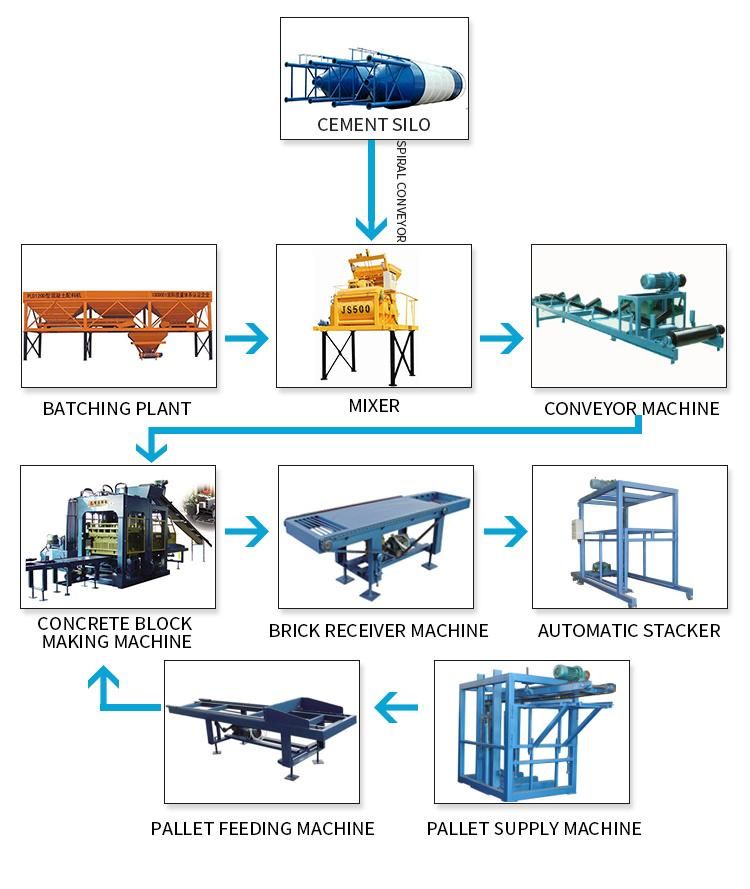

QT6-15 block making machine flow chart

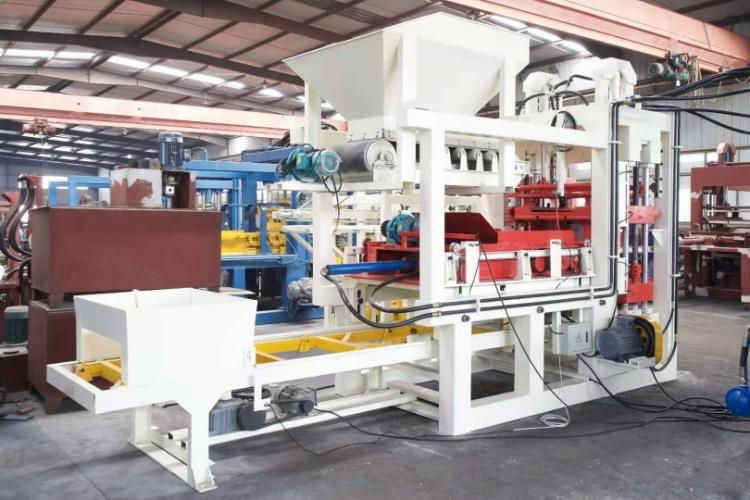

Hydraulic Automatic Cement Concrete Block Brick Making Machine (QT6-15)

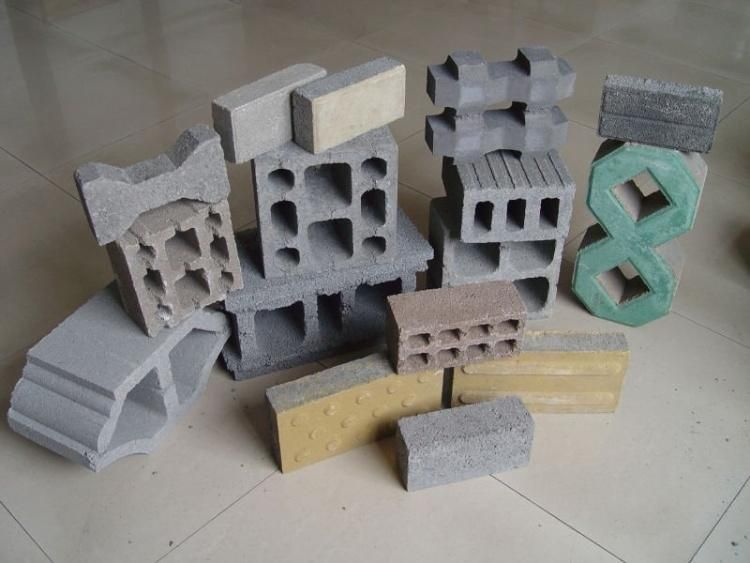

Block samples

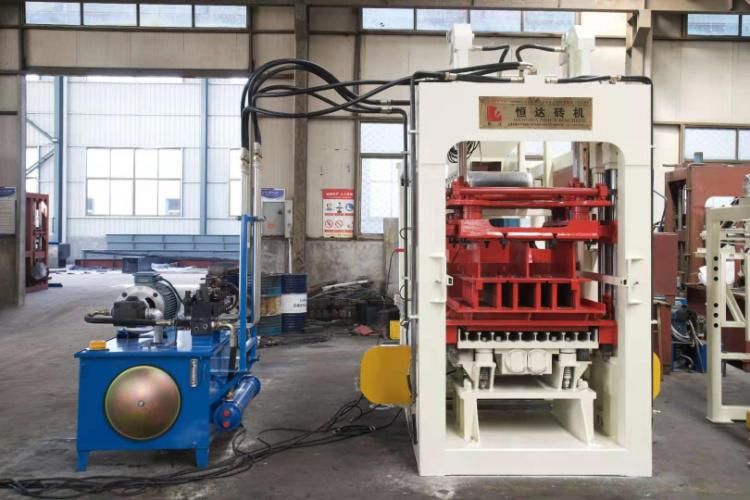

Hydraulic Automatic Cement Concrete Block Brick Making Machine (QT6-15)

Our advantages

 Our block making machine , with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products

   A. LG PLC, with great adaptability, guarantees the stability and reliability of the machine.

    B. Visualization touch screen, with easy operation;

   2. Use Frequency Conversional Control Technology, which controls the block making:

    A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould,    protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;

    B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;

    C. Power saving: 30%;

3. Use doubles high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure

    A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;

    B. Guarantee production stability;

4. 360° Multi-Shaft Rotating and Compulsory Feeding:

    A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed

    B. This uniform feeding is applicable for different kinds of raw materials and moulds;

5. Use heat treatment on moulds and main parts of the machines:

    A. Heavy duty machine structure and wear resistant moulds;

    B. The hardness reaches up to HRC 52-58;

    C. Greatly improves the using lifetime of the machine by 50%.







Buying details
We have two kinds of brick machine, one produce clay brick making machine, another produce concrete block making machine, when you want to buy, you please tell me
1. You need clay brick making machine or concrete block making machine?
2. Your brick size( length, width and height)
3.Your brick picture and brick production
Hydraulic Automatic Cement Concrete Block Brick Making Machine (QT6-15)Hydraulic Automatic Cement Concrete Block Brick Making Machine (QT6-15)

Anticipating for your inquiry, and we warmly welcome the new and old customers to visit our company.
