Building Material Making Machinery

Low Price High Quality Metal Roll Forming Machinery

Botou Huikeyuan Engineering Control Co., Ltd.
  • Certification:CE
  • Condition:New
  • Customized:Customized
  • Usage:Roof, Wall
  • Transmission Method:Hydraulic Pressure
  • Name:Roll Forming Machinery

Base Info

  • Model NO.:HKY
  • Origin Place:China
  • Material:Color Steel
  • Type:Metal Roll Forming Machinery
  • Method:Hydraulic Pressure
  • Processing:Roll Forming
  • Product:Tile
  • Brick Raw Material:Steel Profile
  • Automation:Automatic
  • Tolerance:0.5mm
  • Transport Package:Standard Export Packaging
  • Specification:9m*1.6m*1.4m
  • Trademark:HKY
  • Origin:Hebei Botou
  • HS Code:845522100
  • Production Capacity:500 Sets,Year


Basic Info.

Model NO. HKY Origin Place China Material Color Steel Type Metal Roll Forming Machinery Method Hydraulic Pressure Processing Roll Forming Product Tile Brick Raw Material Steel Profile Automation Automatic Tolerance 0.5mm Transport Package Standard Export Packaging Specification 9m*1.6m*1.4m Trademark HKY Origin Hebei Botou HS Code 845522100 Production Capacity 500 Sets/Year

Product Description

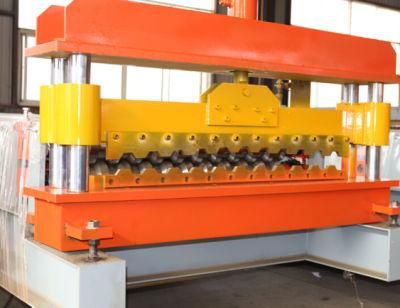

High Efficiency Corrugated Roof Tile Roll Forming Machine

Low Price High Quality Metal Roll Forming Machinery
1. Working Flow:

Decoiling--feeding---forming---cutting------finished product
2. Parts of Equipment:
Decoiler ,roll forming machine, hydraulic cutting,electric system(PLC control system),hydraulic system, stacker.

3. Techincal description:

Technical Parameters:
1). Main Motor Power: 5.5kw
2). Hydraulic Station Power:4KW
3). Hydraulic Oil Pump: CB-E310
4). Sprocket: P-25.4
5). Roller Station: 14
6). Yield Strength: 32MPa
7). Diameter of Principal Axis:  95mm(a key way is in the axle so that the roller can be   tight in the axle)
8). Material of Roller: 45#steel hard chrome plating
9). Processing Speed: 8-12m/min
10). Thickness: 0.3-1mm
11). Installation Dimension (L*W*H): 7.5m*1.6m*1.4m
12). Material of Blade: Cr12
13). Coil Width: 1000/1200/1220/1250mm
14). Cover Width: according to the drawing
15). Total Weight:  5.5T
16). Equipment Parts:  forming machine, hydraulic cutter(30mm steel board welded ) hydraulic station, PLC , equipment base(GB360channel steel welded)  and linear transducer ,stacker, machine cover.
4.Picture of our factory

Low Price High Quality Metal Roll Forming Machinery
5.Our Certificate

   CE, SGS

Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 24months

7.Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things
8. After Service
a.One year guarantee for whole machine.
b.24 hours technica support by email or calling.
c. If there is any problem found of the machine, we will repair it for free in one    year.

9.OEM Services
We can design and manufacture the machine according to the customers' requirement. You can send me the profile drawing and we will design the machine to you.
We provide you the machines not only with best quality
but also best service for you.
By the way,we warmly weclome you to visit our facory!

10.Other Machines

 Single layer roll forming machine,

 Double layer roll forming machine,

 Purlin roll forming machine,

 Glazed tile roll forming machine,

 Highway guardrail roll forming machine,

 Sandwich panel roll forming machine,

 Door frame roll forming machine,

 Ridge cap roll forming machine,

 Floor deck roll forming machine,

 Stud and track roll forming machine and so on.

11. Questions:

1. How many years since you have been in this field?

Oour company has been producing roll forming machines for almost 20years.
We have rich experience for manufacturing and designing the machine.

2. Where is the nearest airport?

Tianjin or Beijing, both are ok. Tianjin is nearest.
From Tianjin to Cangzhou, the high speed train, it takes only 30 minutes.
From Beijing to Cangzhou, it takes only 51 minutes.
We will go to Cangzhuo railway station to pick you up, if you come to visit
Our factory.

3. How about your quality and price?

Our machine uses the advanced technique, we are leading in this field.
Most of other roll forming machine factories, their boss are students of
Our general manager. We always leads first in this field.
The quality is among the highest.
But the price is not high, it is low. Because our rich experience help us
To do the highest quality machine but with lowest cost. Then our price
Is not high.

You can contact me any time.
Niki Wang
Add: Fuzhuang Development Zone Botou City, Hebei, China
Tel: +86 317 3087243
Fax: +86 317 3087243
Cel: +86 15503170268

Low Price High Quality Metal Roll Forming Machinery

 We can design the machine totally according to your requirement.!
 Name HKY Roll Forming Machine
 Original Place Botou, Hebei, China
 Price Low price, we can negotaite it further
 Quality High quality, top three in Hebei Area
 Service Good after service
 Company Name Huikeyuan Engineering Control Co.,Ltd
 History  since 2002 , producing roll forming machine
 Main Machine Kinds Single layer, Double layer, Glazed Tile, C Z purlin, Sandwich Panel, Highway Guardrail,
  Shutter Door, Stud and Track, Door Frame, Floor Deck, Uncoiler, Bending Machine,
  Shearing Machine, Punching Machine and so on.
