• Length of Pole：6-25m
• Riding Wheel Thread：1870mm
• Riding Wheel Wheelbase：1500-2800mm
• Riding Wheel External Diameter：800-920mm
• Riding Wheel Width：100mm
• Angle of Wheel Center and Steel Mould：75°-110
• Max D of Molding Drainage Pipe：Plain Top,Tongue and Groove,Pipe-Jacking 2600,1800
• Max D of Molding Drainage：Bell and Spigot 1800mm
• Motor Power：37-90kw,55-132kw
• Speed of Main Driving Axle：100-500(Continuous) R,Min
• Transport Package：Wooden Box and Other Packing Materials as Per Kind
• Specification：CE
• Trademark：FOCUS
• Origin：Zhengzhou, Henan
• HS Code：7308400000
• Production Capacity：100 Sets Per Month

Basic Info.

Length of Pole 6-25m Riding Wheel Thread 1870mm Riding Wheel Wheelbase 1500-2800mm Riding Wheel External Diameter 800-920mm Riding Wheel Width 100mm Angle of Wheel Center and Steel Mould 75°-110 Max D of Molding Drainage Pipe Plain Top/Tongue and Groove/Pipe-Jacking 2600/1800 Max D of Molding Drainage Bell and Spigot 1800mm Motor Power 37-90kw/55-132kw Speed of Main Driving Axle 100-500(Continuous) R/Min Transport Package Wooden Box and Other Packing Materials as Per Kind Specification CE Trademark FOCUS Origin Zhengzhou, Henan HS Code 7308400000 Production Capacity 100 Sets Per Month

Product Description

Concrete Spun Pile/Pole Mould

Why would our clients choose FOCUS Steel Mould?
Pre-stressed Concrete Spun Pole Spinning Machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.
Pre-stressed Concrete Spun Pole Spinning Machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.
The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.
Working Principle
1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.
2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.
3. The speed of separation is slow when the viscosity of slurry is high.
4. It is good for centrifugal sedimentation when the slurry density is different in each component.


FOCUS Belt Conveyor Series Steel Mould Technical Parameters:

Inside Ddameter of small end (mm)	Wheelbase(mm)	Wheel Diameter(mm)	Length(mm)
300	2000	510	7-11
350	2000	610	7-11
400	2000	610	7-12
450	2000	710	7-12
500	2000	710	7-12
550	2000	810	7-12
600	2000	810	7-15
800	2000	1010	7-15
1000	2000	1210	7-15

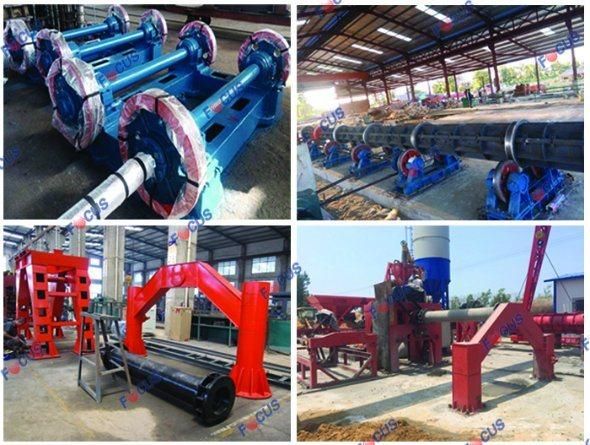

Our Steel Mould have been installed and operated all over the world:

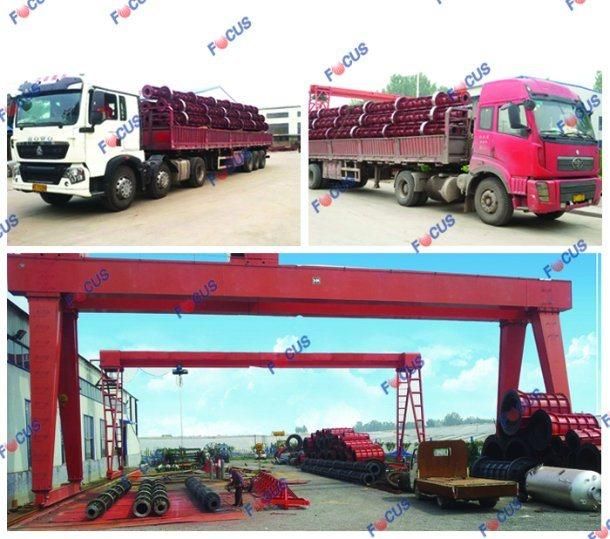

Our Steel Mould have been delivered /distributed to the world and received high reputation-it'll be such a great honor if you can join us:

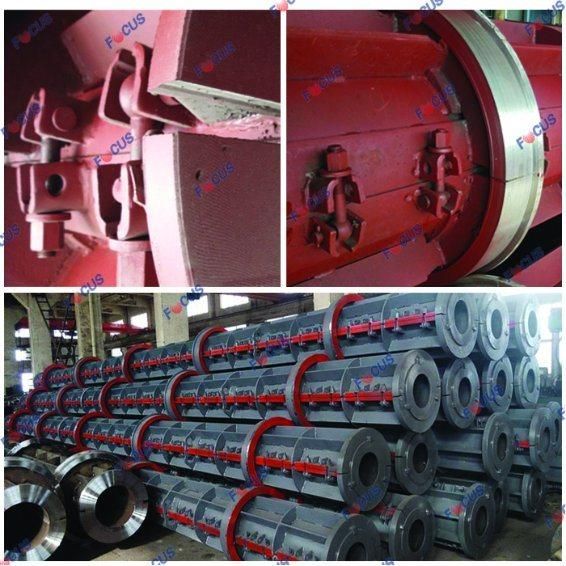

Steel Mould
1.High quality and good price
2.Great after-sale service
3.ISO CE and CE certified,12 months warranty
