Qtj4-40 Semi-Automatic Block Machine Concrete Brick Machine Cement Brick Machine
Shandong Xinming International Trade Co., Ltd.- After-sales Service：Our Engineers Be Ale to Come
- Warranty：2 Years
- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Semiautomatic
- Type：Vibration Molding
Base Info
- Model NO.：QTJ4-40
- Raw Material：Cement Sand Fly Ash
- Dimension(L*W*H)：1600(L)*1100(W)*2100(H)mm
- Block Type：Hollow Concrete Brick Machine
- Method：Hydraulic Pressure
- Voltage：220V,380V

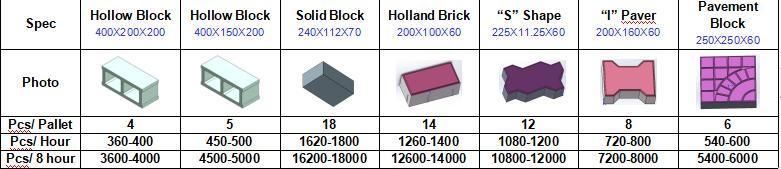

- Brick Size：400X200X200mm, 400X150X200mm, 240X112X70mm...
- Production Capacity (Pieces/8 Hours)：3600-4000PCS,8hour for 400*200*200mm
- Power：8.8kw
- Cycle：36-40 Second
- Pallet Size：850*550*20mm
- Machine Weight：1.1t
- Land Area：Shaded Area : 20-50m2 Stoking Area:200-500m2
- Related Accessor:Ies：Jq350 Mixer and 600PCS Pallet
- Worker：3-4 Workers

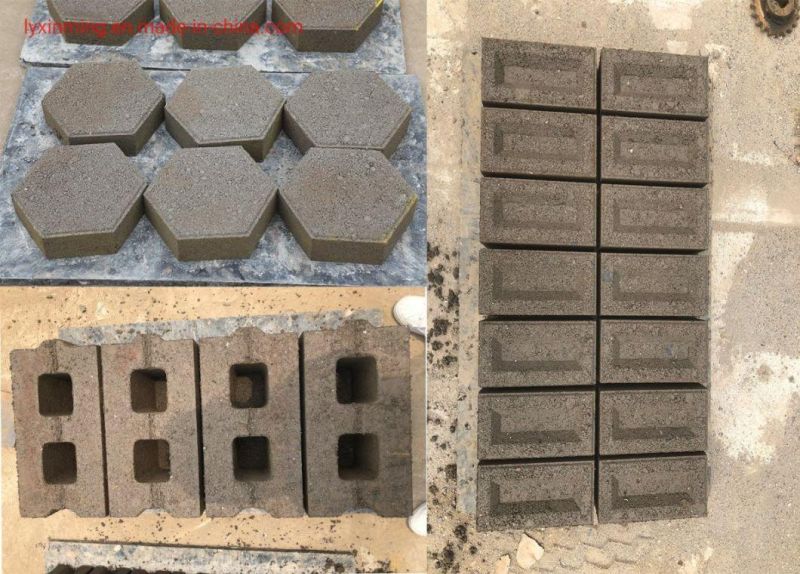

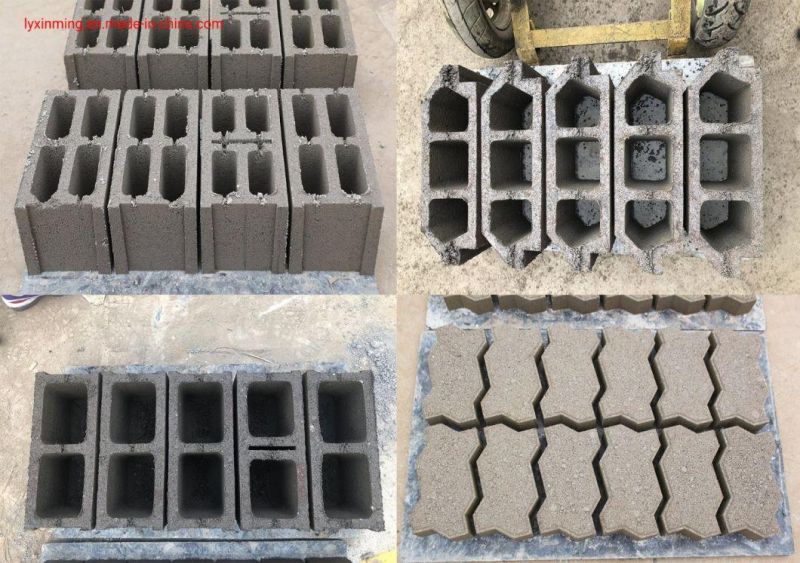

- Products：Hollow,Solid Blocks, Pavers, Houdis, Curb Stone
- Transport Package：Plywood Box with Iron Frame
- Specification：1600*1100*2100
- Trademark：XINMING
- Origin：Shandong, Linyi
- HS Code：8474802000
- Production Capacity：50000sets,Year
Description
1.QTJ4-40 is a semi-automatic block making machine,which can make various brick types.

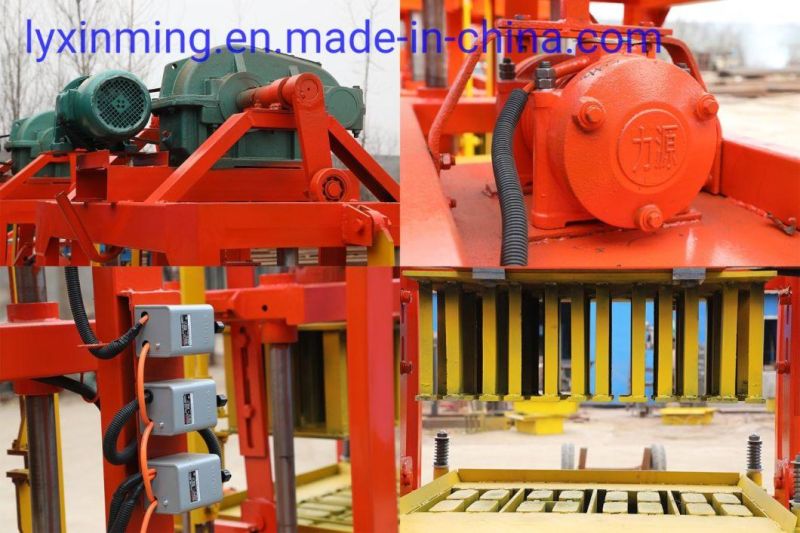

2.Its lifting motor has its own braking function and has strong braking performance;the limit card can control the height of the brick.
3.It has four guide columns,which ensure that the mold does not deviate;the vibration platform makes the mold box bear uniform force,the vibration force is large and uniform,and the brick density is good.
4.Mechanical transmission of finished bricks,steel plates are used for transmission,and steel plates are stable and not easy to get stuck.

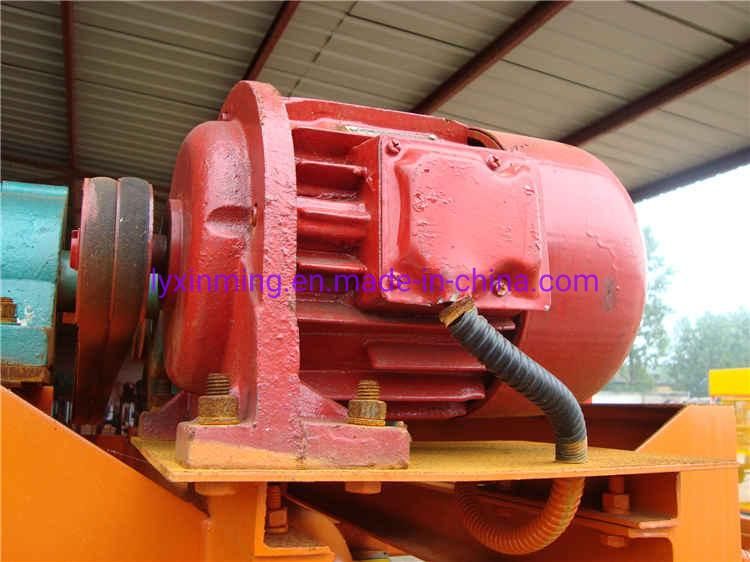

Electrical MachineryFunction:Use frequency conversional control Technology,which controls the block making
Advantage:
1)Frequency Conversion Control:guarantees the precise and parallel movement between tamper head and mould,protects the products from transfiguration;increases the production rate by improving the vibrating efficiency;
2)Controls the instantaneous start and stop of the motors,to protect the motor from over-heating caused by constant workingBlock mould

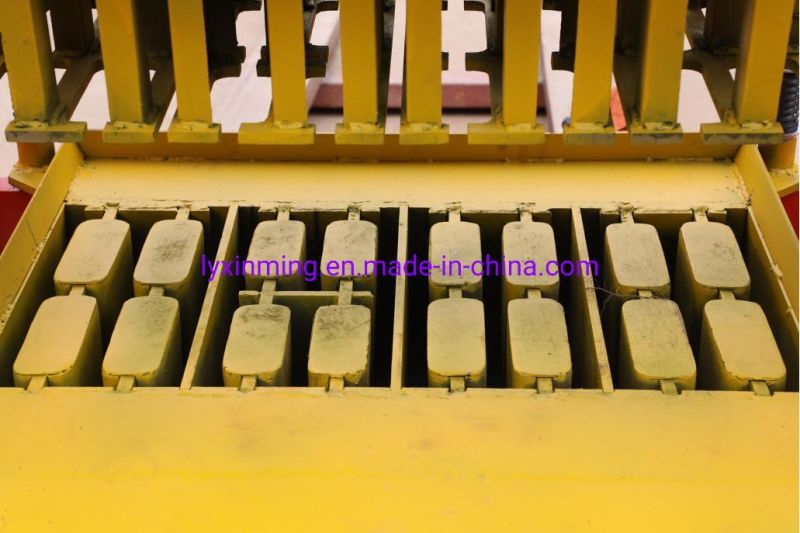

Function:Comprise an upper die and a lower die,and that interaction between the upper die and the low die prevents the periphery of the punched material from being deform.
Advantage:After carbonization and wire cutting technology,the mold is more wear-resistant and has a longer service life.

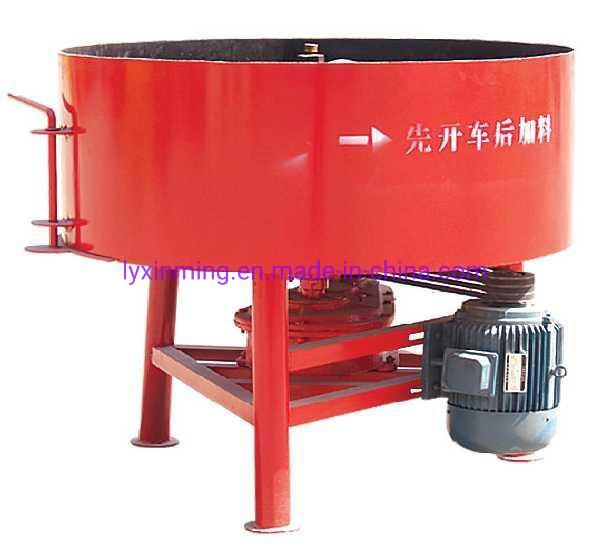

MixerFunction:The rotating shaft drives the blades to shear,extrude and overturn the shaking in the barrel,so that the batch is uniformly mixed in the violent relative movement.
Advantage:Uniform and thorough stirring,no residue,simple structure,simple operation,fast discharging speed,firmness and durability,long service life and convenient maintenance.

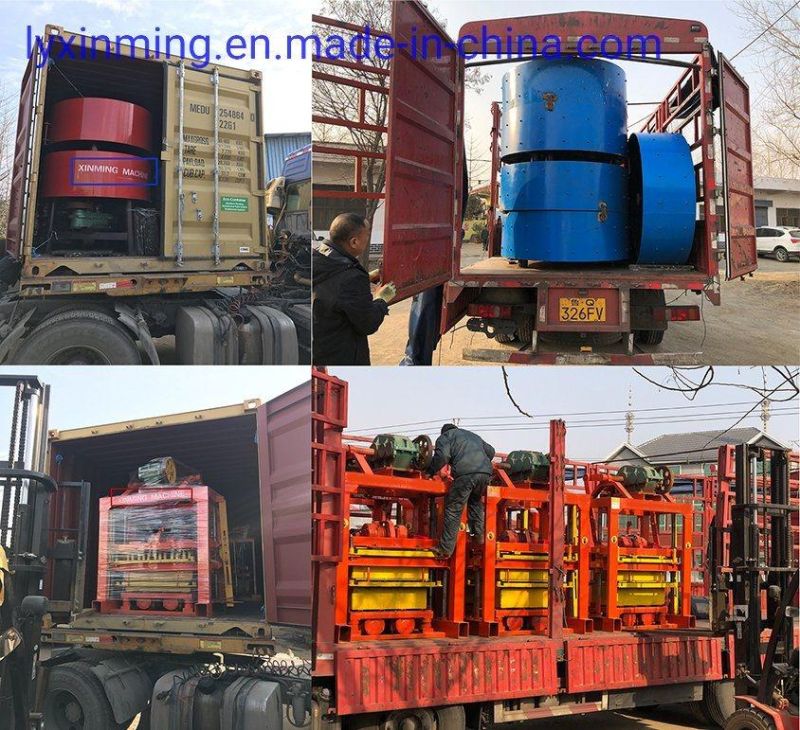

1.Packing:Seal the whole body with plastic wrap and put it in ironform plywood box.
2.Terms of delivery:From our factory to Qingdao Port,China
3.Guarantee:A warranty period for the Machine is 12 months.
1.Before-sale services:
1)Guide customers to choose the best appliable machine type;provide the advanced,energy-saving and practical technological process.
2)We are responsible for the process chart and design.
2.Sale services:
1)Products must be inspected strictly before selling.
2)In accordance with the agreements stipulated in the contract.
3)We will organize delivery.
3.After-sale services:
1)Our company will send professional engineers to guide eith device installation,debugging and training operators until customers are fully satisfied.Moreover,we will design and manufacture products,according to the special requirements of customers.
2)Because of the problems caused by quality rather than human factors,we repair them free of charge.The quality guarantee period for machines is one year except the wearing parts.

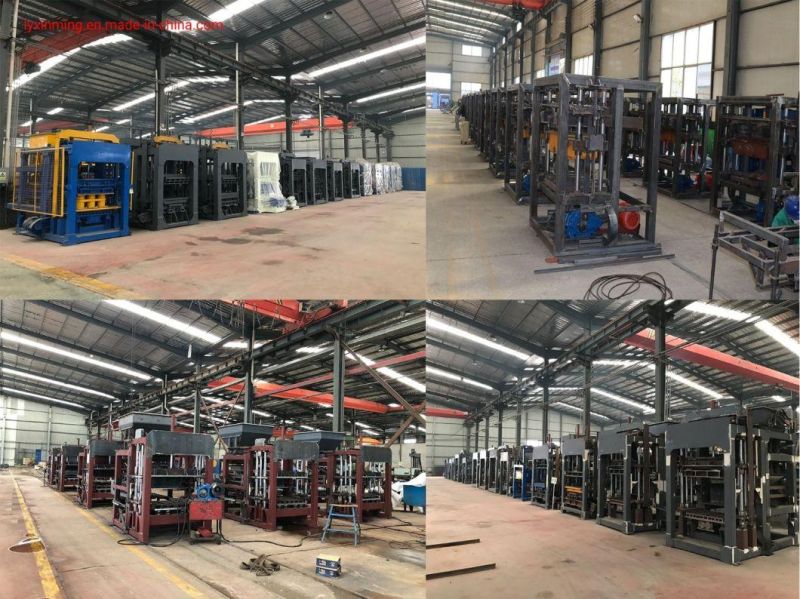

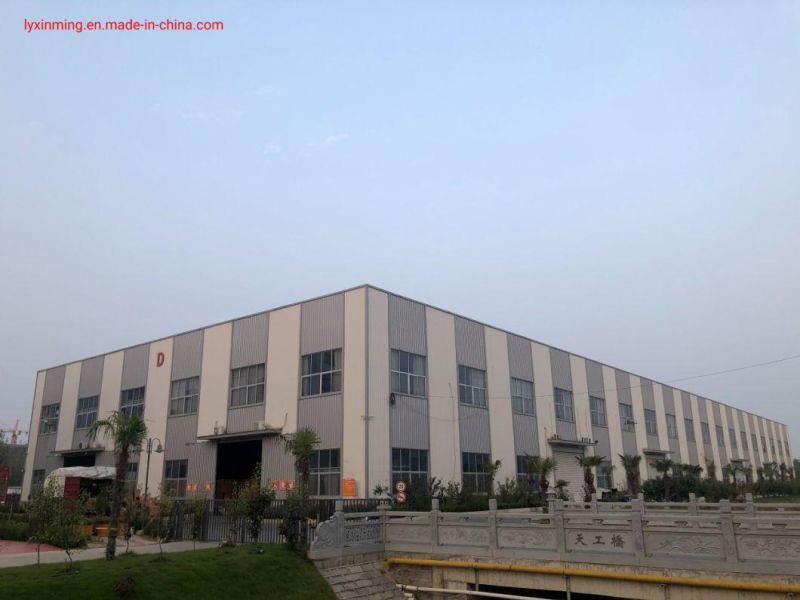

Xinming Machinery is located in Linyi city,Shandong Province,China,specialized in manufactuering and selling concrete block machine,clay brick machine,concrete mixer,crusher,loader,forklift and another Associated machinery for over 19 year. We are leader in this industry for the quality, supply capacity and service. Professional Aftersale service system, advanced equipment that providing high quality of machines all over the world.
So far, Xinming Machinery has been exported to more than 100 countries and regions such as Africa, Southeast Asia, South America, and the Middle East. Have a perfect after-sales service system.The company adheres to the tenet of "building on integrity, prestige-based, and quality-based", and adheres to the spirit of pioneering, enterprising, unity and hard work, and walks hand in hand with elite customers all over the world to achieve mutual benefit and win-win.
Below is our contact information, please contact us. We can send you many machine working videos by mobile. We can talk further.
Thank you for your support and trust!
Export company: ShanDong Maiwoden Ioport and Export co.,ltd.
Add: Tancheng Industrial Area, Linyi City, Shandong , China
Welocone to come to visit our factory!
