Single Head Corner Crimping Machine for Aluminum Windows and Doors Making

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Semi-Automatic
  • CNC or Not：not CNC
  • Voltage：380V
  • Model：Lmb-a-120

Base Info

  • Model NO.：LMB-A-120
  • Input Voltage：380V 50Hz
  • Input Power：2.2kw
  • Hydraulic Pressure：15MPa
  • Air Pressure：0.4~0.6MPa
  • Air Consumption：0.2 L,Time
  • Oil Capacity：20L
  • Profile Width：<120mm
  • Combining Cylinder Movement：98mm
  • Locator Adjustment Range：80mm
  • Overall Dimension：1300*1200*1300mm
  • Transport Package：Plastic Film or Depends on Customers
  • Specification：1400*1200*1300mm
  • Trademark：Yuefeng
  • Origin：Jinan Shandong, China
  • HS Code：8477800000
  • Production Capacity：30 Sets,Month

Description

Basic Info.

Model NO. LMB-A-120 Input Voltage 380V 50Hz Input Power 2.2kw Hydraulic Pressure 15MPa Air Pressure 0.4~0.6MPa Air Consumption 0.2 L/Time Oil Capacity 20L Profile Width <120mm Combining Cylinder Movement 98mm Locator Adjustment Range 80mm Overall Dimension 1300*1200*1300mm Transport Package Plastic Film or Depends on Customers Specification 1400*1200*1300mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 30 Sets/Month

Product Description

Single Head Corner Crimping Machine for Aluminum Windows and Doors Making

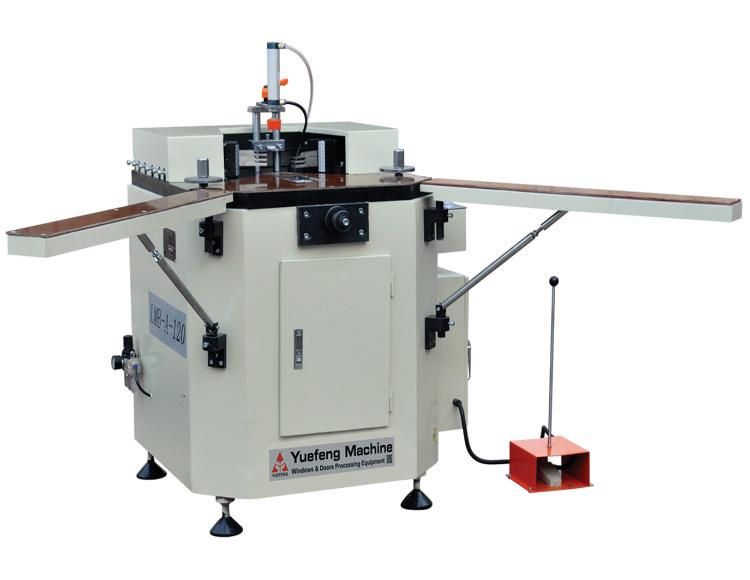

LMB-A-120 Aluminum Window Corner Crimping MachineSingle Head Corner Crimping Machine for Aluminum Windows and Doors Making

> Used for 90° corner combining.

> Adjustable corner combining tool that achieve multi-position corner combining.

>  Inner locator can sit below the worktable, easy operation.

> Hydraulic system supplied large punching and riveting force.

>  Left and right punching heads adopt hard synchronous feeding device, thus makes the connection more firmly.

>It has features of easy operation, reliable performance and convenient maintenance.

Technical Parameter:

ModelLMB-A-120
Input voltage380V 50Hz
Input power2.2kw
Air pressure0.4~0.6MPa
Air consumption0.2L/TIME
Oil capacity20L
Profile width≤120mm
Combining cylinder movement98mm
Locator adjustment range80mm
Overall dimension1300×1200×1300mm
