• Model NO.：QTJ4-25
• Pallet Size：850X550mm
• Motor Brand：Siemens
• Conveyor Belt：6,8m
• Hydraulic：No
• PLC：Yes
• Weight：4t
• Mold：Changeable
• Container：20,40FT
• Free Mold：1 Set
• Free Spare Parts：Yes
• Warranty：13 Months
• Package：Plastic Film
• Leading Time：22 Days
• Transport Package：Plastic Film Package and Container
• Specification：block production line
• Trademark：SHIYUE
• Origin：Shandong
• HS Code：8474802000
• Production Capacity：5000 Sets,Year

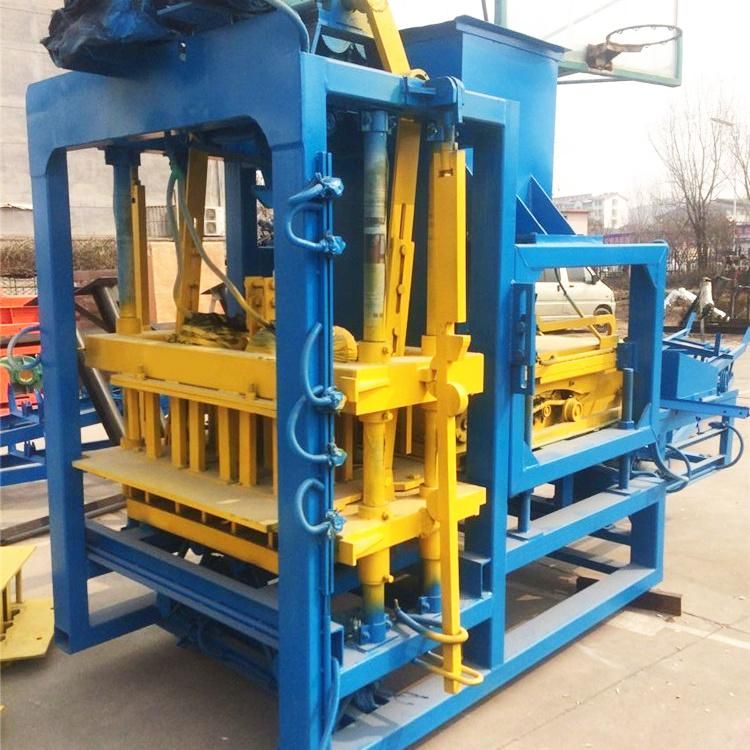

QTJ4-25 Block Machine ParametersOverall size(L*W*H)6400*1500*2700mm Total mass4000kgCycle25S Capacity3600 Pcs/day(8h)Pallet size850*480mmOperating staff

1-2 staff

Power 17kwRated pressure21MpaApplied products

Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.

Raw material

Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material , etc.

Productivity of QTJ4-25 hollow block machineSize(L*W*H)mmPcs/mouldPcs/hourPcs/day(8h)400*250*200mm33602880400*200*200mm44503600400*150*200mm56004800400*100*200mm78406720225*112.5*60mm129607680



FAQQ1: What is the Warranty for the machine?

A1:  For the machine,we have 1 years warranty(except the wearing part ).If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What kinds of payment methods can be accept?A2: Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before deliveryQ3:  Who will pay the delivery cost?

A3: Because block machine need to be delivery by sea or road,so customers will in charge of the

delivery cost.

Q4: what's the motor voltage?

A4: Our local voltage is 380v, 3phase, 50HZ, motor voltage could be customized to fit your local voltage.

Q5: Do you have Operation  Instruction ManualA5: Yes.We will send the Operation Instruction Manual to you after you purchase the machine.
