• Model NO.：M7MI
• Diesel Engine：12HP
• Available Block Size：230*220*115, 230*180*115
• Capacity：360PCS , Hour
• Brick Type：Hydraform Bricks
• Application：Building, Blocks Production Business
• Pressure：16MPa
• Shaping Cycle：20s
• Brick Raw Material：Soil, Cement, Clay
• Molding Space：2
• Diesel Engine Brand：Changchai
• Machine Weight：1400kg
• Overall Size：420*180*177cm
• Brand Name：Chuangyun
• Transport Package：Plywood Box with Iron Angle
• Specification：Electric , diesel
• Trademark：Chuangyun
• Origin：China
• HS Code：8474802000
• Production Capacity：20sets , Month

   Parameters

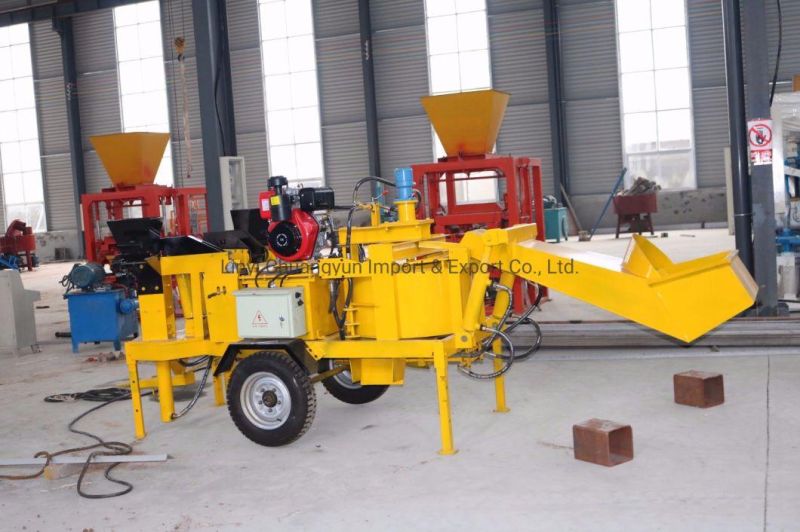

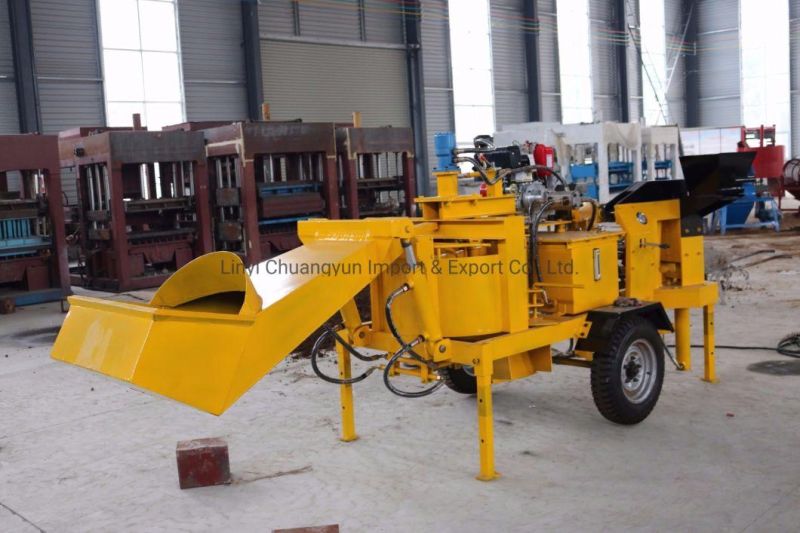

WT2-20M hydraulic interlocking block machine
Overall size	3800(L)×1900(W)×1500(H)mm
Shaping cycle	20 seconds
Power	9.3kw
	12HP
Pressure	16Mpa
Total weight	1200 KGS

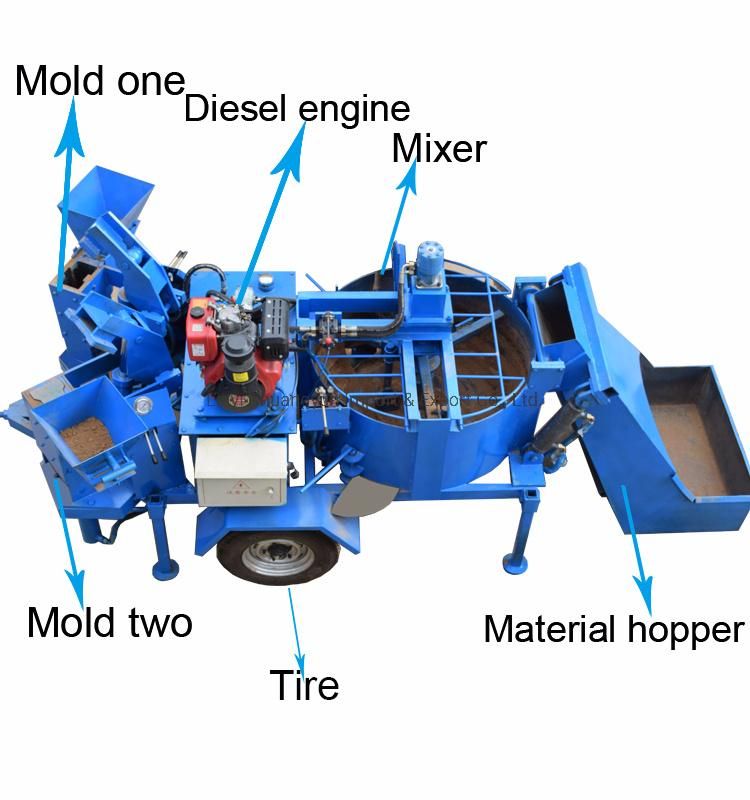

Production step
1.Start diesel
2.Operate the valve of material hopper
3.Lifting material hopper
4.Drop material into the mixer
5.Mixture
6.Materia feeding
7.Press
8.Brick moulding
9.Take brick after finishing





echnical parameters of  m7mi diesel engine clay interlock brick making machine / luhu block machine / moving block machine:


Dimension	2800*1520*1530(mm)
Production	1500~2200 pcs (230~220~150mm) / 8 h
Hyfraulic pressure	12~14 Mpa
Molding way	Hydrostatic
Fuel tank capacity	80L
Raw material	Clay ,soil ,cement ,sand,concrete or other construction dregs

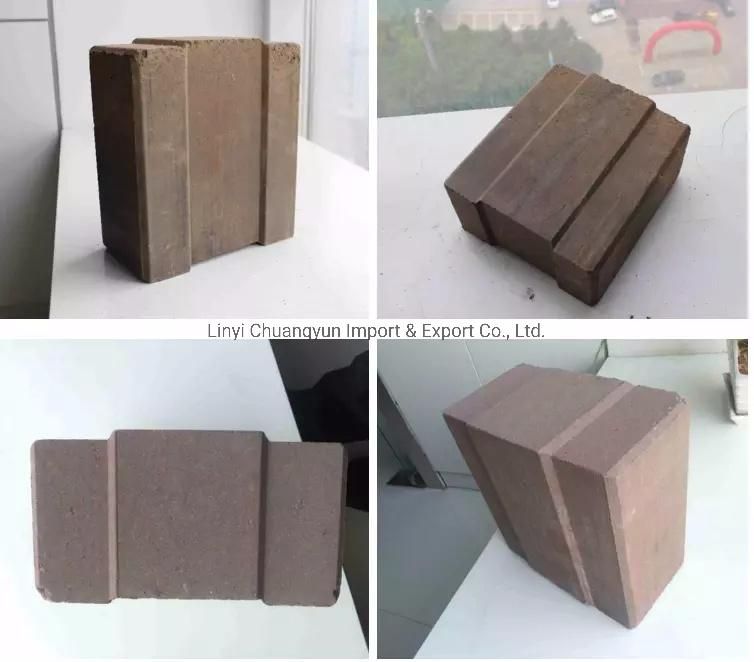

Products	interlocking drystacking block,coping block
Brick size	230~290mm(L)*200~220mm(W)*100~115mm(H)












1. Our brick machine can produce all kinds of interlocking blocks just by changing its mold easily.

2.One host machine can be with one set free mold as present.The extra mold need to be payed for its cost.


3. All of the brick molds can be customized as your request.  These pictures are for reference only,
    Please tell us the size and shape of the mold that you want,we can draw it for you to confirm.
