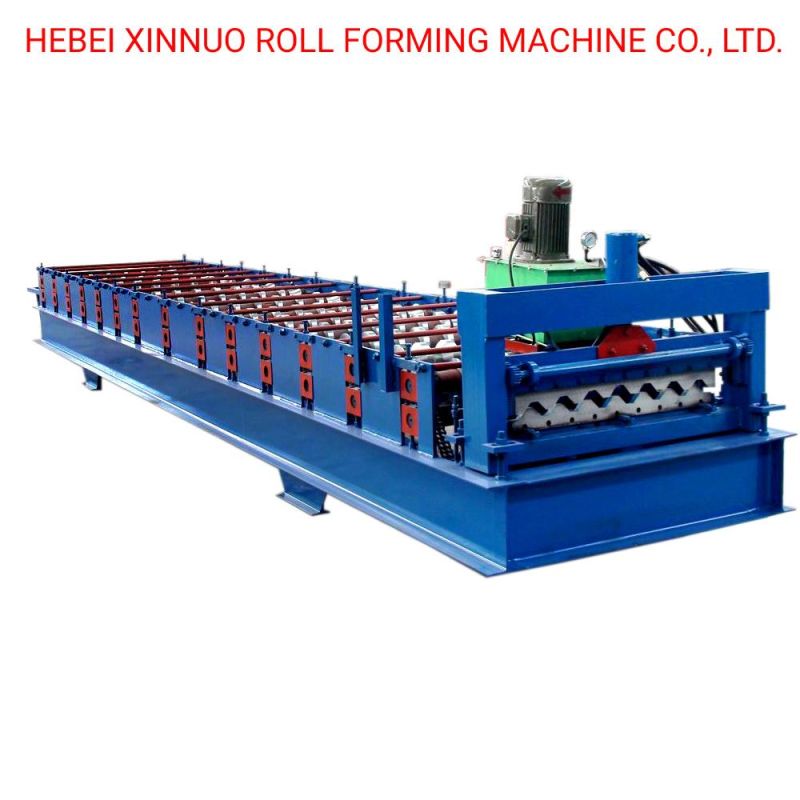

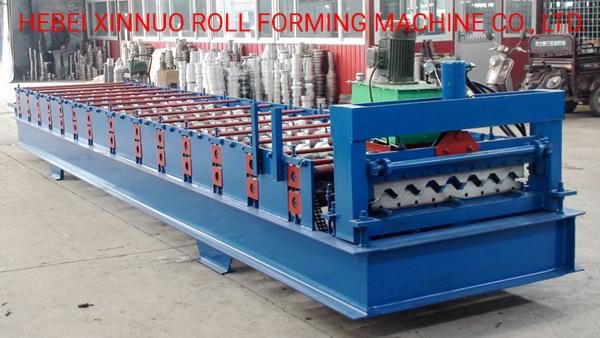

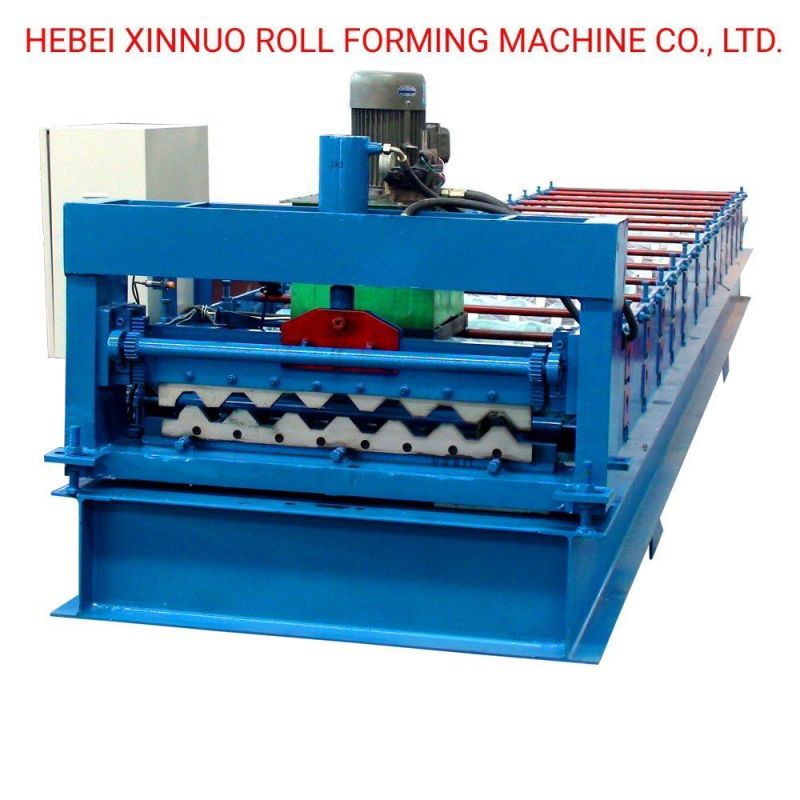

750 Full Automatic Galvalume Sheet Roll Forming Machine Iron Roof Tile Making Equipment

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Machinery

Base Info

  • Model NO.：750 metal roll forming machine
  • Main Frame：350h
  • Color：Can Be Choosed
  • Transport Package：Container
  • Specification：8800*1500*1600mm
  • Trademark：Xinnuo
  • Origin：Hebei
  • HS Code：8455221000
  • Production Capacity：30sets,Month

Description

Basic Info.

Model NO. 750 metal roll forming machine Main Frame 350h Color Can Be Choosed Transport Package Container Specification 8800*1500*1600mm Trademark Xinnuo Origin Hebei HS Code 8455221000 Production Capacity 30sets/Month

Product Description

750 Full Automatic Galvalume Sheet Roll Forming Machine Iron Roof Tile Making Equipment


750 Full Automatic Galvalume Sheet Roll Forming Machine Iron Roof Tile Making Equipment
750 Full Automatic Galvalume Sheet Roll Forming Machine Iron Roof Tile Making Equipment


750 Full Automatic Galvalume Sheet Roll Forming Machine Iron Roof Tile Making Equipment750 Full Automatic Galvalume Sheet Roll Forming Machine Iron Roof Tile Making Equipment750 Full Automatic Galvalume Sheet Roll Forming Machine Iron Roof Tile Making Equipment

Configurations

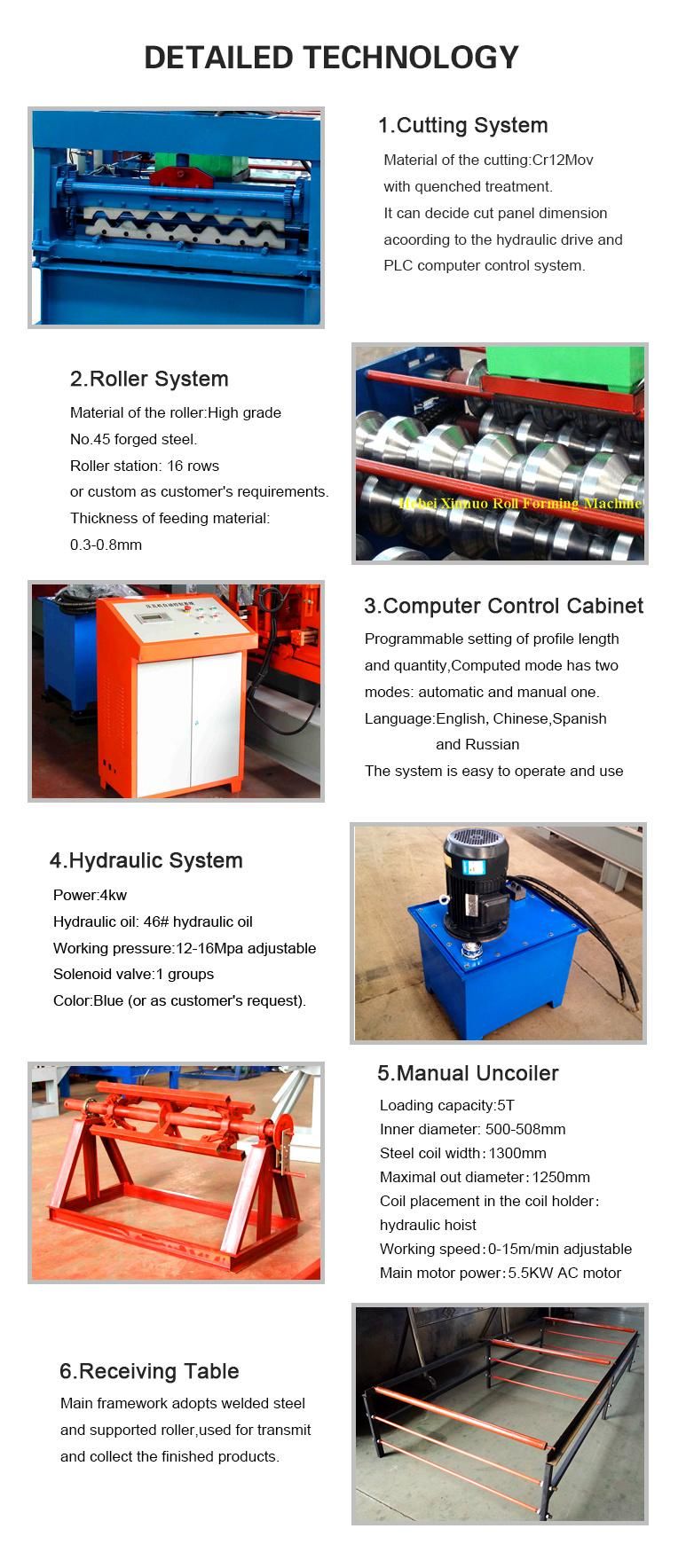

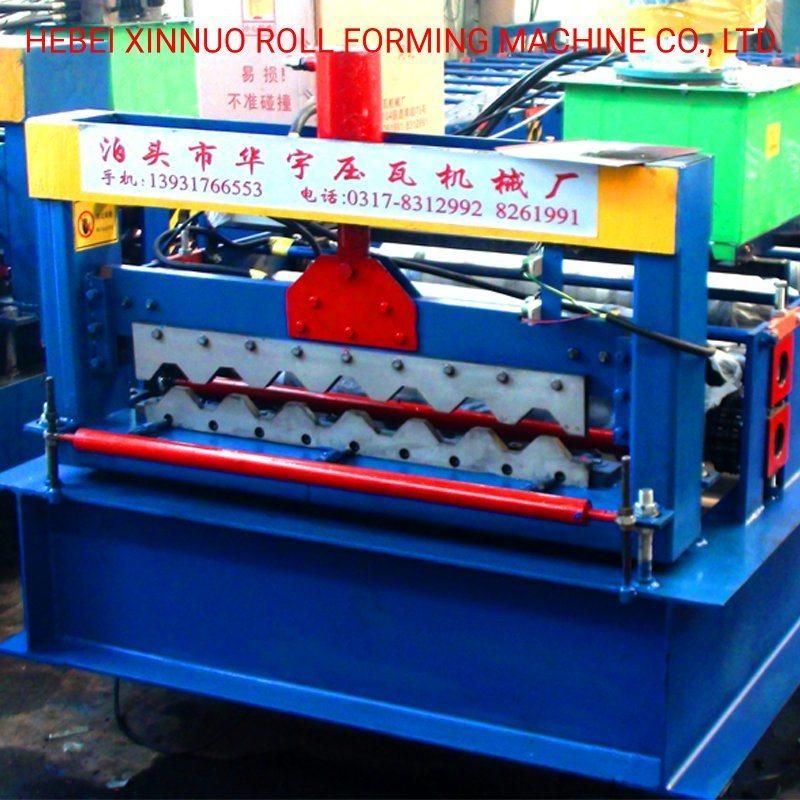

Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Machine Of Roll Forming, Electro-Motor, Glazed Tile Pressing Device, Cutting Device, Hydraulic Station, PLC Control, Supporter Table.

Control System

PLC Delta Inverter

Main Frame

300mm H-Beam

Main Power

4 kw

Pump Power

3 kw

Power Supply

380V, 3-Phase, 60Hz

Forming Speed

8-12m/min

Roll Station

16 stands

Roller Diameter

80mm

Hydraulic Pressure

10-12MPa

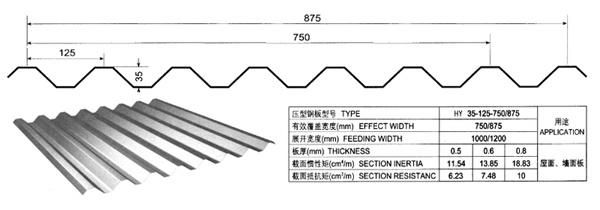

Forming Size

750mm

Feeding Thickness

0.3-0.8mm

Feeding Width

1000mm

Backboard Thickness

12mm

Chain Size

33mm

Cutter Standard

Cr12

Roller Standard

Cr12

Cr-Plating Size

0.05mm

Overall Size

7200×1300×1500mm

Total Weight

4T

All technical parameters can be changed, according to user s need.

Technical parameter:

1. The material of shaft is 45# steel and φ80mm.

2. Frame using 350mm channels.

3. The chain and sprocket wheel by 1 inch.

4. The cycloid planetary reducer: 4#5.5kw

5. Pass: 16 passes

6. The perfect thickness of colored steel: 0.3mm--0.8mm

750 Full Automatic Galvalume Sheet Roll Forming Machine Iron Roof Tile Making Equipment

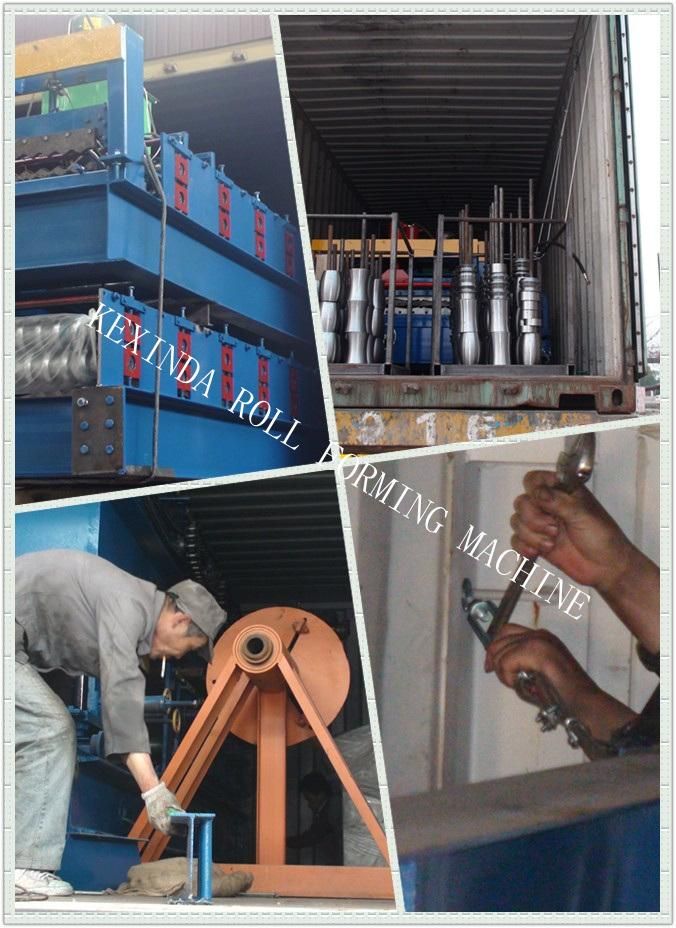

Packaging & Shipping

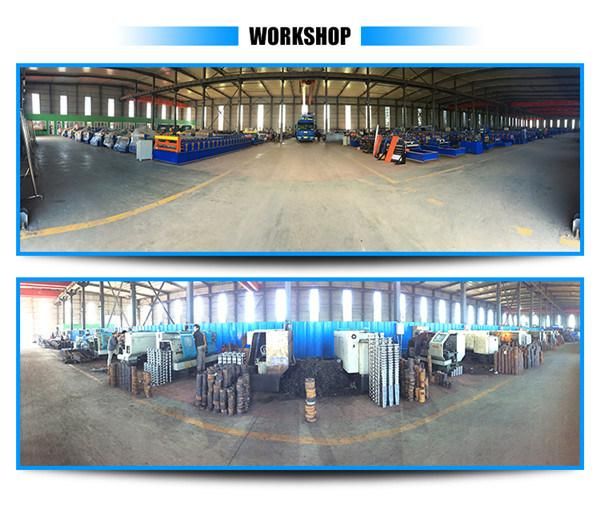

750 Full Automatic Galvalume Sheet Roll Forming Machine Iron Roof Tile Making EquipmentCompany Information




750 Full Automatic Galvalume Sheet Roll Forming Machine Iron Roof Tile Making Equipment
750 Full Automatic Galvalume Sheet Roll Forming Machine Iron Roof Tile Making Equipment







 FAQ



1: How to play order:



Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK



2: How to visit our company:



Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.



Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours), then we can pick up you.







3: When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.



4: If you want to get more pictures or videos of the machines, I can send them to you by Email or Skype
